描述

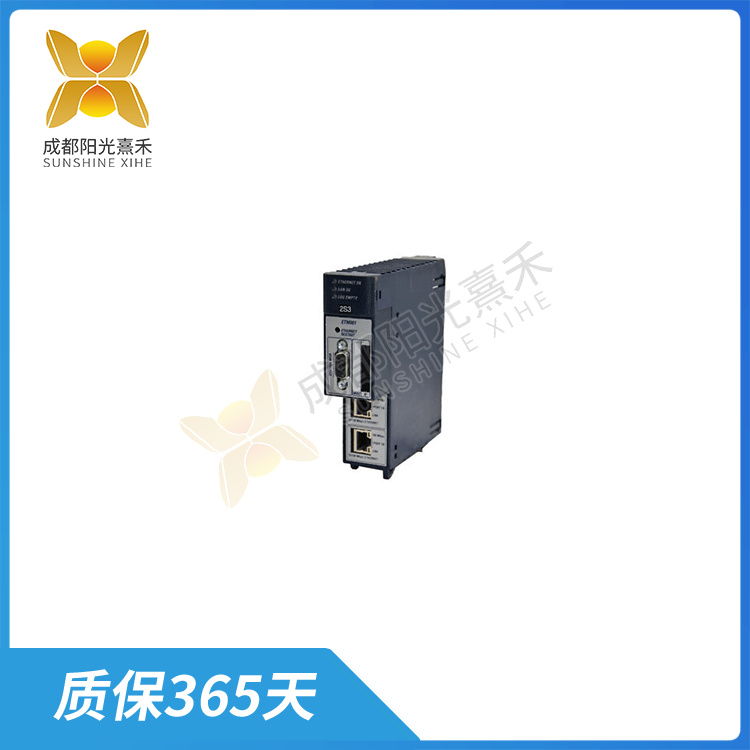

IC695ETM001-DG 以太網接口模塊

IC695ETM001-DG是一款以太網接口模塊，可操作以在以太網網絡和設備之間傳送幀的雙工端口和將雙工端口的接收部分耦合到發送部分的路徑。隊列設置在第一路徑中，評估裝置耦合到隊列，并確定接收的幀是否尋址到以太網接口模塊以及幀類型字段是否包含幀類型。

IC695ETM001-DG可以在不同的模式中操作。在第一模式中，每個接收到的幀都被回送出全雙工端口；在第二模式中，滿足預定評估標準的每個接收到的幀被回送出雙工端口，而那些接收到的不滿足預定評估標準的幀被丟棄。

IC695ETM001-DG的關鍵組成部分包括MAC（Media Access Control）控制器和PHY（Physical Layer）物理層接口。MAC控制器負責數據的處理和傳輸控制，而PHY則負責物理層的信號傳輸和接收。

此外，MII（Media Independent Interface）即介質無關接口，是IEEE-802.3定義的行業標準，是MAC與PHY之間的接口。還有一種精簡MII接口，即RMII（Reduced Media Independant Interface），它節省了一半的數據線，包括TXD、RXD、SYNC三個信號線，共用一個時鐘信號。

具體到產品層面，以太網接口模塊有多種形式，例如網口以太網模塊、串口轉以太網網口模塊等。這些模塊廣泛應用于工業自動化、數據通信和計算機網絡等領域，為設備之間的通信和數據傳輸提供了高效、穩定的解決方案。

在工業自動化領域，IC695ETM001-DG用于連接PLC（可編程邏輯控制器）和其他設備，實現數據的實時傳輸和遠程監控。同時，它也可以與其他通信協議進行轉換，以適應不同的網絡環境和設備要求。

IC695ETM001-DG 以太網接口模塊

The IC695ETM001-DG is an Ethernet interface module that operates to transfer a frame’s duplex port between an Ethernet network and a device and a path that couplings the receiving part of the duplex port to the transmitting part. The queue is set in the first path, evaluates the device coupling to the queue and determines whether the received frame is addressed to the Ethernet interface module and whether the frame type field contains the frame type.

The IC695ETM001-DG can be operated in different modes. In the first mode, each received frame is sent back out of the full-duplex port; In the second mode, every received frame that meets the predetermined evaluation criteria is sent back out of the duplex port, while those received that do not meet the predetermined evaluation criteria are discarded.

The key components of the IC695ETM001-DG include the Media Access Control (MAC) controller and the Physical Layer (PHY) interface. The MAC controller is responsible for data processing and transmission control, while the PHY is responsible for signal transmission and reception at the physical layer.

In addition, the Media Independent Interface (MII) is an industry standard defined by IEEE-802.3, which is the interface between the MAC and the PHY. There is also a simplified MII Interface, RMII (Reduced Media Independant Interface), which saves half of the data lines, including TXD, RXD, SYNC three signal lines, and share a clock signal.

Specific to the product level, the Ethernet interface module has many forms, such as network port Ethernet module, serial port to Ethernet network port module. These modules are widely used in the fields of industrial automation, data communication and computer network, providing efficient and stable solutions for communication and data transmission between devices.

In the field of industrial automation, the IC695ETM001-DG is used to connect PLCS (programmable logic controllers) and other devices to achieve real-time data transmission and remote monitoring. At the same time, it can also be converted with other communication protocols to adapt to different network environments and device requirements.
