描述

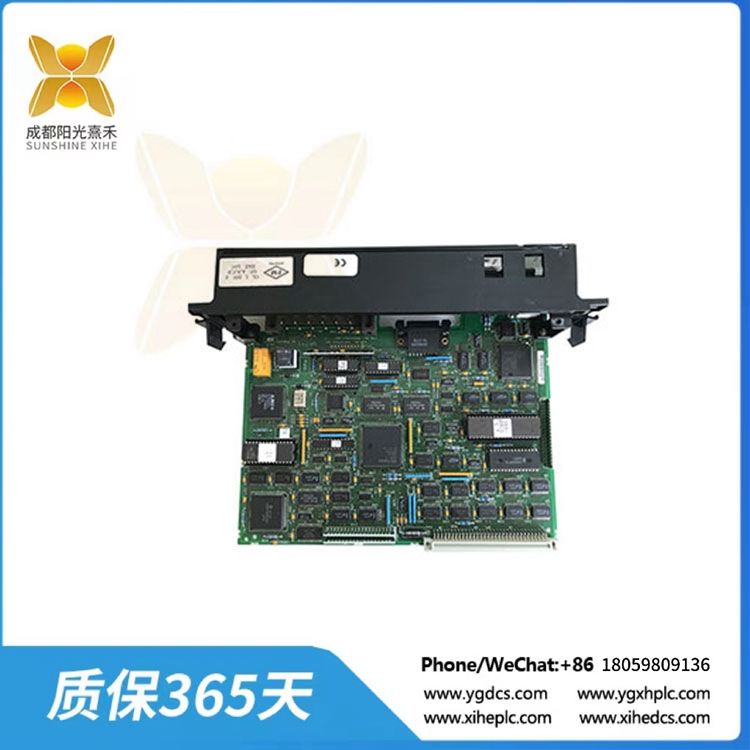

IC697BEM733 Genius 遠程 I/O 掃描儀

IC697BEM733是90-7系列可編程邏輯控制器(PLC)系列的通信接口模塊，原由GE發那科生產，現隸屬于艾默生自動化。該模塊是一個遠程I/O掃描器，主要用于實現分布式I/O體系結構。該模塊允許安裝遠程I/O站，可位于距離主控制器高達7500英尺或2275米的地方。它可以配置為處理離散I/O和模擬I/O的任何組合，最多可達1024個離散輸入，1024個離散輸出，64個模擬輸入字和64個模擬輸出字。與IC697BEM733通信的遠程I/O站可以包含IC697離散模塊、模擬模塊和模擬擴展模塊的實例。總線發送器，總線接收器，PCM和ADS模塊。該模塊建議與IC697模塊一起使用，但是，IC66*模塊，第三方plc和安裝了遠程I/O通信卡的計算機可以與IC697BEM733模塊一起使用。IC697BEM733具有一個15針RS-422/485兼容串行端口和一個(1)9針I(yè)C66*手持監視器端口。它也有專用的IC66*總線終端，支持冗余。該模塊適用于4.0或更高版本的手持顯示器，目錄號為IC660HHM501G;CPU固件版本2.0或更高版本，MS-DOS編程軟件版本3.0或更高版本，總線控制器版本3.0或更高版本如果與IC697 PLC模塊一起使用;CPU版本105或更高版本，MS-DOS編程軟件版本4.02或更高版本，目錄號為IC660CBB902或903的總線控制器必須是1.7或更高版本，如果與IC600 PLC系統一起使用;CPU版本4.0或更高版本，MS-DOS編程軟件版本2.01或更高版本，任何版本總線控制器如果與IC655 PLC一起使用。計算機通信必須安裝PCIM或QBIM卡。

來自GE發那科系統的IC697BEM733系列90-70天才遠程I/O掃描模塊。該模塊安裝在遠程IC697 PLC機架上，提供IC697 I/O模塊與IC66 Bus之間的接口。雖然IC697BEM733模塊是為IC697系統設計的，但它也與所有IC66主機兼容，包括IC660可編程邏輯控制器，IC655可編程邏輯控制器，以及裝有個人計算機接口模塊(PCIM)， q總線接口模塊(QBIM)或其他第三方基于geni的接口的主機。IC697BEM733模塊可以支持多達1024個離散I/O或64個模擬I/O的IC697模擬/離散模塊的混合，以及PCM和ADS設備。它還支持總線發送器，pcm, ADS和模擬擴展模塊

IC697BEM733遠程I/O掃描模塊可以支持與主控制器的最大連接距離為2275米(7500英尺)。IC697BEM733遠程I/O掃描模塊和IC697模塊的完整連接構成了遠程傳輸系統。一個典型的遠程drop由多達8個PLC機架組成，可以是5槽或9槽的IC697機架，通過總線發送器和總線接收模塊連接在一起，最大遠程連接距離為15米(50英尺)。IC697BEM733遠程I/O掃描模塊有3個LED指示燈顯示模塊的運行狀態。它的上后端有一個9針連接器(公，d型)，用于連接IC66天才手持監視器，一個RS-422/RS-485串行端口，用于連接多點通信網絡或串行編程器，以及16個IC66總線終端。

IC697BEM733 Genius 遠程 I/O 掃描儀

The IC697BEM733 is a communication interface module from the Series 90-7 Programmable Logic Controller (PLC) Series, produced formerly by GE Fanuc now under Emerson Automation. This module is specifically a Remote I/O scanner, primarily used to implement distributed I/O architecture. This module allows the installation of remote I/O stations which can be located up to 7500 feet or 2275 meters from the host controller. It can be configured to handle any combination of discrete I/O and analog I/O up to a maximum quantity of 1024 Discrete inputs, 1024 Discrete outputs, 64 Analog input words, and 64 analog output words. A remote I/O station that is being communicated with the IC697BEM733 Remote I/O scanner module may contain instances of IC697 discrete modules, analog modules, and analog expander modules. Bus Transmitter, Bus Receiver, PCM, and ADS modules. This module is recommended for use with IC697 modules however, IC66* modules, 3rd party PLCs, and computers installed with Remote I/O communication cards may be used with the IC697BEM733 module. The IC697BEM733 has One 15-pin RS-422/485 compatible serial port, and One (1) 9-pin IC66* Hand-held Monitor port. It also has dedicated IC66* Bus terminals which supports redundancy. This module is compatible for use with version 4.0 or later Hand Held Monitor with catalog number IC660HHM501G; CPU firmware release 2.0 or later, MS-DOS programming software release 3.0 or later, Bus Controller release 3.0 or later if used with an IC697 PLC modules; CPU rev. 105 or later, MS-DOS programming software release 4.02 or later, Bus Controllers with catalog number IC660CBB902 or 903 must be version 1.7 or later if used with IC600 PLC system; CPU rev. 4.0 or later, MS-DOS programming software release 2.01 or later, any version Bus Controller if used with IC655 PLC. For computer communication, it must be installed with PCIM or QBIM card.

The IC697BEM733 Series 90-70 Genius Remote I/O Scanner Module from the GE Fanuc system. This module is installed on a remote IC697 PLC rack, and it provides an interface between the IC697 I/O modules and the IC66 Bus. Although the IC697BEM733 Module is designed for the IC697 system, it is also compatible with every IC66 host, including the IC660 Programmable Logic Controllers, IC655 Programmable Logic Controllers, and host computers fitted with a Personal Computer Interface Module (PCIM), a Q-bus Interface Module (QBIM), or other third-party GENI-based interfaces. The IC697BEM733 Module can support a mix of IC697 analog/discrete modules with up to 1024 discrete I/O or 64 analog I/O, and PCM and ADS devices. It also supports Bus transmitters, PCMs, ADS, and analog expander modules

The IC697BEM733 Remote I/O Scanner Module can support a maximum connection distance of 2275 meters (7,500 feet) from the host controller. A complete connection of the IC697BEM733 Remote I/O Scanner Module and the IC697 modules make up the remote drop system. A typical remote drop consists of up to 8 PLC racks that can be either 5-slot or 9-slot IC697 racks linked together by a bus transmitter and bus receiver modules over a maximum remote connection distance of 15 meters (50 feet). The IC697BEM733 Remote I/O Scanner Module has 3 LED indicators that show the module’s operation status. It comes with a 9-pin connector (male, D-type) on the upper rear-end for connecting to an IC66 genius handheld monitor, an RS-422/RS-485 serial port for connecting to a multidrop communications network or serial programmer, and 16 IC66 Bus terminals.
