描述

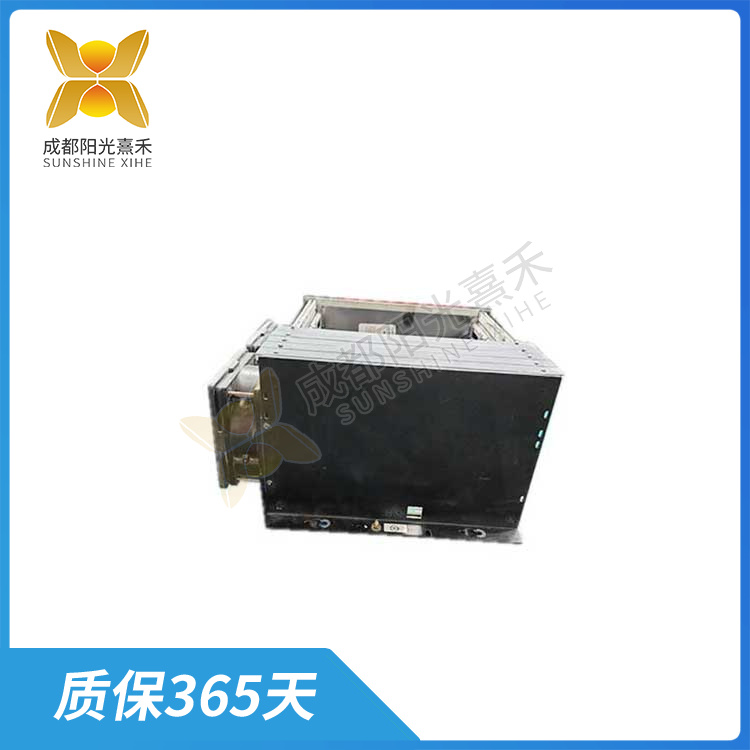

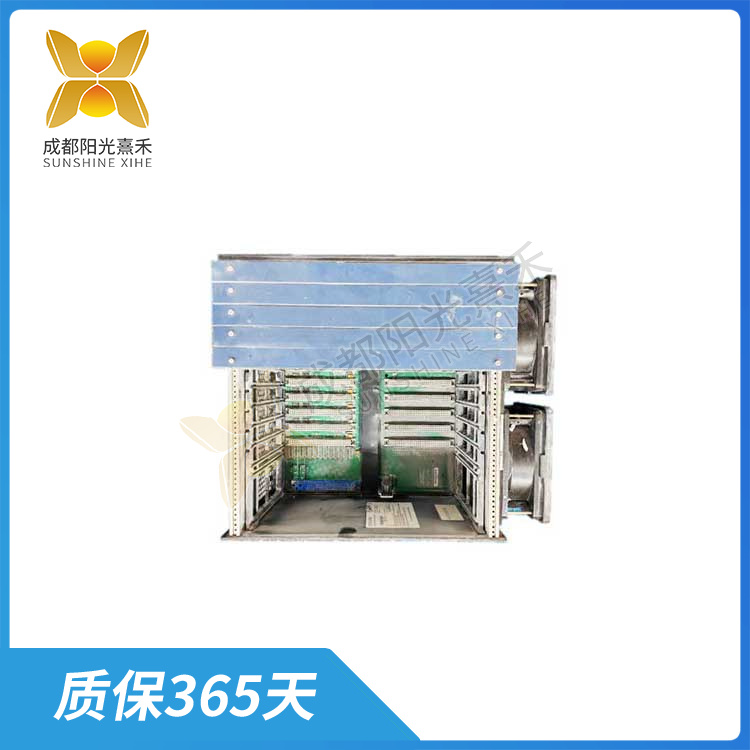

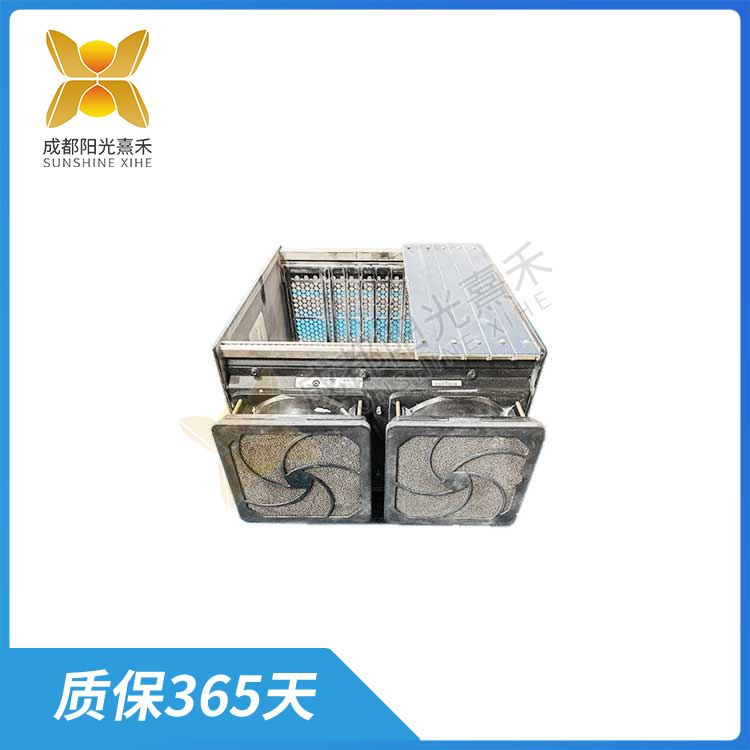

IC698CHS009A RX3i PACSystems的5槽位機架

IC698CHS009A是一款運動控制器，屬于Rockwell Automation（羅克韋爾自動化）公司的Allen-Bradley系列。這款運動控制器專為復雜的運動控制應用而設計，支持多種運動模式和功能。

以下是關于IC698CHS009A的主要功能和特性：

1. 高級運動控制：支持多種運動模式，包括3級矢量點對點移動、二維和三維幾何形狀、電子多軸構造等。此外，它還支持非笛卡爾運動結構，如六角足、三角洲機器人、斯卡機器人等。
2. 路徑和樣條生成：能夠生成復雜的八維路徑和樣條，這對于需要高精度、高動態響應的運動控制應用非常重要。
3. 多軸控制：支持多軸主控/從動配置，使得多個軸可以協同工作，實現更復雜的運動軌跡和控制邏輯。
4. 虛擬PLC支持：該運動控制器支持在高速虛擬PLC上運行五種標準IEC-61131-3語言，使得熟悉這種環境的程序員能夠方便地開發PLC程序。此外，它還支持PLC和acspl+環境之間的完全透明通信，使用戶能夠利用兩種語言的優勢，快速、高效地開發整個機器控制應用程序。

IC698CHS009A運動控制器通常應用于需要高精度、高動態響應和復雜運動控制的工業自動化應用中，如機器人、機床、包裝機械等。

IC698CHS009A RX3i PACSystems的5槽位機架

The IC698CHS009A is a motion controller from the Allen-Bradley family of Rockwell Automation. Designed for complex motion control applications, this motion controller supports multiple motion modes and functions.

The following are the main functions and features of the IC698CHS009A:

Advanced motion control: Supports multiple motion modes, including 3-level vector point-to-point movement, 2D and 3D geometry, electronic multi-axis construction, and more. In addition, it supports non-Cartesian motion structures such as hexagonal feet, delta robots, Ska robots, etc.

Path and spline generation: The ability to generate complex eight-dimensional paths and splines is important for motion control applications that require high precision and dynamic response.

Multi-axis control: Support multi-axis master/slave configuration, so that multiple axes can work together to achieve more complex motion trajectories and control logic.

Virtual PLC support: The motion controller supports running five standard IEC-61131-3 languages on high-speed virtual PLCS, making it easy for programmers familiar with this environment to develop PLC programs. In addition, it supports fully transparent communication between the PLC and acspl+ environment, enabling users to take advantage of both languages to develop entire machine control applications quickly and efficiently.

The IC698CHS009A motion controller is commonly used in industrial automation applications that require high precision, high dynamic response and complex motion control, such as robots, machine tools, packaging machinery, etc.
