描述

IS200BPVCG1BR1 背板ASM接口

產品描述
IS200BPVCG1BR1是通用電氣Mark VI系列中使用的PCB組件。Mark VI系列是后來的Speedtronic系統之一。GE花了30多年的時間研究和開發Speedtronic系統，為重型蒸汽和燃氣輪機系統的管理創造了一個可靠、可擴展、完整的解決方案。Mark VI使用最新的技術和集成的專有軟件來創建最佳的渦輪機管理系統。這包括一個基于pc的HMI(操作界面)，它運行通用電氣的simplicity圖形等軟件。

IS200BPVCG1BR1是一款背板，設計用于接受和支持多板的機架系統。該板的后半部分有21個母背板連接器。當放置在機架系統，這部分板將被包圍的高墻，將支持和鎖定連接板到位。電路板的另一部分，它持有輸入/輸出連接器，被設計為暴露在機架系統之外。這使得操作員可以輕松地將帶狀連接器及其電纜連接到電路板。有39個I/O連接器，允許數據從連接到背板的板之間傳輸。IS200BPVCG1BR1還包括14個插接連接器和6個電阻網絡陣列。在電路板的底部還有另外30個元件。它們被標記為L1到L30。電路板上標有制造商標志和板號。

您的訂單將由我們的倉庫團隊精心包裝，以便運送到您的地點。這將包括使用材料來保護電路板免受靜電放電，如防靜電袋或套。

IS200BPVCG1BR1 背板ASM接口

Product Description
The IS200BPVCG1BR1 is a PCB component used in the Mark VI series from GE. The Mark VI series is one of the later Speedtronic systems. GE has spent over three decades researching and developing the Speedtronic system to create a reliable, scalable, complete solution to the management of heavy-duty steam and gas turbine systems. ?The Mark VI uses more recent technology and integrated proprietary software to create an optimal turbine management system. This includes a PC-based HMI (operator interface) that runs software like General Electric’s CIMPLICITY graphics.

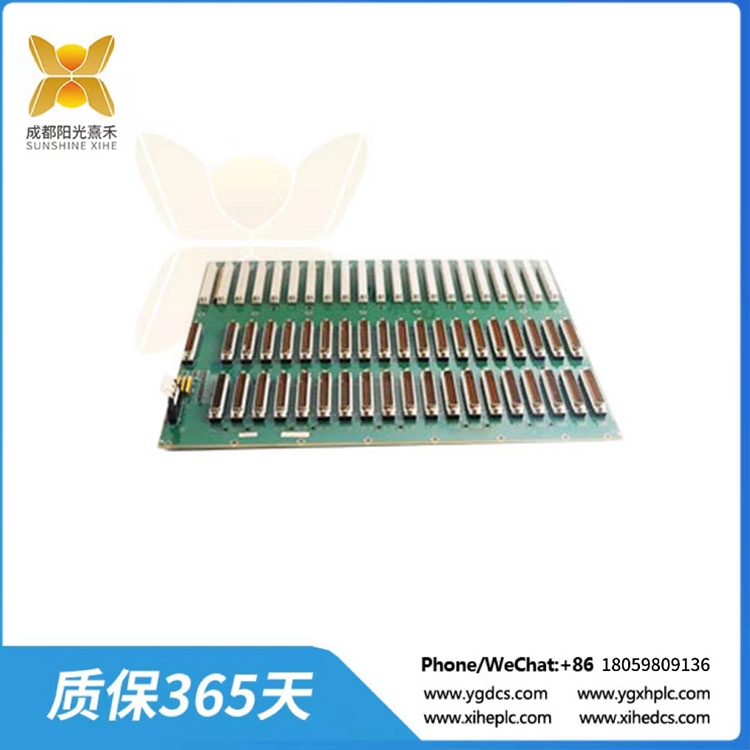

The IS200BPVCG1BR1 is a backplane board that has been designed to fit into a rack system that accepts and supports multiple boards. ?The rear half of this board is populated with twenty-one female backplane connectors. When placed in the rack system, this part of the board will be surrounded by tall walls that will support and lock connecting boards into place. ?The other part of the board, which holds Input/Output connectors, is designed to be left exposed outside the rack system. This allows the operator to easily connect ribbon connectors and their cabling to the board. There are thirty-nine I/O connectors, which allow data transfer from and to the boards attached to the backplanes. ??The IS200BPVCG1BR1 also includes fourteen stab-on connectors and six resistor network arrays. There are an additional thirty components on the bottom side of the board. These are labeled L1 through L30. The board is marked with the manufacturer logo and with the board number.

Your order will be carefully packed by our warehouse team for shipment to your location. ?This will include the use of materials to protect the board from static discharge, such as an anti-static bag or sleeve.
