描述

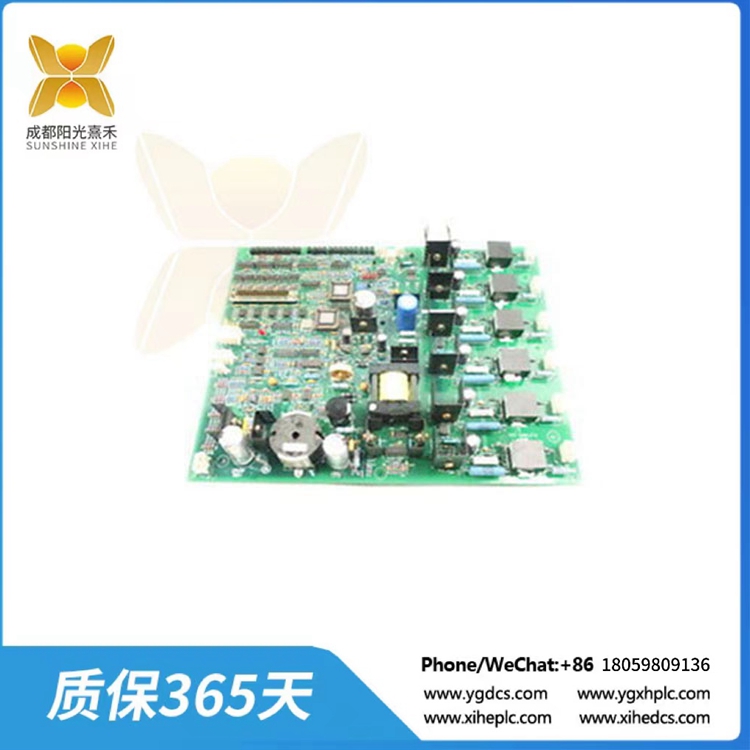

IS200EGPAG1BEC 印刷電路板

IS200EGPAG1BEC印刷電路板最初由通用電氣的殼公司GE工業系統制造;該公司負責制造所有EX2100勵磁控制系統系列產品。該PCB可以更明確地定義為激勵柵脈沖放大器，并通過其包含三個重要的產品修訂進行修改。

硬件須知和規格

在檢查對該器件作為門脈沖放大器的功能很重要的各種硬件組件之前，重要的是要考慮產品本身的實際功能。這個EGPA板被創建為EX2100系列驅動組件的控制和電源橋之間的一種接口。這個IS200EGPAG1BEC板收集兼容的ESEL板的各種門控命令，以產生柵極發射脈沖歸因于六個總硅控整流器或可控硅。IS200EGPAG1BE激勵門脈沖放大器在其接口上具有額外的功能，用于橋式氣流監測，溫度監測和電流傳導反饋。雖然許多EX2100勵磁控制系統系列勵磁器利用一系列Klixon開關進行溫度控制和報警，但較新的EX2100勵磁器型號可能包含RTD。兩個總開關連接到EGPA板上，可能需要對現有的橋進行改造。這兩個開關都被歸類為熱開關，一個在170華氏度的報警級別打開，而另一個在190華氏度的跳閘級別打開。當這兩個開關中的任何一個打開時，會產生電橋過溫警報，可能會中斷正常的EX2100驅動器組裝活動。在EGPA板組件中的兩個開關都被激活的情況下，IS200EGPAG1BEC PCB產生故障和故障跳閘。

該IS200EGPAG1BEC印刷電路板的許多其他硬件規格可根據其個性化的IS200EGPAG1BEC產品編號進行細分，從而立即產生IS200系列標簽。此標簽包含此egpa縮寫PCB的雙重命名責任;詳細說明該產品為國產PCB，沒有特殊的組裝類型。IS200EGPAG1BEC產品編號中EGPA功能首字母縮略詞的一個實例為G1系列分組標簽;它具有IS200EGPAG1BEC板的雙重命名功能，類似于IS200系列標簽。這個G1標簽顯示EGPA板是一個正常涂層的PCB，具有一組EX2100系列分組。該產品零件號中最后尾隨的“BEC”數字揭示了其三次重大修訂歷史。

IS200EGPAG1BEC 印刷電路板

The IS200EGPAG1BEC printed circuit board was originally manufactured by General Electric shell company GE Industrial Systems; a company responsible for the manufacture of all of the EX2100 Excitation Control Systems Series products. This PCB can be more explicitly defined as an Exciter Gate Pulse Amplifier, and is modified through its inclusion of three significant product revisions.

Hardware Tips and Specifications

Before examining the various hardware components important to this devices’s functionality as a Gate Pulse Amplifier, it is important to consider the actual functionality of the product itself. This EGPA board was created as a sort of interface that acts between the EX2100 Series drive assembly’s control and its Power Bridge. This IS200EGPAG1BEC board collects the compatible ESEL board’s various gating commands in order to generate gate firing pulses attributed to six total Silicon Controlled Rectifiers or SCRs. The IS200EGPAG1BE Exciter Gate Pulse Amplifier features additional functionality in its interfacing for bridge airflow monitoring, temperature monitoring, and current conduction feedback. While many EX2100 Excitation Control System Series Exciters utilize a series of Klixon switches for their temperature control and alarm generation, newer EX2100 exciter models may incorporate a RTD instead. Two total switches are wired to the EGPA board, and may require retrofitting to their existing bridges. Both of these switches are classified as thermal switches, and one opens up at the alarm level temperature rating of 170 degrees fahrenheit, while the other opens at the trip level of 190 degrees fahrenheit. When either of these two mentioned switches are opened, a bridge over temperature alarm is generated that may interrupt normative EX2100 drive assembly activity. In the case that both switches in the EGPA board assembly were to be activated, a fault and fault trip are generated for the IS200EGPAG1BEC PCB.

A number of additional hardware specifications for this IS200EGPAG1BEC printed circuit board are available upon a breakdown of its individualized IS200EGPAG1BEC product number, which immediately yields the IS200 Series Tag. This tag is included with dual naming responsibilities for this EGPA-abbreviated PCB; detailing the product as a domestically manufactured PCB with no special assembly type. An instance of the EGPA functional acronym in the IS200EGPAG1BEC product number is shrugged for the G1 series grouping tag; which has dual naming functionality for the IS200EGPAG1BEC board similarly to the IS200 series tag. This G1 tag reveals the EGPA board to be a normally-coated PCB with a group one EX2100 Series grouping. The final trailing “BEC” digits in this product’s part number reveal its three-fold significant revision history.
