描述

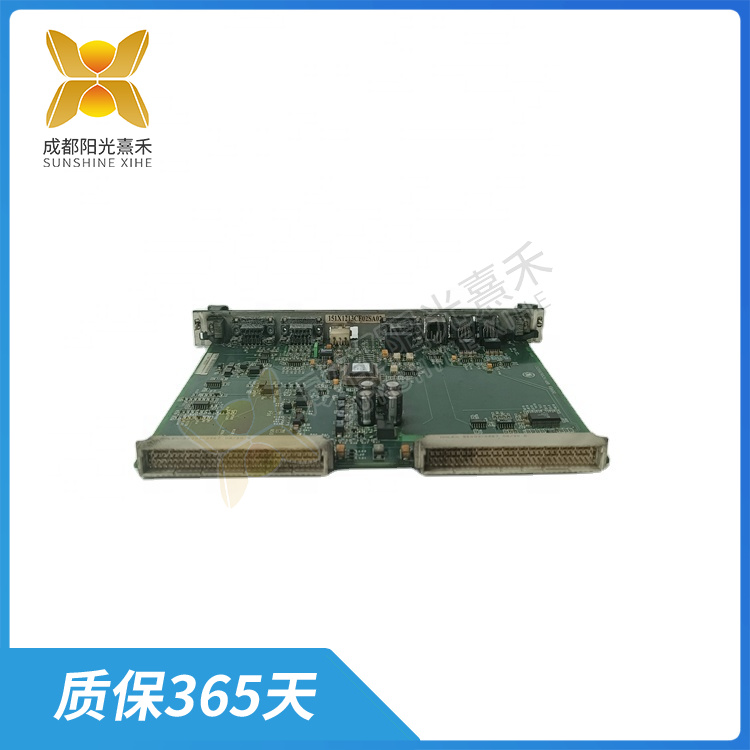

IS200EROCH1ABB 人機界面模塊是操作人員與控制系統進行交互的接口

燃?xì)廨啓C(jī)控制系統的模塊IS200EROCH1ABB通常包括以下幾個部分：

控制器模塊：這是燃?xì)廨啓C(jī)控制系統的核心部分，負責接收和解析指令，并控制燃?xì)廨啓C(jī)的運行狀態。控制器模塊通常包括微處理器、存儲器、輸入輸出接口等部分。

傳感器模塊：傳感器模塊用于檢測燃?xì)廨啓C(jī)運行過程中的各種參數，如溫度、壓力、流量、轉速等，并將這些參數轉換為電信號或數字信號，輸送到控制器模塊中進行處理。

執行器模塊：執行器模塊是控制系統中的輸出部分，根據控制器模塊的指令，控制燃?xì)廨啓C(jī)的各種動作，如啟動、停止、加速、減速等。執行器模塊通常包括電動閥、電磁閥等。

人機界面模塊：人機界面模塊是操作人員與控制系統進行交互的接口，通常包括顯示屏、鍵盤、鼠標等設備。通過人機界面模塊，操作人員可以監控燃?xì)廨啓C(jī)的運行狀態，設置運行參數，以及進行故障診斷等操作。

通訊模塊：通訊模塊用于實現控制系統與其他設備或系統的數據交換，如遠程監控、數據記錄、與其他控制器進行協同控制等。通訊模塊通常支持多種通訊協議，如串口通訊、以太網通訊等。

總之，IS200EROCH1ABB 燃?xì)廨啓C(jī)控制系統的模塊根據不同的功能和應用場景會有所不同，但總體上來說，每個模塊都會為實現燃?xì)廨啓C(jī)的安全、穩定、高效運行提供支持

IS200EROCH1ABB 人機界面模塊是操作人員與控制系統進行交互的接口

The gas turbine control system module IS200EROCH1ABB usually consists of the following parts:

Controller module: This is the core part of the gas turbine control system, responsible for receiving and analyzing instructions, and controlling the operating status of the gas turbine. The controller module usually includes microprocessor, memory, input/output interface and so on.

Sensor module: The sensor module is used to detect various parameters during the operation of the gas turbine, such as temperature, pressure, flow rate, speed, etc., and convert these parameters into electrical or digital signals, which are transmitted to the controller module for processing.

Actuator module: The actuator module is the output part of the control system, according to the instructions of the controller module, control the various actions of the gas turbine, such as starting, stopping, accelerating, decelerating, etc. The actuator module usually includes electric valve, solenoid valve, etc.

Man-machine interface module: Man-machine interface module is the interface for the operator to interact with the control system, usually including the display screen, keyboard, mouse and other devices. Through the HMI module, the operator can monitor the operating status of the gas turbine, set operating parameters, and perform fault diagnosis and other operations.

Communication module: The communication module is used to realize the data exchange between the control system and other devices or systems, such as remote monitoring, data recording, and collaborative control with other controllers. Communication modules usually support a variety of communication protocols, such as serial communication, Ethernet communication and so on.

In summary, the modules of the IS200EROCH1ABB gas turbine control system will vary according to different functions and application scenarios, but in general, each module will support the safe, stable and efficient operation of the gas turbine.
