描述

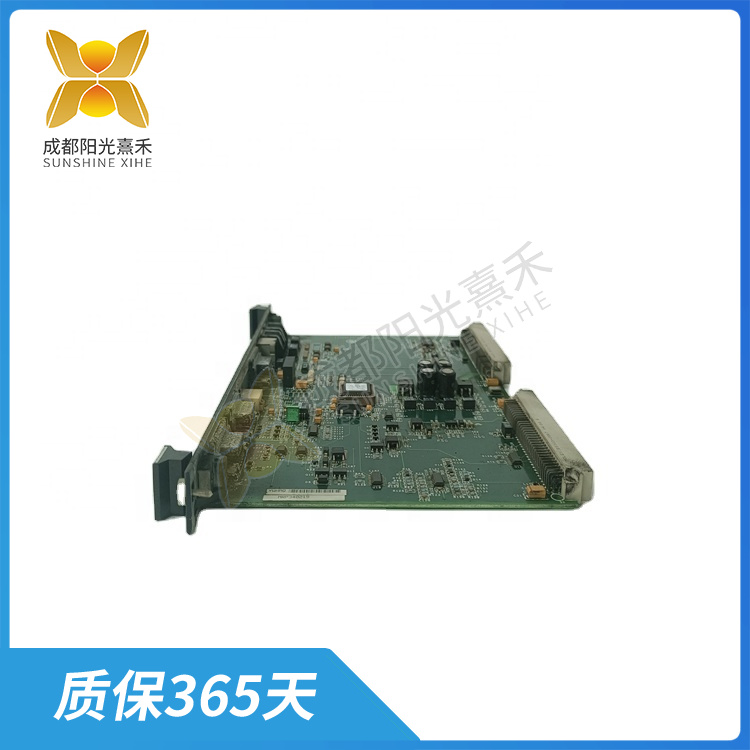

IS200ESYSH3A 勵磁控制系統的硬件組成主要包括勵磁調節器

勵磁控制系統是由發電機機端參數、勵磁調節單元、整流單元形成一個反饋控制系統。該系統不僅調節控制發電機的輸出電壓，而且對發電機的無功功率、功率因數和勵磁電流等重要參數進行調節，以確保電力系統在正常運行的情況下，發電機機端高壓側電壓與整個電網電壓維持水平，并對發電機之間的無功負荷進行合理調配，以提高電力系統的穩定性。

勵磁控制系統的硬件組成主要包括勵磁調節器、功率整流器和滅磁系統。其中，IS200ESYSH3A勵磁調節器負責控制勵磁電流的大小，功率整流器則將交流電轉換為直流電供給勵磁繞組，而滅磁系統則用于在發電機停機時迅速切斷勵磁電流。

此外，勵磁控制系統還有多種功能，如自動電壓調節方式、勵磁電流調節方式、恒功率因數或恒無功運行方式等，以滿足不同的運行需求。同時，為了保證電網及機組安全穩定運行，勵磁系統還要附加必要的限制及保護功能，如過勵限制、欠勵限制、V/Hz限制等。

總之，IS200ESYSH3A勵磁控制系統是電力系統中的重要組成部分，對于提高電力系統的穩定性和發電機的運行效率具有重要的作用。隨著電力電子技術的發展，勵磁控制系統的性能和可靠性得到了不斷提高，為電力系統的安全穩定運行提供了有力保障。

IS200ESYSH3A 勵磁控制系統的硬件組成主要包括勵磁調節器

Excitation control system is a feedback control system formed by generator end parameters, excitation regulation unit and rectifier unit. The system not only regulates the output voltage of the generator, but also regulates the reactive power, power factor and excitation current of the generator and other important parameters to ensure that the power system under normal operation, the high voltage side voltage of the generator and the voltage of the entire grid are maintained at the same level, and the reactive load between the generators is rationally allocated to improve the stability of the power system.

The hardware components of excitation control system mainly include excitation regulator, power rectifier and degaussing system. Among them, the IS200ESYSH3A excitation regulator is responsible for controlling the size of the excitation current, the power rectifier converts alternating current to direct current to supply the excitation windings, and the deexcitation system is used to quickly cut off the excitation current when the generator is shut down.

In addition, the excitation control system has a variety of functions, such as automatic voltage regulation mode, excitation current regulation mode, constant power factor or constant reactive power operation mode, to meet different operating requirements. At the same time, in order to ensure the safe and stable operation of the power grid and the unit, the excitation system should also attach the necessary restrictions and protection functions, such as overexcitation limit, underexcitation limit, V/Hz limit.

In short, the IS200ESYSH3A excitation control system is an important part of the power system, which plays an important role in improving the stability of the power system and the operation efficiency of the generator. With the development of power electronic technology, the performance and reliability of excitation control system have been continuously improved, which provides a strong guarantee for the safe and stable operation of power system.
