描述

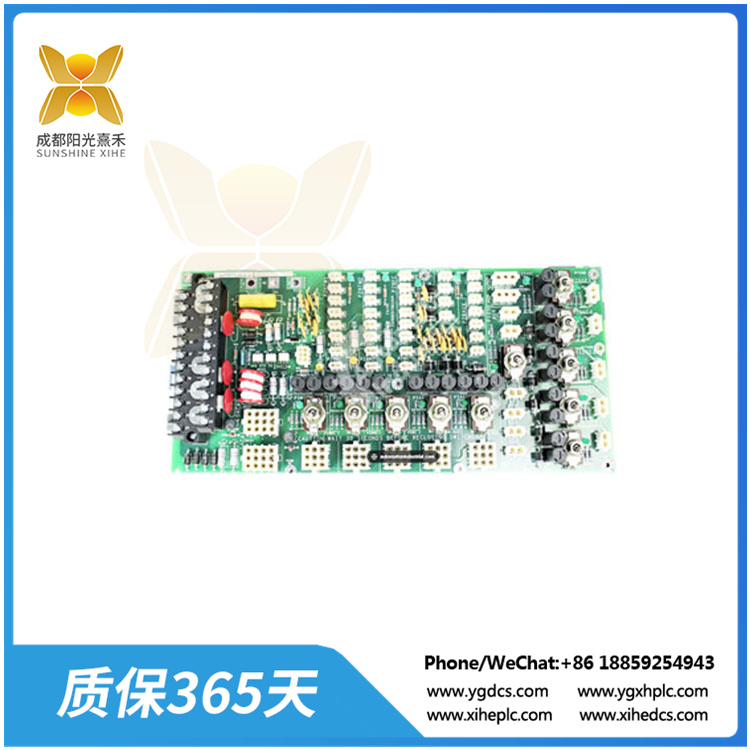

IS200EXMDG1A 激勵器MD反饋板

型號: IS200EXMDG1A
制造商:通用電氣
產品類型:激勵器MD反饋板
系列:EX2100e
Augat連接器:2
金屬氧化物壓敏電阻
供貨情況:有貨
制造國家:美國(USA)

功能描述
IS200EXMDG1A是GE公司開發的激振器MD反饋板。它是EX2100e勵磁系統的一部分。該板的功能是作為MD反饋板，并具有多個連接器貼在其表面。這種電路板已經過時了，因?yàn)橥ㄓ秒姎夤疽呀?jīng)不再生產它了。

單板上的連接器
該板配備了各種連接器，每個連接器在EX2100系列中都有不同的集成用途:

Augat連接器
三乘三連接器:由九個引腳組成的網格，為系統內的特定和定義的功能而設計。
二乘三連接器:具有六個引腳，該連接器在建立板內連接方面發揮獨特作用。
垂直引腳連接器
這些連接器有不同的尺寸，在與系統架構內的其他組件進行接口時提供了靈活性和多功能性。

直角的連接器
專為直角精確連接而設計的專用連接器，優化了電路板布局內的空間利用率。
母連接點和公引腳
該板包含兩個母端連接點和兩個公端引腳，增強了兼容性，并能夠與其他系統組件有效連接。
集成組件

該板集成了對其功能至關重要的基本組件:
金屬氧化物壓敏電阻(MOVs):兩個MOVs作為浪涌保護裝置，保護設備免受潛在電壓尖峰的影響。
繼電器:這個關鍵部件在開關和控制電路板上的電路中起著關鍵作用，確保運行可靠性。
勵磁機軟件
激勵器軟件直接從工具箱中進行配置和加載，在那里它可以在控制器中找到它的家。該軟件通過相互連接的控制塊在工具箱屏幕上直觀地描繪，說明了信號流。
數據表上的控制方案圖提供了勵磁器控制系統的簡化描述，突出了其主要控制功能。在正常運行期間，發電機磁場和定子電流和電壓都被精心測量并輸入控制系統。在正常情況下，交流穩壓器是選擇的操作模式。

IS200EXMDG1A 激勵器MD反饋板

Part No. : IS200EXMDG1A
Manufacturer: General Electric
Product Type: Exciter MD Feedback Board
Series: EX2100e
Augat Connectors: 2
Metal Oxide Varistors: 2
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description
IS200EXMDG1A is a Exciter MD Feedback Board developed by GE. It is a part of EX2100e excitation system. The board functions as an MD feedback board and features multiple connectors affixed to its surface. The board is obsolete as it is no longer in production by General Electric.

Connectors on the Board
The board is equipped with various connectors, each serving distinct integration purposes within the EX2100 series:

Augat Connectors
Three-by-Three Connector: Comprising a grid of nine pins, designed for specific and defined functionalities within the system.
Two-by-Three Connector: Featuring six pins, this connector serves a unique role in establishing connectivity within the board.
Vertical Pin Connectors
These connectors come in different sizes, offering flexibility and versatility in interfacing with other components within the system architecture.

Right-Angled Connector
A specialized connector designed for precise connections at right angles, optimizing space utilization within the board’s layout.
Female Connection Points and Male Pins
The board incorporates two female connection points and two male pins, enhancing compatibility and enabling effective connectivity with other system components.
Integrated Components

The board integrates essential components vital for its functionality:
Metal Oxide Varistors (MOVs): Two MOVs serve as surge protection devices, safeguarding the equipment from potential voltage spikes.
Relay: This critical component plays a pivotal role in switching and controlling electrical circuits on the board, ensuring operational reliability.
Exciter Software
The exciter software undergoes configuration and loading directly from the toolbox, where it finds its home within the controllers. This software is visually depicted on the toolbox screen through interconnected control blocks, illustrating the signal flow.
The Control Scheme Figure on datasheet provides a simplified portrayal of the exciter control system, highlighting its principal control functions. During regular operation, both the generator field and stator currents and voltages are meticulously measured and fed into the control system. Under normal circumstances, the AC regulator is the selected mode of operation.
