描述

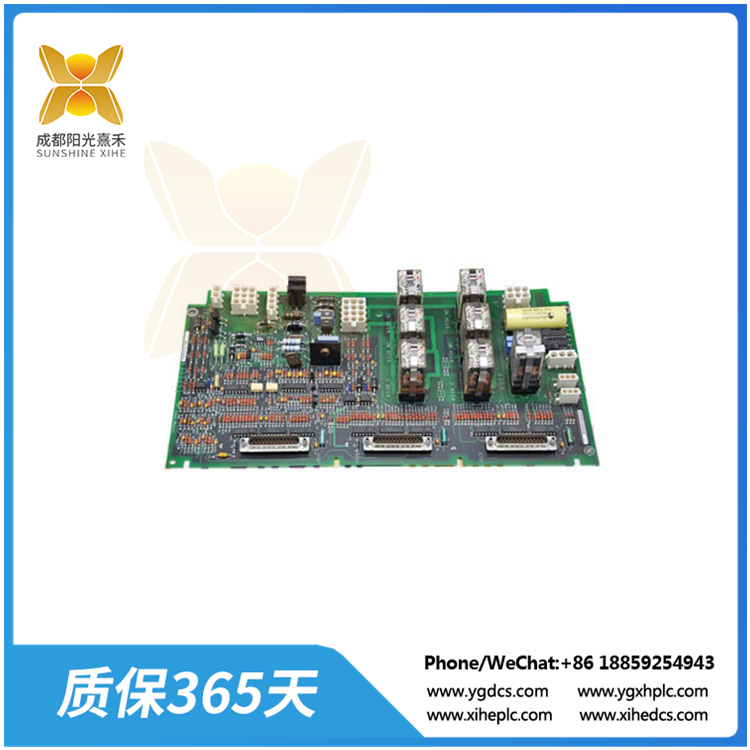

IS200EXTBG4A 輸入/輸出端子板

產品描述
IS200EXTBG4A型號是EXTB系列的第四款也是最后一款。這個特定的EXTB模型是一個復雜的控制，在斷路器模式下使用，這個模型也是可以與41T跳閘繼電器一起使用的四個模型中的第二個。該型號的主要功能是處理所有保護功能以及現場閃爍功能。關于模型的電源，它將從M1或M2控制器發送，通常這個電源是冗余的，在它被接收后，它將繼續被發送到位于控制機架內的連接的EMIO板。

IS200EXTBG4A型號是IS200EXTB型號的最后一個輸入/輸出勵磁端子板，通常這些型號與EDEX型號一起使用，以幫助解除勵磁。該模型也用于控制場電路中的場斷路器。

IS200EXTBG4A在市場上并不廣泛可用，但位于北卡羅來納州羅利的AX控制公司可以盡其所能，不僅可以幫助您找到此模型，還可以幫助您修復模型，如果需要的話。

關于IS200EXTBG4A的常見問題

IS200EXTBG4A型號是否也使用閉合繼電器41?
是的，IS200EXTBG4A型號與行程繼電器41T一起使用閉合繼電器41。

這個模型與可以比較的EXHSG4模型有什么不同?
exbg4和EXHS4型號沒有區別。它們都以單一冗余模式運行，都控制斷路器場電路，都使用跳閘和閉合繼電器。

從IS200EXTBG4A提供給三個觸點輸入的電源是什么?
41a、53A、53B輸入電源為70vdc。

M1和M2電源的狀態信號發送到哪里?
產生的信號被發送到控制機架中的EMIO板。

IS200EXTBG4A 輸入/輸出端子板

Product Description
The IS200EXTBG4A model is the fourth and final model of the EXTB series. This specific EXTB model is a complex control and is used in breaker mode, this model is also the second of the four models that can be used with a 41T trip relay. The primary function of this model is to handle all of the protection functions as well as field flashing functions. In relation to the power supply of the model, it will be sent from the M1 or M2 controllers, typically this supply is redundant, and after it has been received it will proceed to be sent to the connected EMIO board which is located in the control rack.

The IS200EXTBG4A model is the final input/output exciter terminal board out of the IS200EXTB models, typically these models are used with the EDEX model to help with the firing of de-excitation. This model is also used to control field breakers within field circuits.

The IS200EXTBG4A is not widely available on the market but AX Control Inc, which is located in Raleigh, North Carolina can do its best to not only help find this model for you but can also help repair the model for you if needed as well.

Frequently Asked Questions about IS200EXTBG4A

Does the?IS200EXTBG4A model also use a Close Relay 41?
Yes, along with the Trip Relay 41T the?IS200EXTBG4A model uses a Close Relay 41.

How does this model differ from the EXHSG4 model that it can be compared to?
The EXTBG4 and EXHS4 models do not differ. They both operate in a simplex redundancy mode, both control the breaker field circuits, and both use the trip and close relays.

What is the power supply that is supplied to the three contact inputs from the IS200EXTBG4A?
The power supplied to the 41, 53A, and 53B inputs are 70 VDC.

Where are the resulting status signals from the M1 and M2 power supplies sent?
The resulting signals are sent to the EMIO board in the control rack.
