描述

IS200TREGH1BDC 用于燃?xì)廨啓C(jī)控制系統的VIe系列

IS200TREGH1BDC是通用電氣制造的緊急跳閘端子板，屬于用于燃?xì)廨啓C(jī)控制系統的VIe系列。它包括兩個用于總線和發電機電壓輸入的電壓互感器(PTS)，以及用于I/O包的條件速度信號輸入。此外，它還具有十二個繼電器，每個繼電器頂部都有一根銀色金屬線。繼電器為白色和黑色，每排六個，共兩排。該端子板還具有DC-37針連接器，可連接至端子板的電纜以作為備用跳閘繼電器。

在Mark VIe或Mark VleS控制系統中，后備保護由SPRO和PPRO/YPRO通過接線到繼電器板形成。PTUR或YTUR、TTUR和主跳閘繼電器端子板提供主保護。安裝時，它被安裝在DIN導軌上的金屬板載體承載，也可以安裝在用螺栓固定在面板上的金屬板組件上。

總的來說，IS200TREGH1BDC的主要用途是作為燃?xì)廨啓C(jī)控制系統中用于跳閘緊急保護的端子板，提供后備保護以及主保護等功能，以確保燃?xì)廨啓C(jī)的安全運行。

IS200TREGH1BDC 用于燃?xì)廨啓C(jī)控制系統的VIe系列

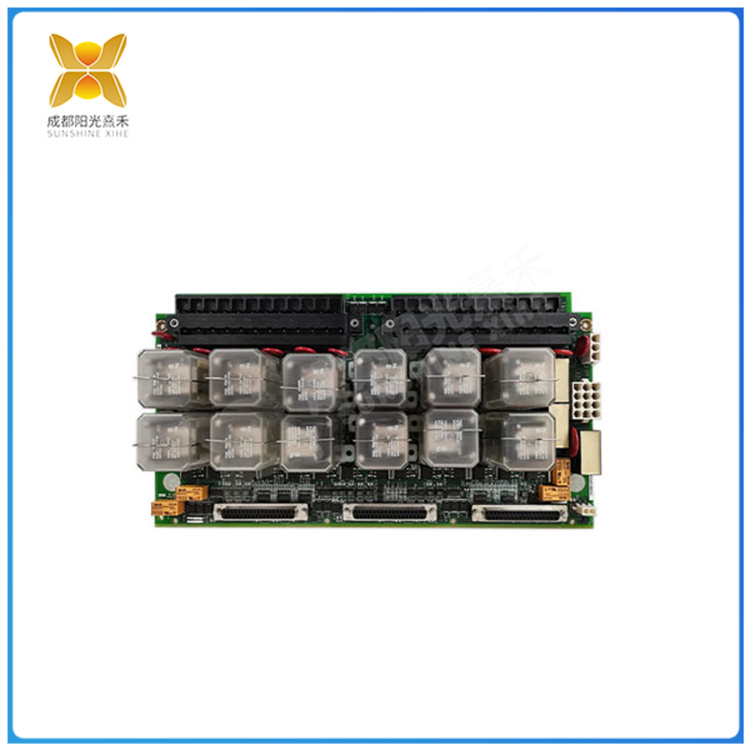

The IS200TREGH1BDC is a product of General Electric (GE) and belongs to the gas turbine system card. It has twelve relays, aligned into two rows of six each. The relays are white and black, each with a silver wire at the top. In addition to the three white jumper ports located on the top edge, the board is filled with metal oxide varistors.
The IS200TREGH1BDC is an emergency trip terminal board manufactured by General Electric and belongs to the VIe family for gas turbine control systems. It includes two voltage transformers (PTS) for bus and generator voltage inputs, and conditional speed signal inputs for I/O packets. In addition, it has twelve relays, each with a silver metal wire at the top. The relays are white and black, six in each row, a total of two rows. The terminal board also has a DC-37 pin connector to connect a cable to the terminal board to serve as a backup trip relay.

In Mark VIe or Mark VleS control systems, backup protection is formed by SPRO and PPRO/YPRO by wiring to the relay board. PTUR or YTUR, TTUR, and main trip relay terminal boards provide primary protection. When installed, it is carried on a metal plate carrier mounted on a DIN rail, or it can be mounted on a metal plate assembly bolted to the panel.

In general, the main use of the IS200TREGH1BDC is as a terminal board for trip emergency protection in the gas turbine control system, providing backup protection and main protection functions to ensure the safe operation of the gas turbine.
