描述

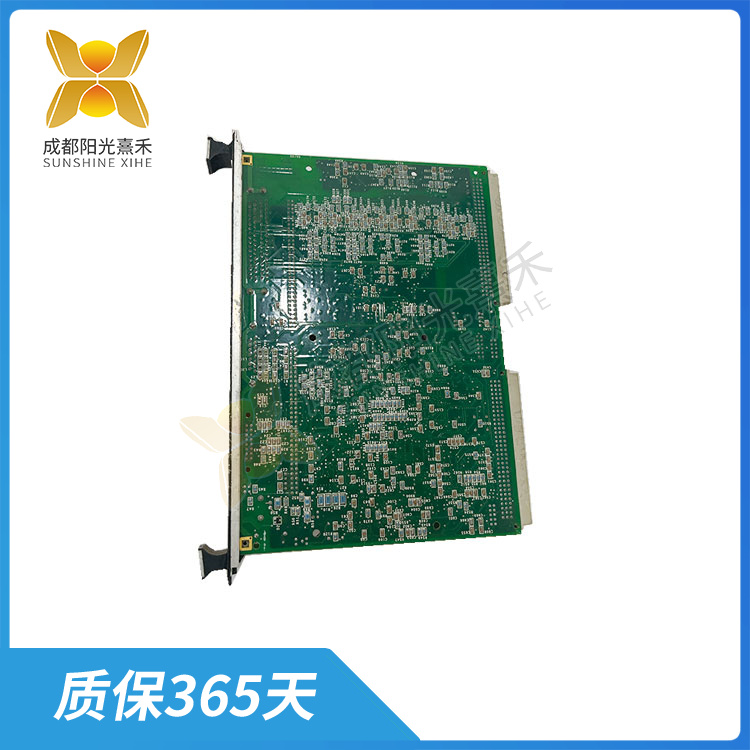

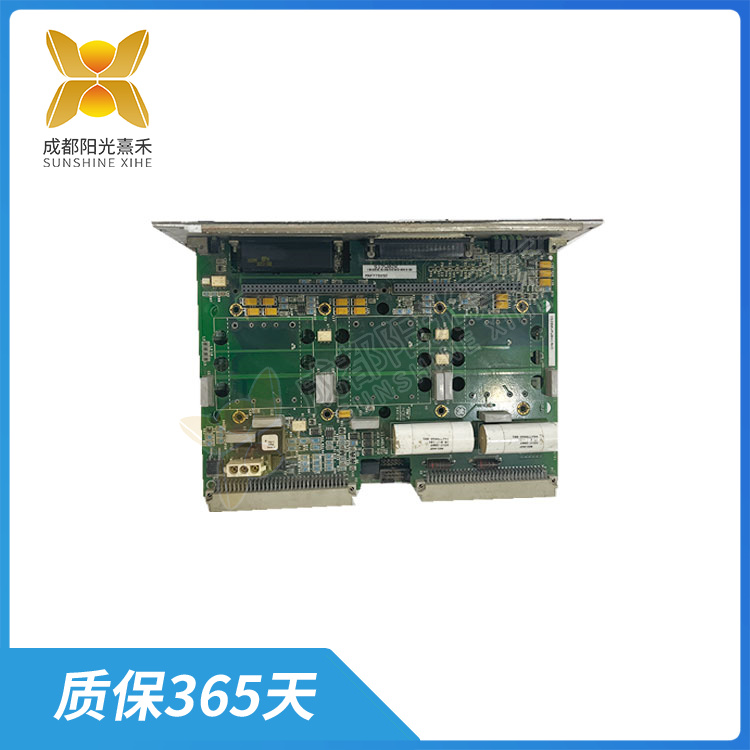

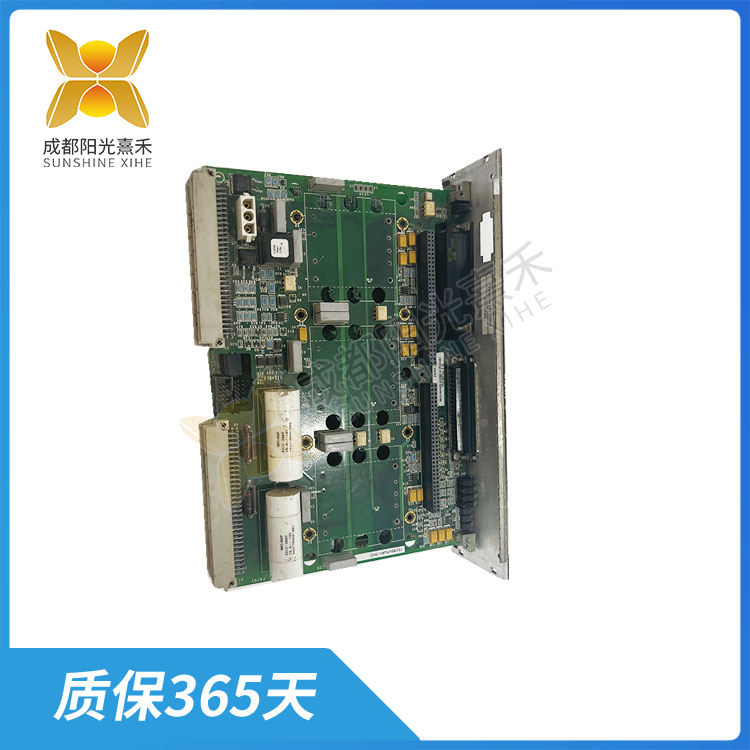

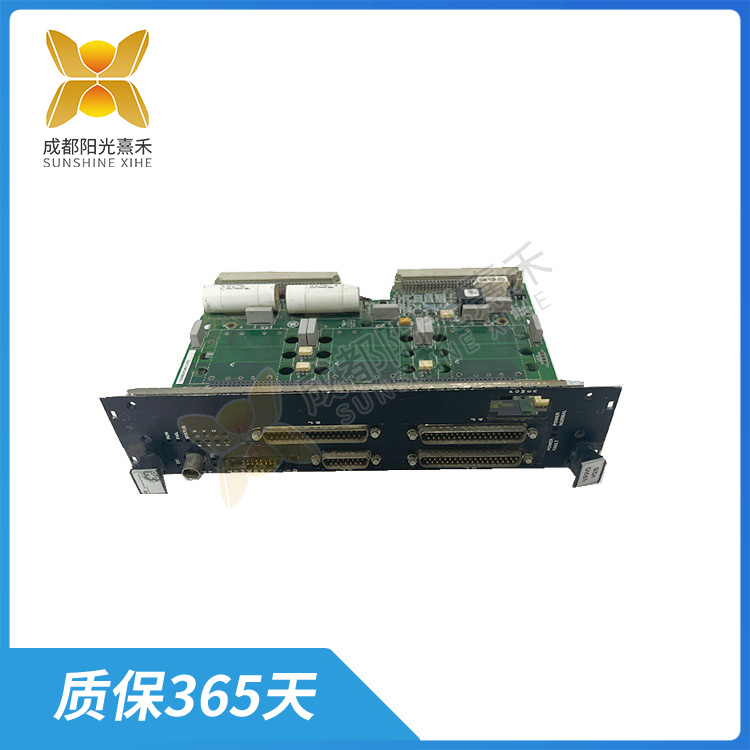

IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD GE 專為燃氣輪機控制系統設計的設備

通用電氣（GE）制造的緊急跳閘端子板，如IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD，是一款專為燃氣輪機控制系統設計的設備。這款緊急跳閘端子板屬于VIe系列，主要用于Mark VIe或Mark VleS控制系統中。它包含了兩個用于總線和發電機電壓輸入的電壓互感器（PTS），以及用于I/O包的條件速度信號輸入。此外，它還具有十二個繼電器，每個繼電器頂部都有一根銀色金屬線。這些繼電器分為白色和黑色，每排六個，共兩排。

除了這些基本功能，IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD還具有DC-37針連接器，可連接至端子板的電纜以作為備用跳閘繼電器。在Mark VIe或Mark VleS控制系統中，后備保護由SPRO和PPRO/YPRO通過接線到繼電器板形成。PTUR或YTUR、TTUR和主跳閘繼電器端子板提供主保護。

安裝時，這款緊急跳閘端子板被安裝在DIN導軌上的金屬板載體承載，也可以安裝在用螺栓固定在面板上的金屬板組件上?？偟膩碚f，IS200TREGH1BDC的主要用途是作為燃氣輪機控制系統中用于跳閘緊急保護的端子板，提供后備保護以及主保護等功能，以確保燃氣輪機的安全運行。

請注意，以上信息僅供參考，如需更詳細的信息，建議直接聯系通用電氣（GE）或其相關部門。同時，在操作或安裝此類設備時，務必遵循制造商的指導和安全規定，以確保人員和設備的安全。

IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD GE 專為燃氣輪機控制系統設計的設備

Emergency trip terminal boards made by General Electric (GE), such as IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD, are designed for gas turbine control systems. This emergency trip terminal board belongs to the VIe series and is primarily used in Mark VIe or Mark VleS control systems. It includes two voltage transformers (PTS) for bus and generator voltage inputs, and conditional speed signal inputs for I/O packets. In addition, it has twelve relays, each with a silver metal wire at the top. These relays are divided into white and black, six in each row, a total of two rows.

In addition to these basic features, the IS200VPROH2B-IS200VPROH1BEF-IS200VPWRH1AHD also has a DC-37 pin connector that can be connected to a cable to the terminal board to serve as a backup trip relay. In Mark VIe or Mark VleS control systems, backup protection is formed by SPRO and PPRO/YPRO by wiring to the relay board. PTUR or YTUR, TTUR, and main trip relay terminal boards provide primary protection.

When installed, the emergency trip terminal board is carried on a metal plate carrier mounted on a DIN rail, or can be mounted on a metal plate assembly bolted to the panel. In general, the main use of the IS200TREGH1BDC is as a terminal board for trip emergency protection in the gas turbine control system, providing backup protection and main protection functions to ensure the safe operation of the gas turbine.

Please note that the above information is for informational purposes only and for more detailed information, it is recommended to contact General Electric (GE) or its relevant departments directly. At the same time, when operating or installing such equipment, it is important to follow the manufacturer’s guidance and safety regulations to ensure the safety of personnel and equipment.
