IS200WNPSH1ABA 渦輪控制模塊

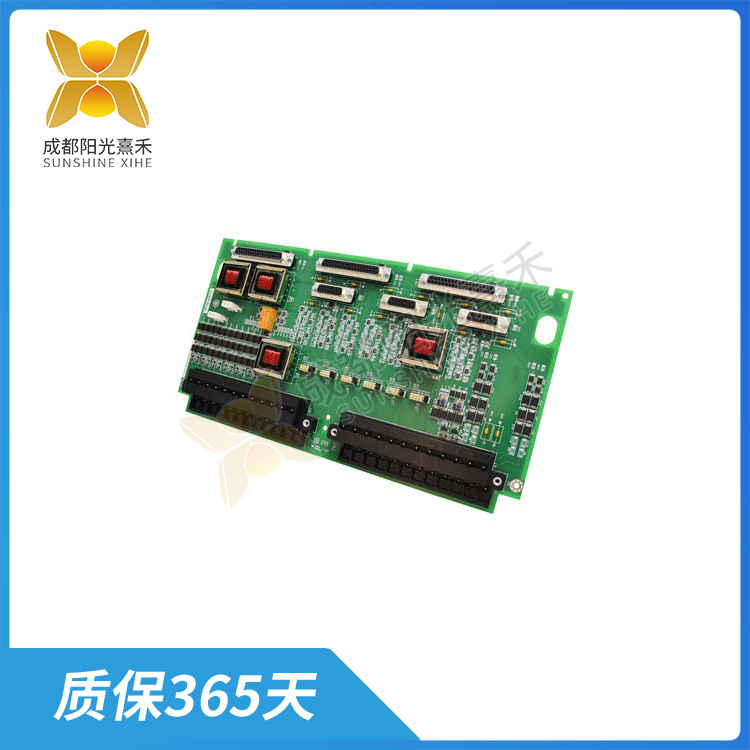

IS200WNPSH1ABA是由GE工業驅動系統制造的印刷電路板（PCB）。在應用程序中，它充當子板，具有兩個連接器端口，可以連接電纜。這款PCB具有矩形形狀，其兩個表面都安裝有組件。

具體來說，IS200WNPSH1ABA的底面有一個背板連接器（P1），它具有48個公腳。此外，后表面還標記有RA/00。在前表面，有兩個母插頭連接器，分別標記為JE1和JE2，它們并排放置在電路板的右側。

此外，IS200WNPSH1ABA的前表面還配備了一個單金屬氧化物壓敏電阻。這種壓敏電阻的電阻值會隨著外加電壓的變化而變化，從而起到保護電路的作用。電路板上還安裝了16個熔斷器（從TR1到TR16），它們分布在兩行中，每行8個，為電路提供了額外的保護。

在單板的底部，有三行光器件，分別被標識為D2、B2和Z2。這些光器件可能用于信號的傳輸或接收，是電路板實現其功能的關鍵組件之一。

總的來說，IS200WNPSH1ABA是一款功能豐富、設計精良的印刷電路板，廣泛應用于各種工業控制系統和設備中，為實現設備的正常運行和高效性能提供了重要的支持。在選擇和使用這種電路板時，建議參考制造商提供的技術文檔和指南，以確保其正確配置和高效運行。同時，考慮到其工業應用背景，安全性、可靠性和環境適應性也是需要考慮的重要因素。

IS200WNPSH1ABA 渦輪控制模塊

The IS200WNPSH1ABA is a printed circuit board (PCB) manufactured by GE Industrial Drive Systems. In the application, it acts as a daughter board with two connector ports that can connect cables. This PCB has a rectangular shape with components mounted on both surfaces.

Specifically, the underside of the IS200WNPSH1ABA has a backplane connector (P1), which has 48 male pins. In addition, the rear surface is marked with RA/00. On the front surface, there are two female plug connectors, labeled JE1 and JE2, which are placed side by side on the right side of the board.

In addition, the front surface of the IS200WNPSH1ABA is equipped with a single metal oxide varistor. The resistance value of this varistor will change with the change of the applied voltage, thus playing a role in protecting the circuit. Sixteen fuses (from TR1 to TR16) are also installed on the board, which are distributed in two rows of eight each, providing additional protection for the circuit.

At the bottom of the board, there are three rows of optical devices, identified as D2, B2, and Z2. These optical devices may be used for the transmission or reception of signals and are one of the key components of the board to achieve its function.

Overall, the IS200WNPSH1ABA is a feature-rich, well-designed printed circuit board that is widely used in a variety of industrial control systems and equipment, providing important support for the normal operation and efficient performance of equipment. When selecting and using such boards, it is recommended to refer to the technical documentation and guidelines provided by the manufacturer to ensure their correct configuration and efficient operation. At the same time, considering its industrial application background, safety, reliability and environmental adaptability are also important factors to be considered.
