描述

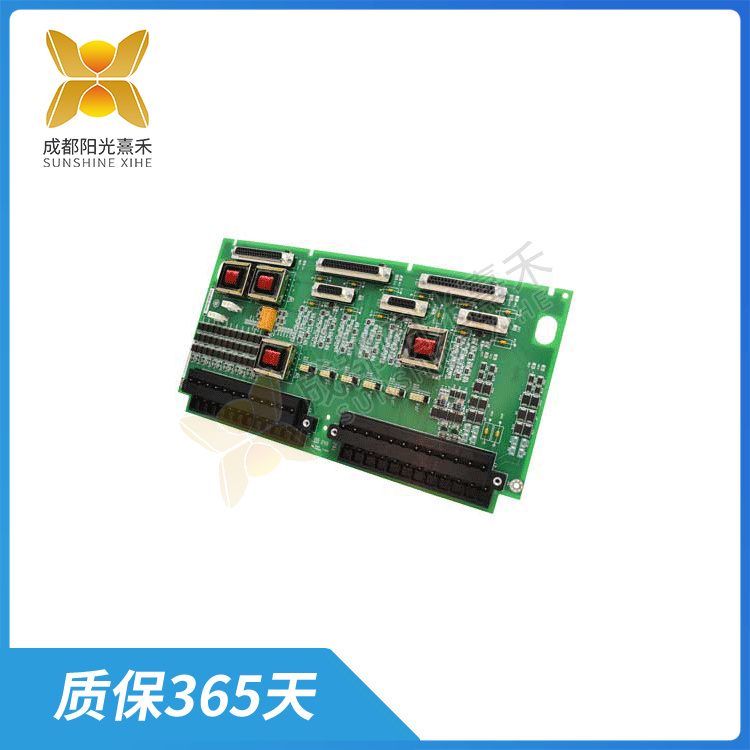

IS200WNPSH1ABA 渦輪控制模塊

IS200WNPSH1ABA是一款由GE工業驅動系統制造的PCB（印刷電路板）。這款電路板在應用程序中充當子板，具有兩個連接器端口，可以連接電纜。

IS200WNPSH1ABA的形狀為矩形，其兩個表面都裝有組件。其底面有一個背板連接器（P1），具有48個公腳，后表面還標記有RA/00。此外，其前表面有兩個母插頭連接器，分別標記為JE1和JE2，它們并排放置在電路板的右側。

在前表面，IS200WNPSH1ABA還配備了一個單金屬氧化物壓敏電阻。這種壓敏電阻的電阻值會隨著外加電壓的改變而變化。此外，電路板上還有16個熔斷器（從TR1到TR16），它們分布在兩行中，每行有8個。

在電路板底部，可以看到三行光器件，分別標識為D2、B2、Z2。這些組件和特性使得IS200WNPSH1ABA在工業自動化和控制系統中具有重要的功能。

請注意，為了安全和正確的使用，應始終參考相關的產品手冊、技術文檔和安全規范，以確保系統的正確配置和安全運行。如有需要，建議聯系GE工業驅動系統或相關技術支持部門獲取更多信息。

IS200WNPSH1ABA 渦輪控制模塊

The IS200WNPSH1ABA is a printed circuit board (PCB) manufactured by GE Industrial Drive Systems. This board acts as a daughter board in the application and has two connector ports to connect cables.

The IS200WNPSH1ABA is rectangular in shape and has components on both surfaces. It has a backplane connector (P1) on the underside with 48 male pins, and the rear surface is also marked with RA/00. In addition, its front surface has two female plug connectors, labeled JE1 and JE2, which are placed side by side on the right side of the board.

On the front surface, the IS200WNPSH1ABA is also equipped with a single metal oxide varistor. The resistance value of this varistor will change with the change of applied voltage. In addition, there are 16 fuses on the board (from TR1 to TR16), which are distributed in two rows with eight in each row.

At the bottom of the circuit board, you can see three lines of optical devices, identified as D2, B2, and Z2. These components and characteristics make IS200WNPSH1ABA important in industrial automation and control systems.

Please note that for safe and correct use, you should always refer to the relevant product manuals, technical documentation and safety specifications to ensure the correct configuration and safe operation of the system. Contact GE Industrial Drive Systems or related technical support for more information.
