描述

IS215VCMIH2C 用作IONet或系統控制網絡的通信接口

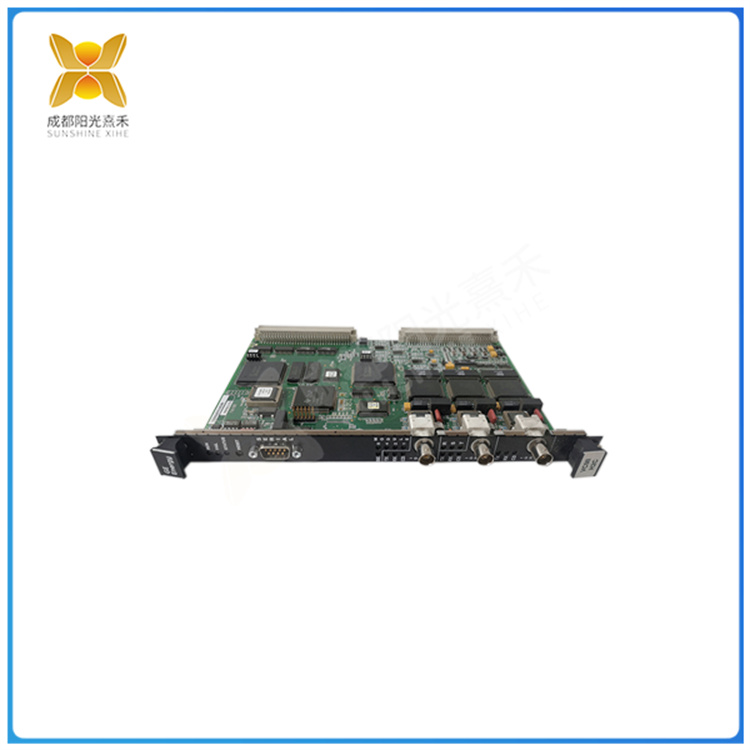

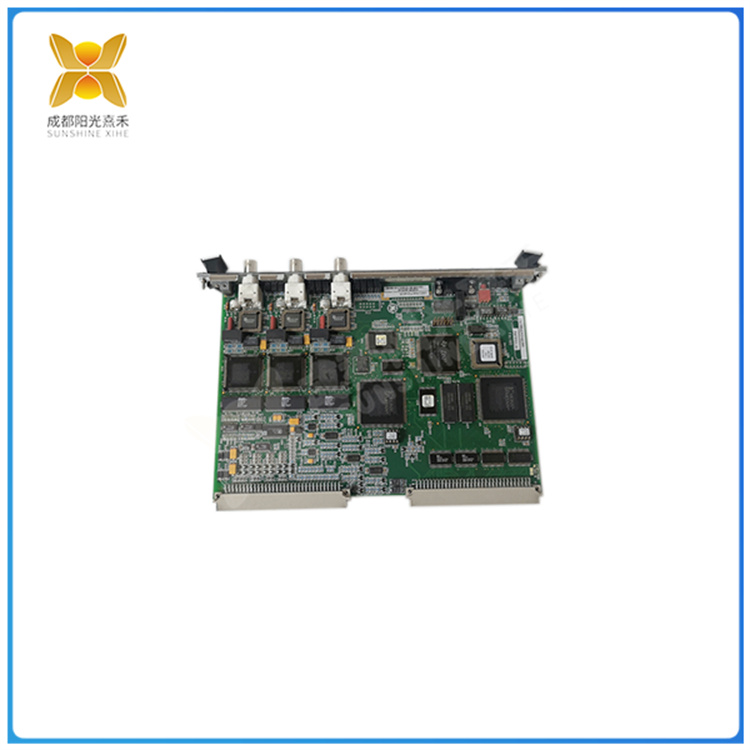

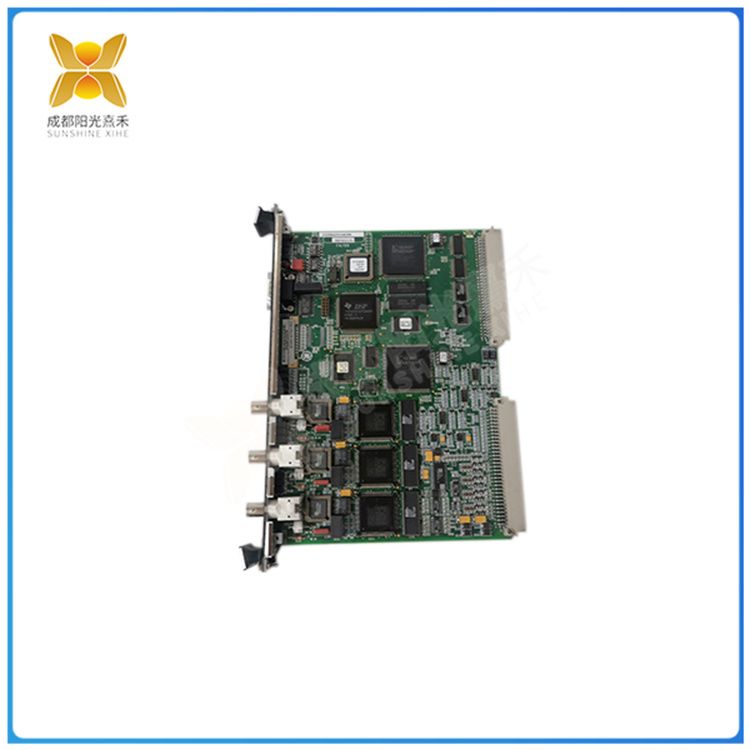

IS215VCMIH2C是VME通信接口卡，是GE Speedtronic Mark VI燃?xì)廨啓C(jī)控制系統的一部分。該P(yáng)CB用作I/O板和控制器之間的鏈路。它還用作IONet或系統控制網絡的通信接口。四端口連接器集成在IS215VCMIH2CA的前面板上。一個RS-232C串行端口，一個D型插頭連接器和三個IONet 10Base2以太網連接器是其中的功能。三個標有 TX/RX/CD 的 LED 指示燈連接到每個 IONet 端口。狀態、失敗、運行以及 1、2、4 和 8 是板上眾多 LED 指示之一。

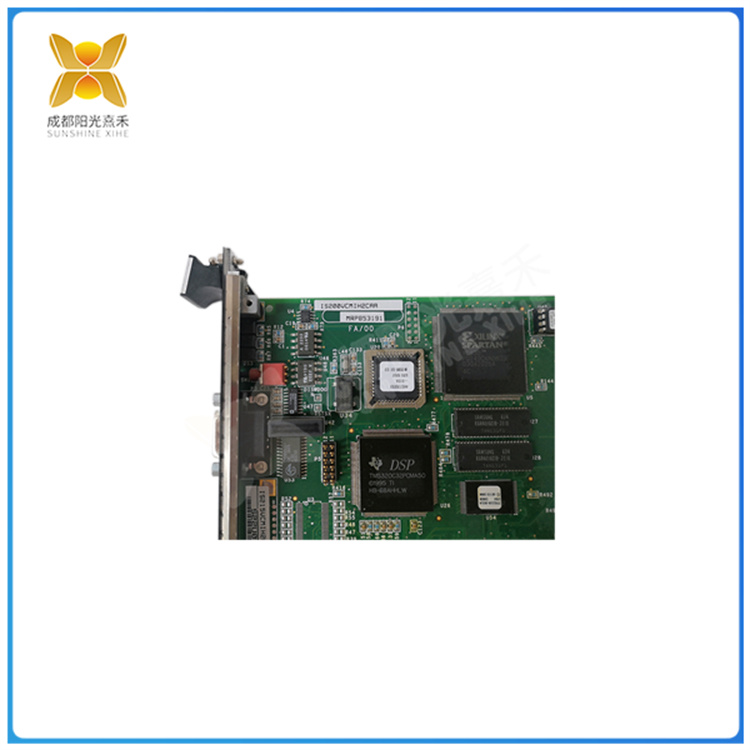

前者位于重置按鈕（按鈕）上方，而后者位于串行端口的正下方。該設計包括一個 TI 32 位數字信號處理器芯片?？偣灿腥齻€變壓器組件。

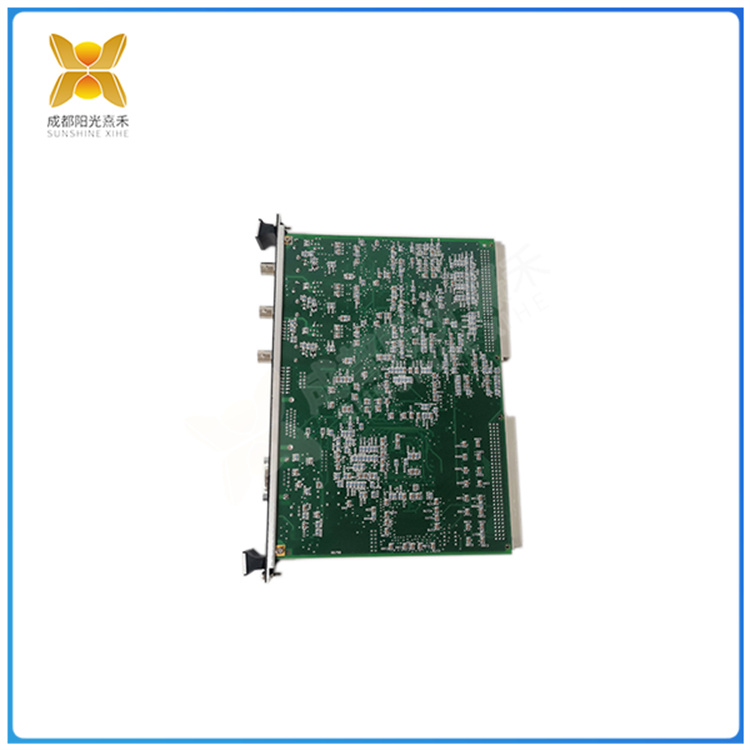

VME總線主控制器卡中包含50多個集成電路，包括振蕩芯片。 通過使用電感磁珠可降低電路板上的高頻噪聲。

該板有兩個背板連接器、一個 12 針垂直連接器和一系列其他導電連接器。
IS215VCMIH2C設計為GE Mark VI渦輪機控制系統中的VME通信卡，對于整個系統的正確功能至關重要。VCMI VME 通信板允許輸入/輸出 （I/O） 卡與安裝在 VME 背板上的其他 I/O 卡、安裝在擴展機架上的 I/O 卡、I/O 備份保護模塊、三重冗余控制模塊以及主處理器或主處理器模塊進行通信。

IS215VCMIH2C卡也被廣義地稱為VME總線主控制器。該P(yáng)CB連接I/O板和控制器之間的通信。它還充當系統控制網絡或IONet的通信接口。

IS215VCMIH2C在其前面板上設有四個端口連接。其中包括一個 RS-232C 串行端口、D 型插頭連接器和三個 IONet 10Base2 以太網端口。每個 IONet 連接器都與三個標記為 TX/RX/CD 的 LED 指示燈相關聯。該板具有標記為“狀態”、“失敗”、“運行”和“1、2、4 和 8”的附加 LED 指示燈。前者位于復位開關（按鈕）上方，而后者位于串行端口的正下方。

Mark VI系統中的每個控制模塊通常包含一個IS215VCMIH2C，這些獨特的VCMI卡用于通過控制系統的應用軟件與主處理器模塊通信執行數據。由于VCMI模塊的關鍵性質，建議在架子上保留額外的備件，以避免機器停機的情況。

IS215VCMIH2C 用作IONet或系統控制網絡的通信接口

The IS215VCMIH2C is a VME communication interface card that is part of the GE Speedtronic Mark VI gas turbine control system. The PCB acts as a link between the I/O board and the controller. It is also used as a communication interface for IONet or the system control network. The four-port connector is integrated on the front panel of the IS215VCMIH2CA. An RS-232C serial port, a Type D plug connector and three IONet 10Base2 Ethernet connectors are among the features. Three LED indicators labeled TX/RX/CD are connected to each IONet port. Status, failure, running, and 1, 2, 4, and 8 are among the many LED indicators on the board.

The former is located above the reset button (button), while the latter is located directly below the serial port. The design includes a TI 32-bit digital signal processor chip. There are three transformer components in total.

The VME bus master controller card contains more than 50 integrated circuits, including oscillating chips. The high-frequency noise on the circuit board can be reduced by using inductive magnetic beads.

The board has two backplane connectors, a 12-pin vertical connector, and a range of other conductive connectors.
The IS215VCMIH2C is designed as a VME communication card in the GE Mark VI turbine control system and is essential for the correct functioning of the entire system. The VCMI VME communication board allows the input/output (I/O) card to communicate with other I/O cards mounted on the VME backplane, expansion rack mounted I/O cards, I/O backup protection module, triple redundancy control module, and the main processor or main processor module.

The IS215VCMIH2C card is also referred to broadly as the VME bus master controller. The PCB connects the communication between the I/O board and the controller. It also acts as a communication interface for the system control network or IONet.

The IS215VCMIH2C has four port connections on its front panel. These include an RS-232C serial port, Type D plug connectors, and three IONet 10Base2 Ethernet ports. Each IONet connector is associated with three LED indicators labeled TX/RX/CD. The board has additional LED indicators labeled “Status,” “Failed,” “Run,” and “1, 2, 4, and 8.” The former is located above the reset switch (button), while the latter is located directly below the serial port.

Each control module in a Mark VI system typically contains an IS215VCMIH2C. These unique VCMI cards are used to communicate execution data to the main processor module through the control system’s application software. Due to the critical nature of the VCMI module, it is recommended to keep additional spare parts on the shelf to avoid the situation of machine downtime.
