描述

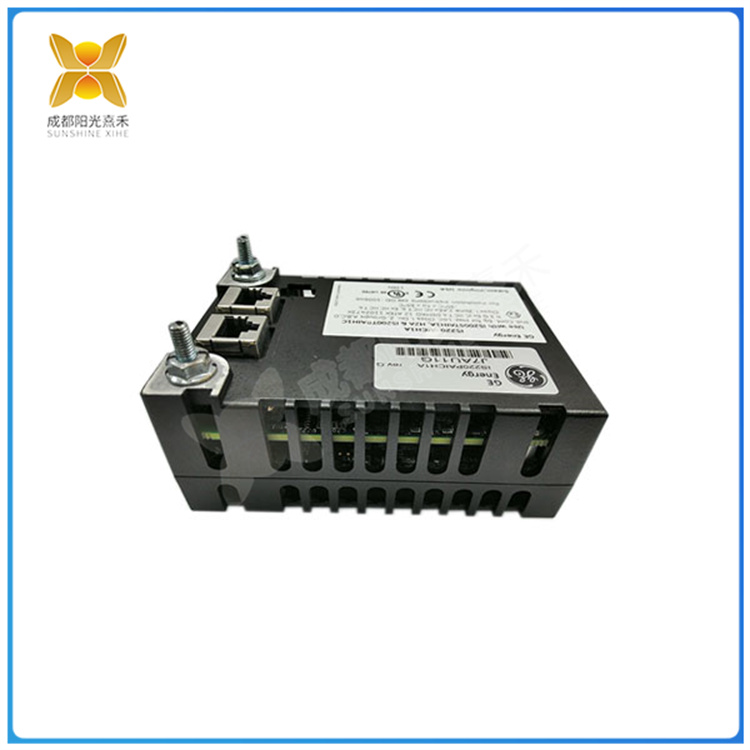

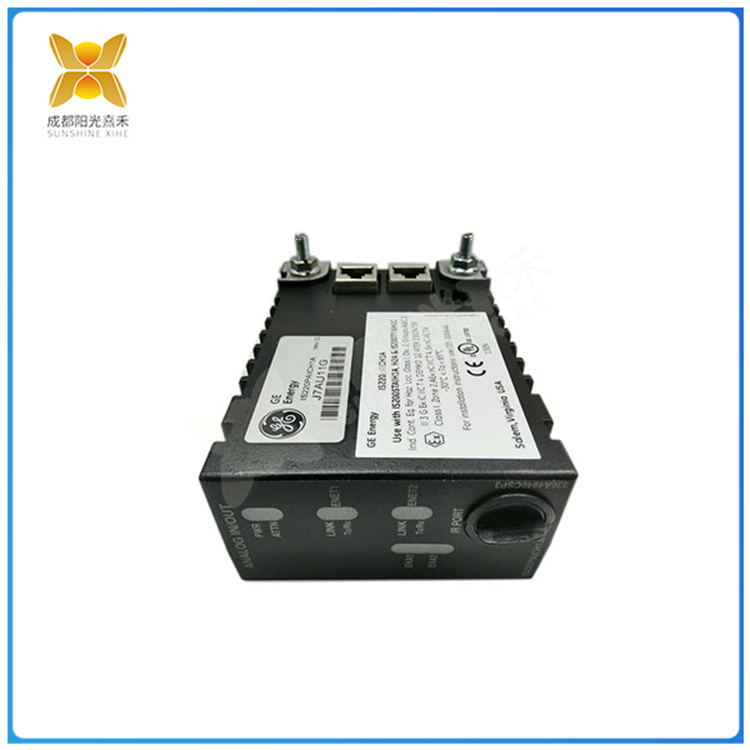

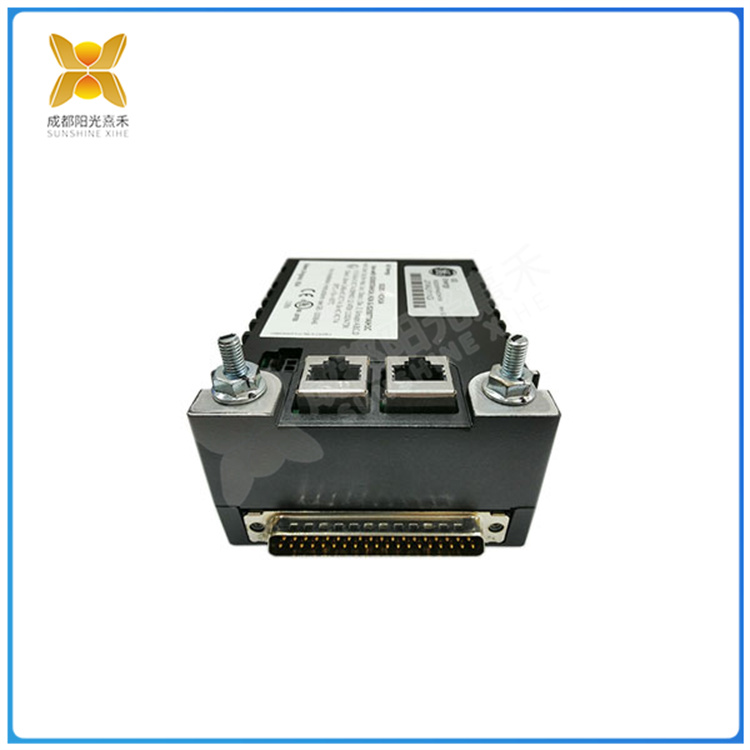

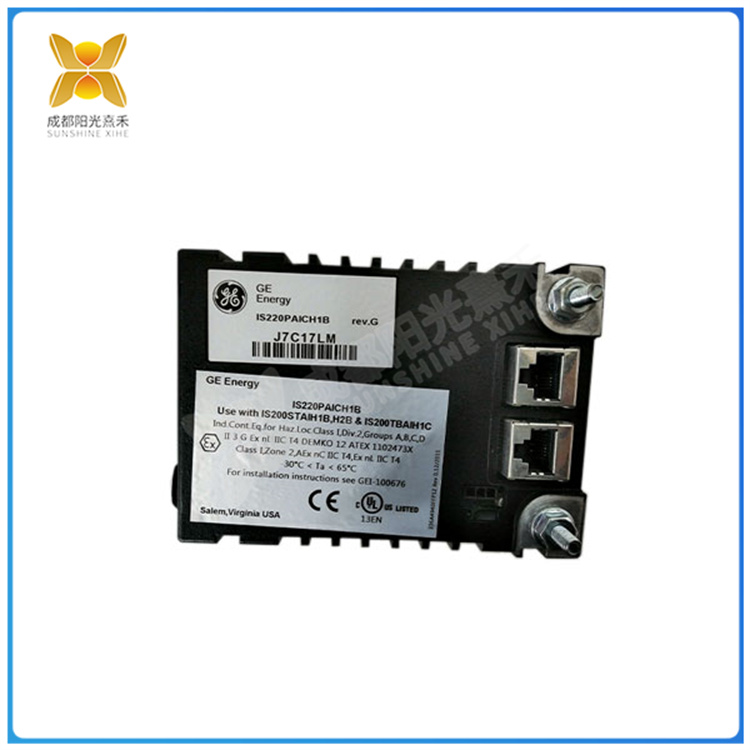

IS220PAICH1B 用于處理模擬信號的電子元件或電路

模擬輸入/輸出組件（Analog Input/Output Components）是用于處理模擬信號的電子元件或電路。它們可以將模擬信號轉換為數字信號，也可以將數字信號轉換為模擬信號。 模擬輸入組件用于將模擬信號（如溫度、壓力、聲音等）轉換為數字信號，以便計算機或其他數字設備可以處理和分析這些信號。常見的模擬輸入組件包括模數轉換器（ADC）、傳感器和信號調理電路。 模擬輸出組件用于將數字信號轉換為模擬信號，以便控制和驅動模擬設備，如電動機、揚聲器和顯示器等。常見的模擬輸出組件包括數模轉換器（DAC）、放大器和驅動電路。 模擬輸入/輸出組件通常用于工業控制、儀器儀表、通信和音頻/視頻處理等領域。它們的性能和精度對于系統的可靠性和準確性至關重要。

模擬輸入/輸出組件在自動化控制系統中扮演著重要的角色。這些組件主要負責將模擬信號（如溫度、壓力、位移等物理量）轉換為數字信號，以便計算機能夠進行處理和運算，并將處理后的數字信號轉換為模擬信號，以實現對物理設備的控制。

具體來說，模擬輸入/輸出組件包括以下部分：

1. 傳感器：用于將外部的物理量（如溫度、壓力、位移等）轉換為電流或電壓信號。
2. A/D轉換器：是輸入通道的核心部件，將電壓表示的模擬量轉換成數字量，并送計算機進行相應的處理。
3. 信號處理部件：放大傳感器輸出的信號，加入接濾波電路，濾去干擾安裝在現場的傳感器及其傳輸線路的信號。
4. 多路開關：實際控制現場需要監測或控制的模擬量多于一個時，使用多路模擬開關輪流接通其中的一路，使多個模擬信號共用一個ADC進行A/D轉換。
5. 采樣/保持電路：A/D轉換期間保持輸入信號不變。轉換開始之前，采樣；轉換進行過程中，向A/D轉換器保持固定的輸出（保持）。如果處理的是緩慢變化的模擬量，采樣/保持電路可以省去不用。
6. D/A轉換器：將成數字量轉換成模擬量輸出。

這些組件共同協作，實現了模擬信號和數字信號的相互轉換，從而實現對物理設備的控制和監測。

IS220PAICH1B 用于處理模擬信號的電子元件或電路

Analog Input/Output Components are electronic components or circuits used to process analog signals. They can convert analog signals to digital signals, and they can convert digital signals to analog signals. Analog input components are used to convert analog signals (such as temperature, pressure, sound, etc.) into digital signals so that computers or other digital devices can process and analyze these signals. Common analog input components include analog-to-digital converters (ADCs), sensors, and signal conditioning circuits. Analog output components are used to convert digital signals into analog signals in order to control and drive analog devices such as motors, speakers, and displays. Common analog output components include digital-to-analog converters (Dacs), amplifiers, and driver circuits. Analog input/output components are commonly used in industrial control, instrumentation, communications, and audio/video processing. Their performance and accuracy are critical to the reliability and accuracy of the system.

Analog input/output components play an important role in automated control systems. These components are mainly responsible for converting analog signals (such as temperature, pressure, displacement and other physical quantities) into digital signals, so that the computer can process and calculate, and convert the processed digital signals into analog signals to achieve the control of the physical equipment.

Specifically, the analog input/output component consists of the following sections:

Sensors: Used to convert external physical quantities (such as temperature, pressure, displacement, etc.) into current or voltage signals.
A/D converter: It is the core component of the input channel, which converts the analog value represented by the voltage into a digital value and sends it to the computer for corresponding processing.
Signal processing component: amplify the signal output of the sensor, add the filter circuit, filter out the signal that interferes with the sensor installed in the field and its transmission line.
Multichannel switch: When there is more than one analog quantity to be monitored or controlled in the actual control site, the multichannel analog switch is used to turn on one of them in turn, so that multiple analog signals share one ADC for A/D conversion.
Sample/hold circuit: Keep the input signal unchanged during A/D conversion. Before the conversion begins, sample; During the conversion process, the A/D converter maintains a fixed output (hold). If you are dealing with slowly changing analog quantities, the sample/hold circuit can be eliminated.
D/A converter: Converts digital output to analog output.

These components work together to realize the mutual conversion of analog signals and digital signals, so as to realize the control and monitoring of physical devices.
