IS220PTURH1A 通過組件編輯器在工具箱ST應用程序中啟用或禁用
IS220PTURH1A是GE為其Mark VI系統開發的組件。Mark VI是GE發布的用于燃?xì)?蒸汽輪機管理的最終Speedtronic系統之一。
IS220PTURH1A是一次汽輪機專用一次跳閘組件。該組件在汽輪機控制端子板和一個或兩個以太網之間提供電氣接口。該組件的輸出通過連接到相關端子板的DC 62針連接器實現。
IS220PTURH1A采用黑色外殼，帶有空氣流通開口。這種情況下的前面有多個LED指示燈，以及一個IR(紅外端口。)這個端口沒有在這個包中使用。在這個外殼內，有一個處理器板、一個專用于渦輪機控制的第二塊板和一個模擬采集輔助板。電池組安裝在TTURH1C端子板上。
處理器板有兩個10/100以太網端口、閃存和RAM、一個用于識別的只讀芯片、一個內部溫度傳感器和一個復位電路。 IS220PTURH1A允許自動重新配置，自動從控制器下載到I/O包。重新配置包括基本加載、引導加載、固件和參數。要實現這一點，必須啟用自動重新配置。這可以通過組件編輯器在工具箱ST應用程序中啟用或禁用。
Mark VI系統開發的組件包括：
IS220UCSAH1A：通用電氣為Mark VI系統創建的處理器/控制器。它具有HMI（人機界面），其軟件專為運行重型渦輪機而設計，例如CIMPLICITY圖形界面。它是一個單一的盒裝組件，前面板允許連接通信，后邊緣有兩個螺釘安裝。
IS220PTURH1A：主要渦輪機專用的主要跳閘包。該組件在渦輪機控制終端板和一個或兩個以太網網絡之間提供電氣接口。該組的輸出通過連接到相關端子板的DC-62引腳連接器進行。它采用黑色外殼，帶有空氣流通口。該外殼的正面有多個LED指示燈，以及一個IR（紅外端口）。
IS220PTURH1A 通過組件編輯器在工具箱ST應用程序中啟用或禁用
The IS220PTURH1A is a component developed by GE for its Mark VI system. The Mark VI is one of the final Speedtronic systems released by GE for gas/steam turbine management.

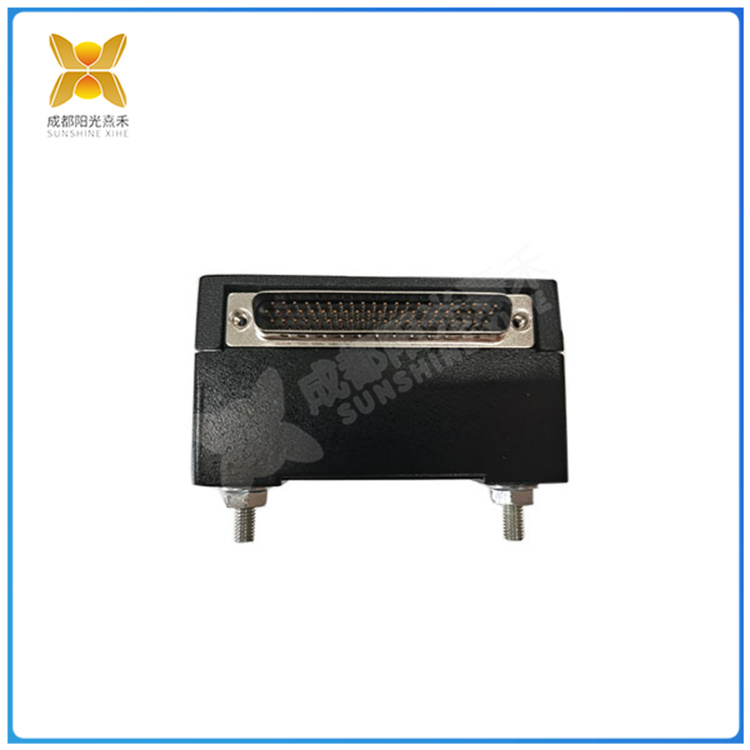

IS220PTURH1A is a single-trip assembly for a steam turbine. This component provides an electrical interface between the turbine control terminal board and one or two Ethernet cables. The output of this component is achieved through a DC 62-pin connector connected to the associated terminal board.

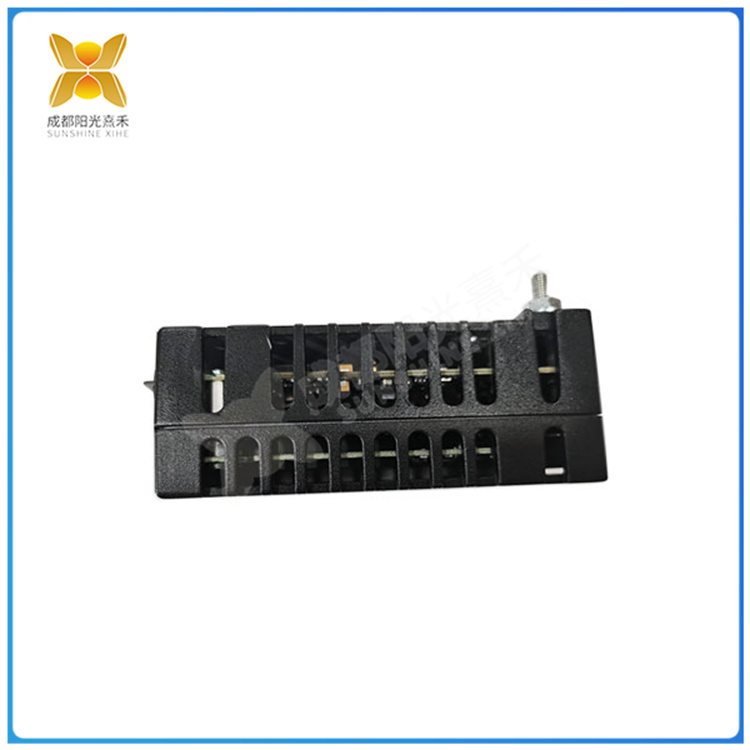

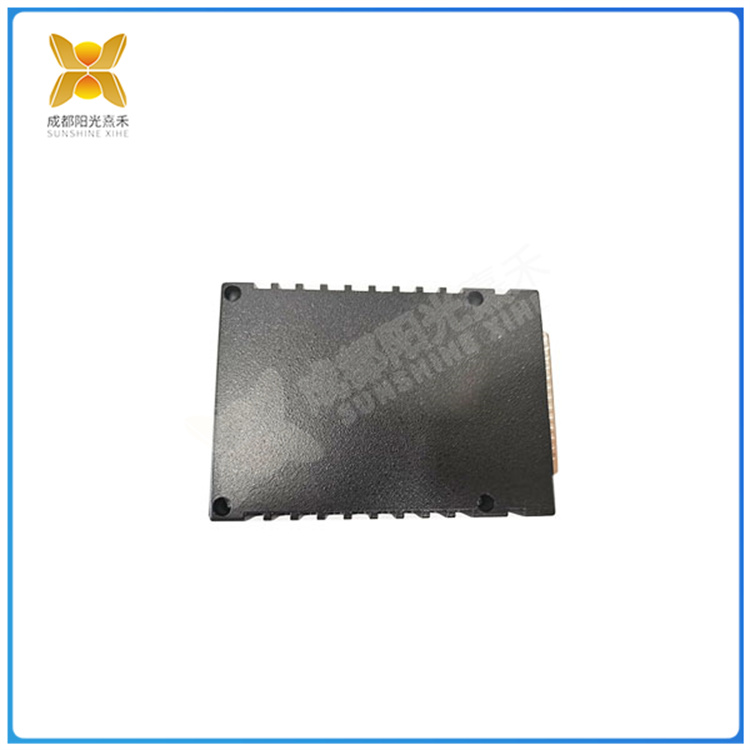

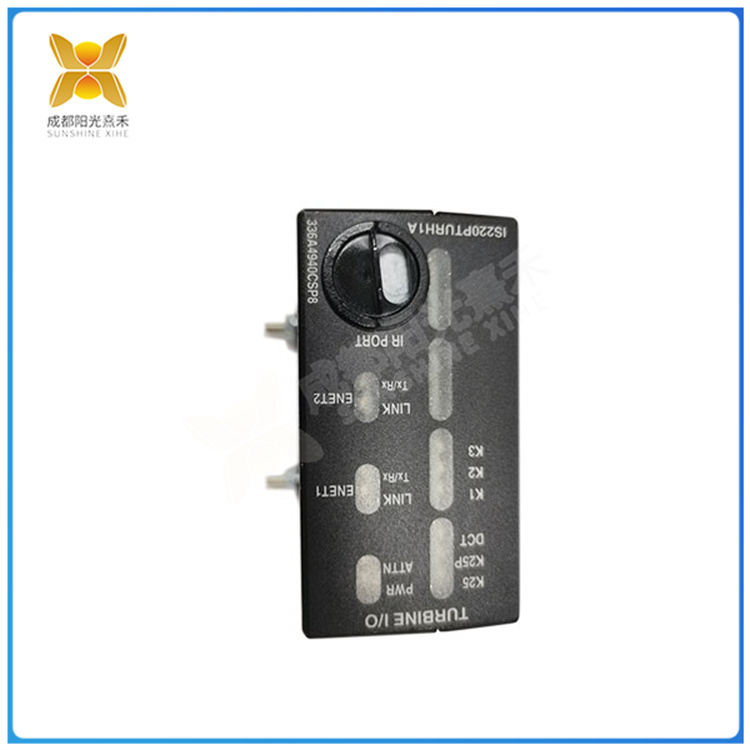

The IS220PTURH1A comes in a black housing with an air outlet. The front of this case has multiple LED indicators, as well as an IR(infrared port). This port is not used in this package. Inside this enclosure, there is a processor board, a second board dedicated to turbine control, and an analog acquisition auxiliary board. The battery string is installed on the TTURH1C terminal board.

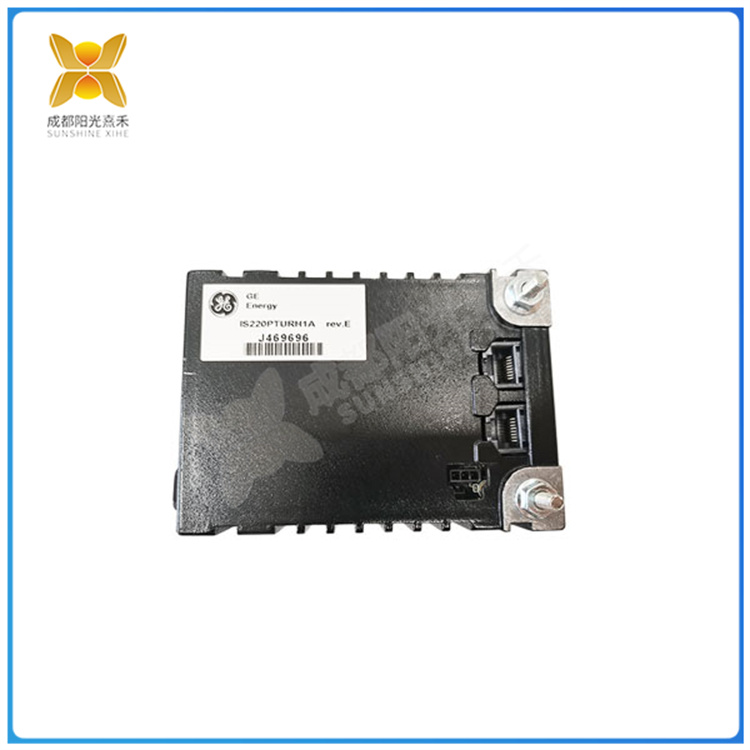

The processor board has two 10/100 Ethernet ports, flash memory and RAM, a read-only chip for identification, an internal temperature sensor, and a reset circuit. The IS220PTURH1A allows automatic reconfiguration and automatically downloads I/O packages from the controller. Reconfiguration includes base load, boot load, firmware, and parameters. To do this, you must enable automatic reconfiguration. This can be enabled or disabled in the toolbox ST application through the Component editor.
The components developed by the Mark VI system include:
IS220UCSAH1A: a processor or controller created by General Electric for the Mark VI system. It has an HMI (Human machine interface) and its software is designed for running heavy duty turbines, such as the CIMPLICITY graphical interface. It is a single boxed assembly with a front panel that allows connection communication and a rear edge with two screws mounted.
IS220PTURH1A: Main trip package for main turbines. This component provides an electrical interface between the turbine control terminal board and one or two Ethernet networks. The output of this group is done via a DC-62 pin connector connected to the associated terminal board. It has a black housing with an air outlet. The front of the housing has multiple LED indicators, as well as an IR (infrared port).
