IS220PVIBH1A 連接器直接連接到匹配的端子板連接器以進行輸出

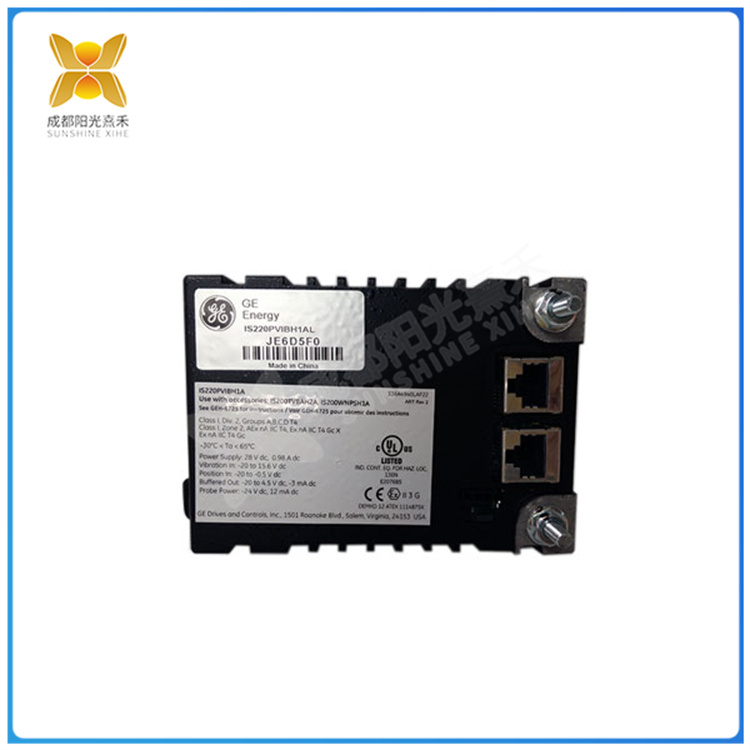

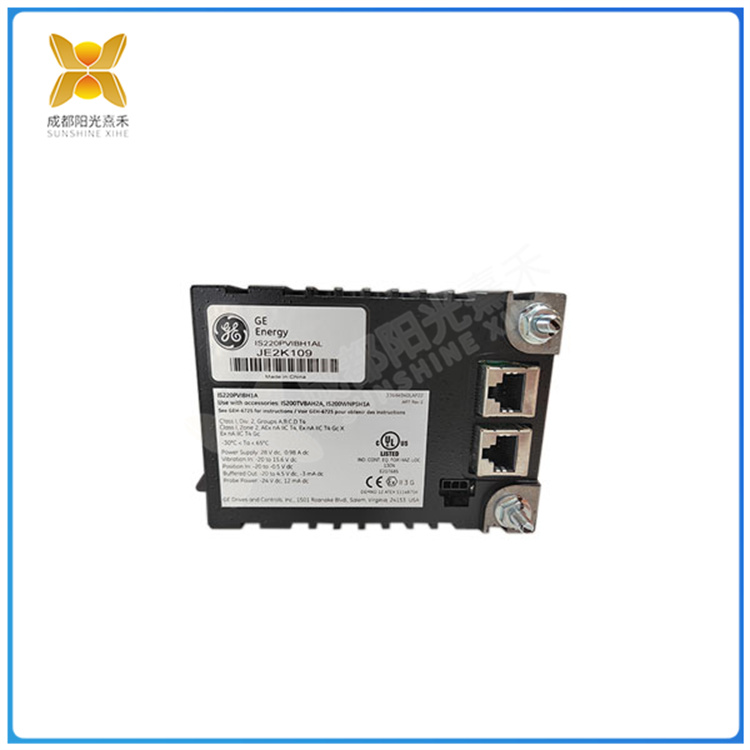

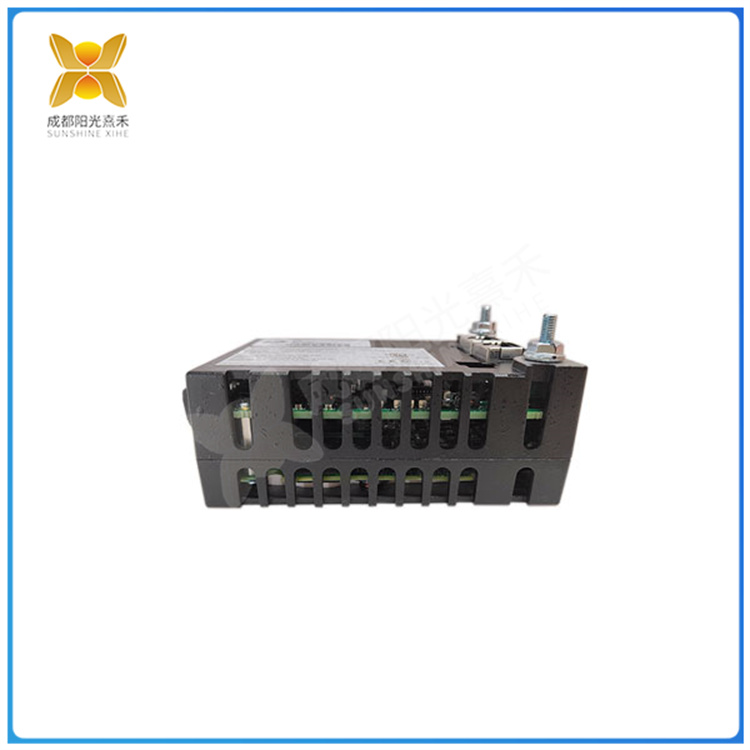

IS220PVIBH1A 是 GE 在 Mark VIe 控制系統下開發的振動監測器 (PVIB) 包。振動監視器 (PVIB) 包以電氣方式將一個或兩個 I/O 以太網連接到 TVBA 振動端子板。該包包括一個處理器板、一個采集板和一個子板，這些都是所有 Mark VIe 分布式 I/O 包所共有的。
該包使用通道 1 至 8 從以下傳感器類型讀取振動或接近信息：前置器、集成輸出加速度計（僅限通道 1-3）、Velomitor 或地震通道 9 至 12 僅支持前置器，而通道 13 可以輸入鍵相信號類型或接近類型信號。
雙 RJ45 以太網端口和 3 針電源輸入用于為電池組供電。對于低于 100 Hz 的幀速率，PVIB 支持雙以太網。它通過以太網支持 3.125、6.25、12.5、25、50 和 100 Hz 的幀速率。

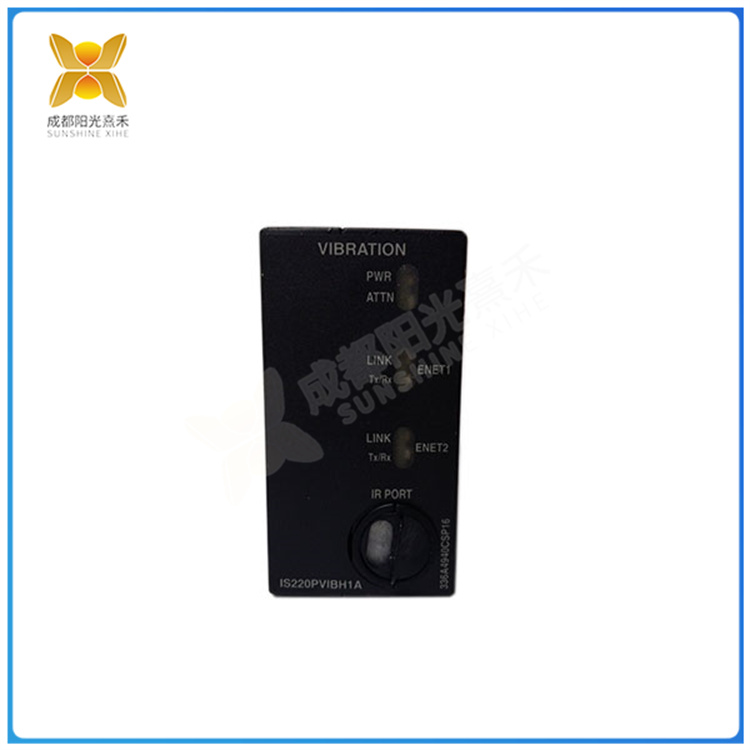

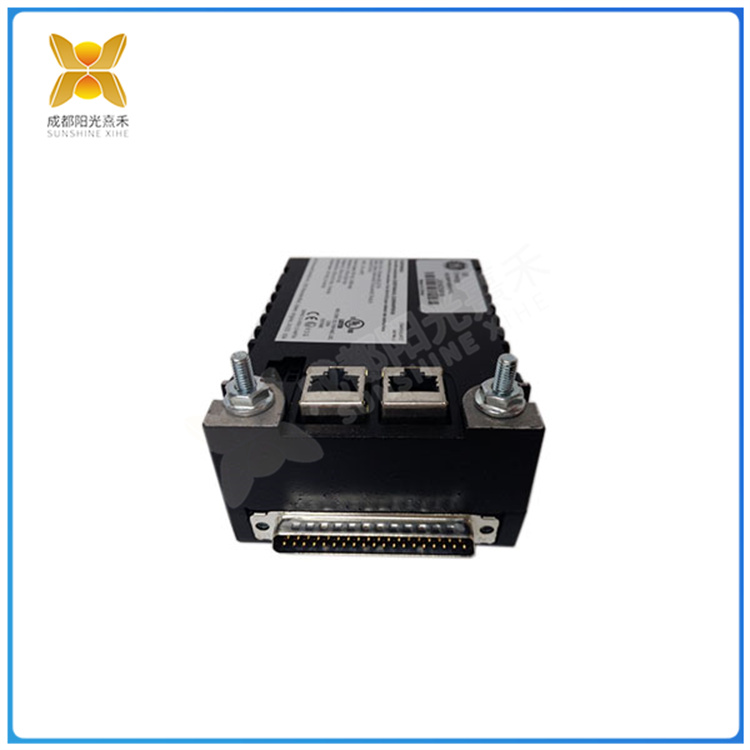

DC-37 針連接器直接連接到匹配的端子板連接器以進行輸出。LED 指示燈用于顯示視覺診斷。
IS220PVIBH1A 兼容性
雙 RJ45 以太網端口和 3 針電源輸入用于為電池組供電。對于低于 100 Hz 的幀速率，PVIB 支持雙以太網。它通過以太網支持 3.125、6.25、12.5、25、50 和 100 Hz 的幀速率。DC-37 針連接器直接連接到匹配的端子板連接器以進行輸出。LED 指示燈用于顯示視覺診斷。
IS220PVIBH1A安裝
按照步驟安裝包
固定您要使用的端子板。
將 PVIB I/O 包直接連接到端子板連接器。
使用靠近以太網端口的螺柱以機械方式固定電池組。
根據系統配置，連接一根或兩根以太網線。該包可與任一端口一起使用。使用雙連接時，ENET1 應連接到與 R 控制器鏈接的網絡。
插入側面的連接器，將電池組連接到電源。
使用 ToolboxST* 應用程序根據需要配置 I/O 包。
檢查 TVBA 上的 N28 電源子板是否正確放置在 TVBA 連接器中。
IS220PVIBH1A 連接器直接連接到匹配的端子板連接器以進行輸出
The IS220PVIBH1A is a vibration monitor (PVIB) package developed by GE under the Mark VIe Control System. The Vibration Monitor (PVIB) package electrically connects one or two I/O Ethernet cables to the TVBA vibration terminal board. The package includes a processor board, a capture board, and a child board, which are common to all Mark VIe distributed I/O packages.
The package uses channels 1 through 8 to read vibration or proximity information from the following sensor types: precursors, integrated output accelerometers (channels 1-3 only), Velomitor, or seismic channels 9 through 12 support precursors only, while channels 13 can input key type or proximity type signals.
The dual RJ45 Ethernet port and 3-pin power input are used to power the battery pack. For frame rates below 100 Hz, the PVIB supports dual Ethernet. It supports frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz over Ethernet.
The DC-37 pin connector connects directly to the matching terminal board connector for output. LED indicator is used to display visual diagnosis.
IS220PVIBH1A Compatibility
The dual RJ45 Ethernet port and 3-pin power input are used to power the battery pack. For frame rates below 100 Hz, the PVIB supports dual Ethernet. It supports frame rates of 3.125, 6.25, 12.5, 25, 50, and 100 Hz over Ethernet. The DC-37 pin connector connects directly to the matching terminal board connector for output. LED indicator is used to display visual diagnosis.
IS220PVIBH1A Installation
Follow the steps to install the package
Secure the terminal board you want to use.
Connect the PVIB I/O package directly to the terminal board connector.
The battery pack is mechanically secured using a stud near the Ethernet port.
Connect one or two Ethernet cables based on the system configuration. The package can be used with either port. When using dual connections, ENET1 should be connected to the network linked to the R controller.
Plug in the connector on the side to connect the battery pack to the power supply.
Use the ToolboxST* application to configure I/O packages as needed.
Check that the N28 power subboard on the TVBA is properly placed in the TVBA connector.
