描述

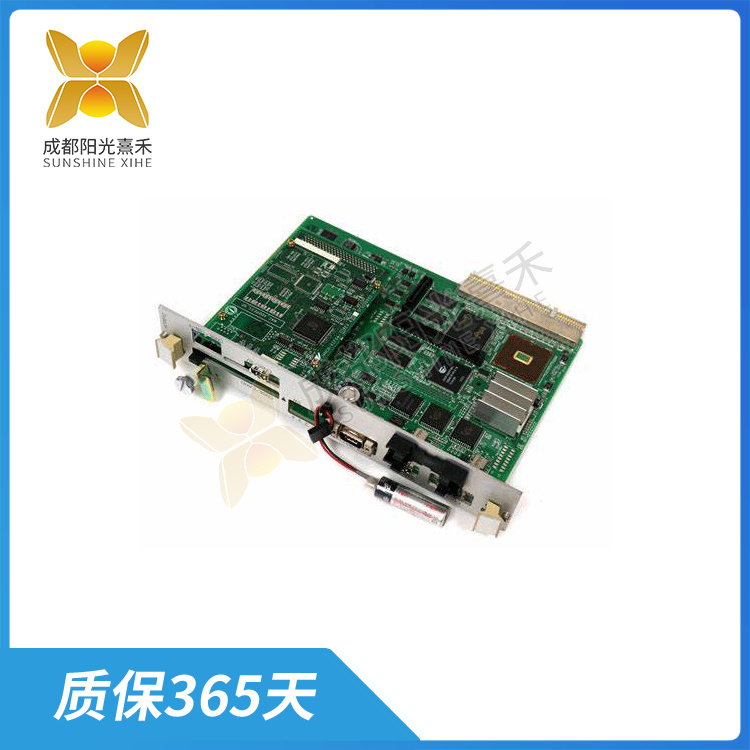

JANCD-XCP01C-1 工業自動化控制器模塊

JANCD-XCP01C-1 是一款主板，特別地，它是安川（Yaskawa）MOTOMAN機器人所使用的主板。這款主板具有耗電小及關閉電源功能，其新型電源IC的靜態電流較小，一般為幾十μA到幾百μA。此外，它還具有關閉電源控制端功能，可以在關閉電源狀態時使IC自身耗電在1μA左右，從而大大節省電能。

在電源測試中，這款主板會經過多項重要測試，包括交叉負載、浪涌、輸入電壓、紋波噪音、輸出短路、過功率、轉換效率、功率因數、響應時間、時序、噪音、傳導輻射、漏電流以及高低溫測試等。其中，浪涌電流指的是電源接通瞬間流入電源設備的峰值電流，由于輸入濾波電容迅速充電，這個峰值電流會遠遠大于穩態輸入電流。

此外，相較于其他型號（如M-3），JANCD-XCP01C-1除了提升傳送效率，還能進行設備的分散控制（支持模塊化系統），支持IP通信，同時減少整體設備接線，方便進行數據的統一管理。

總的來說，JANCD-XCP01C-1主板是一款功能強大、性能穩定、經過嚴格測試的主板，適用于安川MOTOMAN機器人的各種應用場景。

JANCD-XCP01C-1 工業自動化控制器模塊

The JANCD-XCP01C-1 is a motherboard, specifically one used by Yaskawa’s MOTOMAN robot. This motherboard has a small power consumption and power off function, and the static current of its new power supply IC is small, generally tens of μA to hundreds of μA. In addition, it also has the function of turning off the power control terminal, which can make the IC itself consume about 1μA when the power is turned off, thus greatly saving power.

In power testing, the motherboard undergoes several important tests, including cross-load, surge, input voltage, ripple noise, output short circuit, overpower, conversion efficiency, power factor, response time, timing, noise, conducted radiation, leakage current, and high and low temperature tests. Among them, the surge current refers to the peak current flowing into the power supply device at the moment the power is turned on. Because the input filter capacitor is rapidly charged, the peak current will be much greater than the steady input current.

In addition, compared with other models (such as M-3), the JANCD-XCP01C-1 can not only improve transmission efficiency, but also enable decentralized control of the equipment (supporting modular systems), support IP communication, and reduce the overall device wiring to facilitate unified data management.

Overall, the JANCD-XCP01C-1 motherboard is a powerful, stable and rigorously tested motherboard suitable for various application scenarios of Yaskawa MOTOMAN robots.
