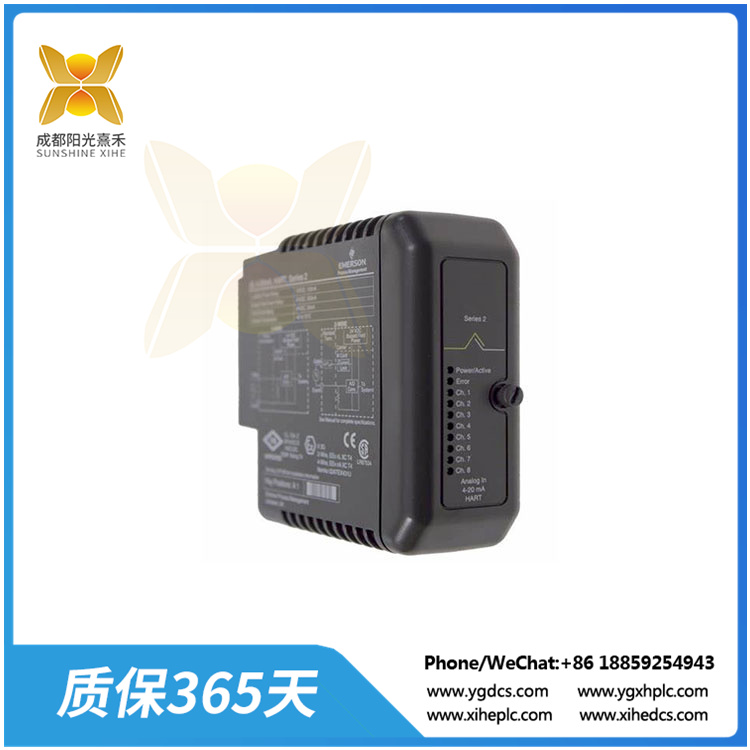

KJ3222X1-EA1 冗余模擬接線板旋轉鍵控系統
產品參數: KJ3222X1-EA1冗余模擬接線板旋轉鍵控系統
●制造商:艾默生
●產品編號:KJ3222X1-EA1
●產品類型:冗余模擬接線板
●運輸重量:3公斤
●雄赤鹿
●隔離:每個通道在現場與系統隔離= 100 VAC時與系統光學隔離(通過1700 VDC工廠測試驗證)
●全信號范圍:1至23 mA,帶超量程檢查
●每個卡的局部總線電流(12 VDC標稱值):典型值120 mA,最大值150 mA
●每個卡的現場電路功率:24 VDC (+ 10%)時最大300 mA
●整個溫度范圍內的精度:0.1%量程
●分辨率:16位
●重復性:量程的0.05%
●滾降頻率:2.7赫茲時為-3分貝;采樣頻率下為-20.5 dB
●可選保險絲:2.0安
●模擬量輸入板卡
●運輸重量:2公斤
旋轉鍵控系統確保兼容性I/O卡和端子排之間完成安裝。這個端子座必須是否為I/O卡設置了要使用的密鑰與。
KJ3222X1-EA1 冗余模擬接線板旋轉鍵控系統
Product parameters: KJ3222X1-EA1 redundant analog patch board rotary keying system
● Manufacturer: Emerson
● Product Number :KJ3222X1-EA1
● Product type: Redundant analog patch board
● Shipping weight :3 kg
● A red deer
● Isolation: Each channel is isolated from the system in the field = 100 VAC optically isolated from the system (verified by 1700 VDC factory test)
● Full signal range :1 to 23 mA, with overrange check
● Local bus current per card (12 VDC nominal): typical value 120 mA, maximum 150 mA
● Field circuit power per card: up to 300 mA at 24 VDC (+ 10%)
● Accuracy over the entire temperature range :0.1% range
● Resolution :16 bits
● Repeatability: 0.05% of the range
● Rolling down frequency: -3 dB at 2.7 Hz; The sampling frequency is -20.5 dB
● Optional fuse :2.0 amp
● Analog input board
● Shipping weight :2 kg
The rotary keying system ensures compatibility between the I/O card and the terminal block. This block must have a key and key set for the I/O card to use.
