描述

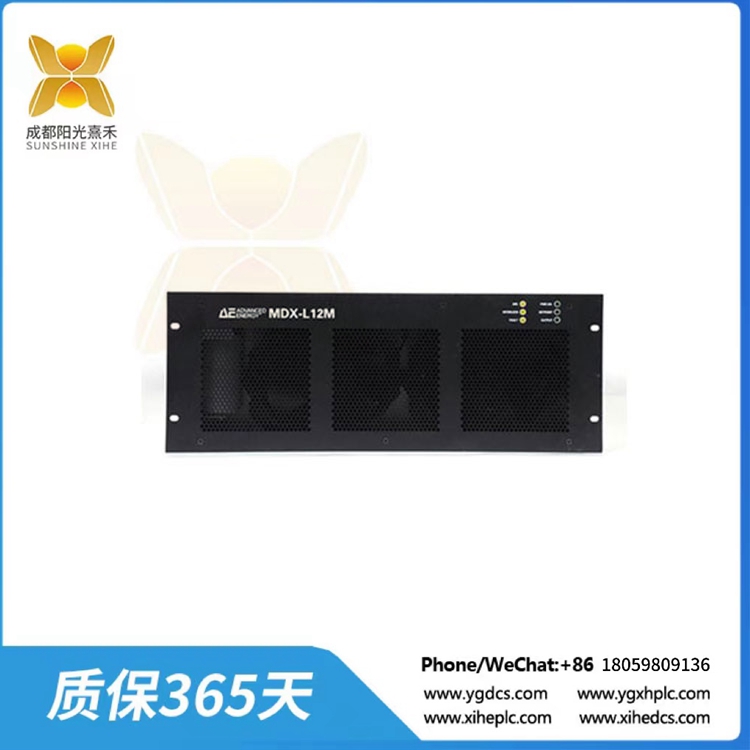

MDX-L12M 二極管固態整流模塊

參數

MDC, MDA, MDK, MDX 系列
負載電流:?25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
尺寸和安裝:?帶塑料蓋的面板安裝固態模塊，金屬底座和螺釘端子；可根據“外形編號”獲取相應“產品尺寸”獲得相應的整體尺寸 （單擊此處）

功能
● 芯片與背板之間的電絕緣，絕緣電壓為2500VAC
● 國際標準包裝
● “真空+加氫保護”焊接技術
● 壓接式結構，出色的熱循環和功率循環能力
● 如果電流低于350A，則通過強制風冷冷卻模塊；如果電流大于400A，則冷卻方法可以是空冷或水冷
● 易于安裝，易于應用和維護
● 體積小，重量輕

應用
● 交直流電動機控制系統
● 各種整流電源
● 工業加熱控制系統
● 照明系統
● 非接觸式開關
● 電機軟啟動
● 靜態無功補償器
● 電焊機
● 變頻器
● UPS電源
● 電池充放電

注意事項和常見問題解答
● VDSM/VRSM=VDRM/VRRM+200V
● 除非另有說明，否則IGT, VGT, IH, VTM, 和 VISO 均在25°C下測試，表中的其他參數均在 Tjm下測試。
● I2t=I2TSM×tw/2式中, tw=正弦電流的一半。如果頻率為50Hz，則 I2t=0.005I2TSM (平方安·秒)。

MDX-L12M 二極管固態整流模塊

argument

MDC, MDA, MDK, MDX series
Load current: 25A, 55A, 70A, 90A, 110A, 130A, 160A, 200A, 250A, 300A, 400A, 500A, 800A, 1000A
Dimensions and mounting: Panel with plastic cover mounted solid state module, metal base and screw terminal; The corresponding “Product size” can be obtained according to the “Shape number” to obtain the corresponding overall size (click here)

Feature
● Electrical insulation between the chip and the backplane, the insulation voltage is 2500VAC
● International standard packaging
● “vacuum + hydrogen protection” welding technology
● Crimped structure, excellent thermal cycle and power cycle capability
● If the current is lower than 350A, the module is cooled by forced air cooling; If the current is greater than 400A, the cooling method can be air-cooled or water-cooled
● Easy to install, easy to apply and maintain
● Small size, light weight

Apply
● AC and DC motor control system
● Various rectifier power supplies
● Industrial heating control system
● Lighting system
● Non-contact switch
● Motor soft start
● Static reactive power compensator
● Electric welding machine
● Frequency converter
● UPS power supply
● Battery charging and discharging

Notes and frequently asked questions
● VDSM/VRSM=VDRM/VRRM+200V
Unless otherwise stated, IGT, VGT, IH, VTM, and VISO are all tested at 25°C, and other parameters in the table are tested at Tjm.
I2t=I2TSM×tw/2, tw= half of the sinusoidal current. If the frequency is 50Hz, then I2t=0.005I2TSM (square amperes · second).
