描述

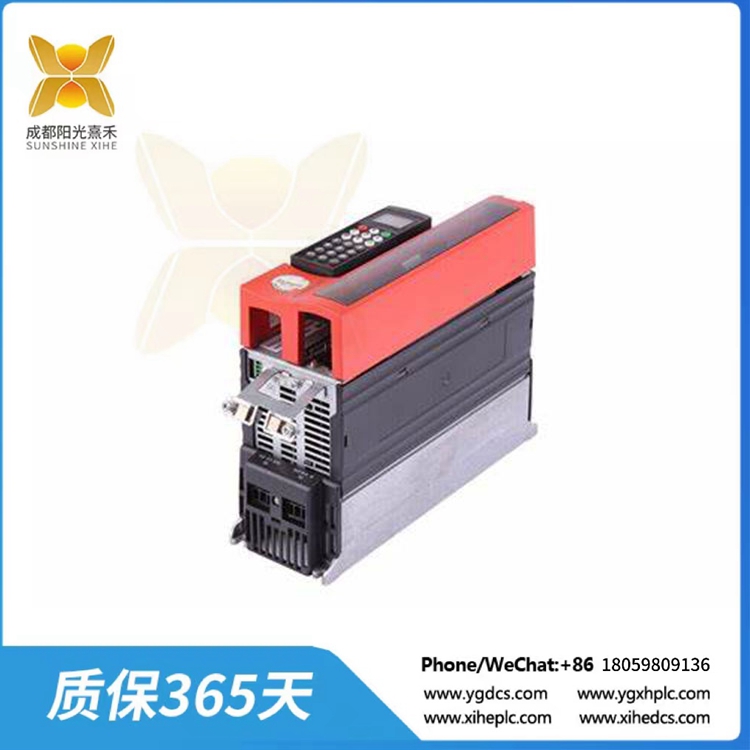

MDX61B0040-5A3-4-00 Eurodrive 電機逆變器

這SEW Eurodrive MDX61B0040-5A3-4-OT電機逆變器的使用和良好的條件。

MDX61B0040-5A3-4-OT配置:
?系列:可安裝選項(MDX61)
?版本:B (B)
?推薦電機功率:4.0 kW (0040)
?電源電壓:AC 380…500v (5)
?線側無線電干擾抑制:無線電干擾抑制C2 (A)
?連接類型:3相(3)
?象限:4Q(帶制動斬)(4)
?類型:應用程序(OT)

安裝選項:
?DFD11B現場總線接口DeviceNet選項卡
?DER11B編碼器輸入解析器/ HIPERFACE選項卡

特點:
可配置的逆變器適應您的應用
模塊化選擇范圍
應用范圍廣
功率范圍大:0.55 kW ~ 160 kW
可插拔業務模塊
異步電動機、同步電動機和直線電動機的控制
SEW Eurodrive MOVIDRIVE MDX 60B / 61B再生電源單元和電機逆變器配備了集成的IPOSplus定位和順序控制系統作為標準。它們可以用可用的選項進行擴展。該標準還包括根據EN954-1，安全類別3防止重新啟動的保護。型號名稱末尾的“00”表示標準設計。

除了標準設計的特點外，這些裝置還包括“電子凸輪”和“內部同步操作”技術功能。此外，您還可以使用MOVITOOLS MotionStudio軟件包中提供的所有應用模塊和技術單元。應用程序版本由“0T”在類型名稱后面表示。

應用程序版本逆變器還提供對應用程序模塊的訪問。應用模塊是標準化的控制程序，專門用于定位，繞組和控制驅動任務。應用模塊為您提供以下好處:
?高功能和用戶友好的操作界面。
?您所要做的就是輸入應用程序所需的參數。
?指導參數設置過程，而不是復雜的編程。
?無需冗長的培訓或熟悉，這意味著快速的項目規劃和啟動。
?在MOVIDRIVE中直接控制所有運動。
?去中心化的概念更容易實現

MDX61B0040-5A3-4-00 Eurodrive 電機逆變器

This SEW Eurodrive MDX61B0040-5A3-4-OT Motor Inverter is used and in excellent condition.

MDX61B0040-5A3-4-OT Configuration:
? Series: Options Can Be Installed (MDX61)
? Version: B (B)
? Recommended Motor Power: 4.0 kW (0040)
? Supply Voltage: AC 380 … 500 V (5)
? Radio Interference Suppression on the Line Side: Radio Interference Suppression C2 (A)
? Connection Type: 3-Phase (3)
? Quadrants: 4Q (with Brake Chopper) (4)
? Type: Application (OT)

Installed Options:
? DFD11B Fieldbus Interface DeviceNet Option Card
? DER11B Encoder Input Resolver / HIPERFACE Option Card

Features:
Configurable Inverter Adapted to Your Application
Modular Range of Options
Wide Range of Applications
Large Power Range: 0.55 kW to 160 kW
Pluggable Service Module
Control of Asynchronous Motors, Synchronous Motors and Linear Motors
The SEW Eurodrive MOVIDRIVE MDX 60B / 61B Regenerative Power Supply Units and Motor Inverters are equipped with the integrated IPOSplus positioning and sequence control system as standard. They can be expanded with the available options. The standard also includes protection against restart according to EN954-1, safety category 3. “00” at the end of the type designation indicates the standard design.

In addition to the features of the standard design, these units include the “electronic cam” and “internal synchronous operation” technology functions. Furthermore, you can use all the application modules available in the MOVITOOLS MotionStudio software package with the technology units. The application version is indicated by “0T” following the type designation.

The application version inverters also provide access to the application modules. Application modules are standardized control programs specifically for positioning, winding, and controlling drive tasks. The application modules offer you the following benefits:
? High functionality and user-friendly operator interface.
? All you have to do is enter the parameters needed for the application.
? Guided parameter setting process instead of complicated programming.
? No lengthy training or familiarization, which means quick project planning and startup.
? All motions are controlled directly in the MOVIDRIVE.
? Decentralized concepts can be implemented more easily
