描述

MPL-B540K-SJ24AAA 緊湊型伺服

羅克韋爾自動化165毫米MP低慣性交流電機是一個4000轉/分鐘的緊湊型伺服。它具有單個Turn (hyperface協議)編碼器反饋。這種交流同步伺服電機配備了24伏直流電制動器在電機，如果需要制動。此外，這款智能伺服裝置還配備了圓形卡口電纜連接器，這些連接器安裝在這款交流伺服電機上，額定電壓為230V AC。這款MPL系列無刷電機的長度為4英寸。

來自Allen-Bradley的MPL-B540K-SJ24AA伺服電機是一種165毫米幀長度的交流電機。它的額定轉速是4000轉，它屬于MPL系列從艾倫-布拉德利。MPl系列的低慣量電機可支持高達8000 rpm的額定轉速，0.16至18.6千瓦的輸出功率，2.3至1440磅的連續失速扭矩和6.6至2460磅的峰值失速扭矩。MPL-B540K-SJ24AA伺服電機的輸入額定值是400伏交流電。伺服電機的大約重量是33磅。額定輸出功率5.4千瓦。轉子慣量為0.014 lb-in-s2。MPL-B540K-SJ24AA伺服電機的峰值扭矩和連續失速扭矩規格分別為420磅/英寸和172磅/英寸。

MPL-B540K-SJ24AA伺服電機的磁體堆疊長度為101.6毫米。對于反饋，伺服電機帶有1024 sin/cos絕對單轉編碼器。這個集成的編碼器支持Hiperface協議。額外的伺服電機功能包括圓形卡口連接器，軸鍵，24伏直流制動器和IEC公制法蘭。如果需要軸密封，則需要從Allen-Bradley訂購可選的密封套件。安裝軸密封的優點包括防止細顆粒和水分，減少電機軸承的磨損。軸封應使用軸封套件附帶的潤滑劑潤滑。由于軸封容易磨損，建議定期檢查。根據其狀況，軸封的更換頻率可以從3個月到12個月不等。由第三方制造的軸密封套件不應與艾倫-布拉德利電機一起使用。

MPL-B540K-SJ24AAA 緊湊型伺服

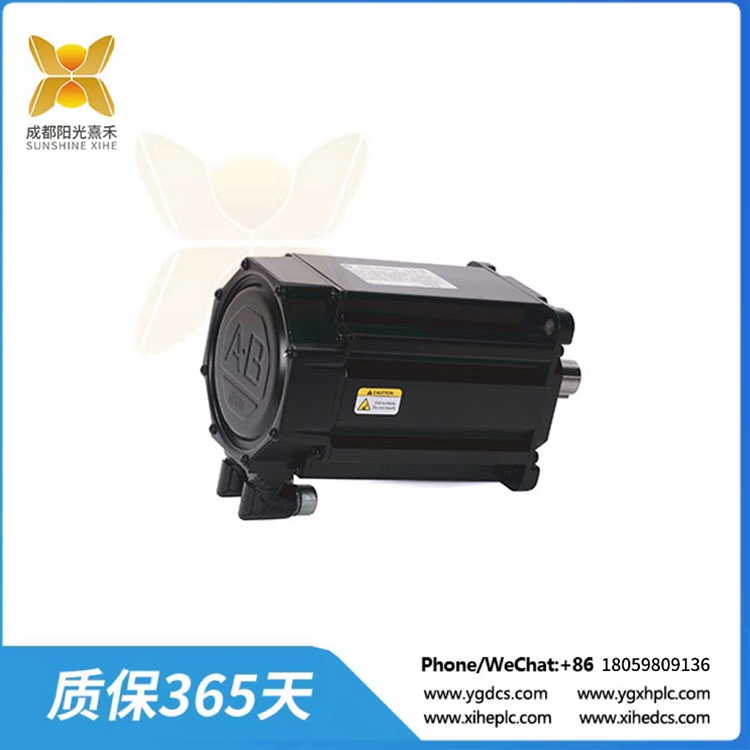

This Rockwell Automation 165 millimeter MP low inertia AC motor is a 4000 RPM compact servo. It features a single Turn (hyperface protocol) encoder feedback. This AC synchronous servo motor comes with a 24 VDC brake in the motor if braking is required. Additionally, this smart servo is equipped with circular bayonet cable connectors that are built onto this AC servo motor and comes with voltage rating of 230V AC. This MPL Series brushless motor in addition has a length of 4 in.

The MPL-B540K-SJ24AA servo motor from Allen-Bradley is an AC motor with a 165-millimeter frame length. Its rated speed is 4000 rpm and it belongs to MPL series from Allen-Bradley. Low-inertia motors from MPl series can support up to 8000 rpm of rated speed, 0.16 to 18.6 kilowatts of output power, 2.3 to 1440 pounds on an inch of continuous stall torque and 6.6 to 2460 pounds on an inch of peak stall torque. The input rating of the MPL-B540K-SJ24AA servo motor is 400 Volts AC. The approximate weight of the servo motor is 33 pounds. The output power rating is 5.4 kilowatts. The rotor inertia is 0.014 lb-in-s2. The specifications for the peak and continuous stall torque for the MPL-B540K-SJ24AA servo motor are 420 pounds on an inch and 172 pounds on an inch, respectively.

The magnet stack length for the MPL-B540K-SJ24AA servo motor is 101.6 millimeters. For feedback, the servo motor comes with a 1024 sin/cos absolute single-turn encoder. This integrated encoder supports the Hiperface protocol. Additional servo motor features include a circular bayonet connector, a shaft key, a 24 Volts DC brake, and an IEC metric flange. If a shaft seal is required, an optional seal kit will need to be ordered from Allen-Bradley. The advantages of installing a shaft seal include protection from fine particles and moisture, reducing wear and tear on the motor bearings. The shaft seals should be lubricated with the lubricant which comes with the shaft seal kits. Because shaft seals are subject to wear, periodic inspection is recommended. Depending on their condition, the replacement frequency for shaft seals can vary from 3 months to 12 months. Shaft seal kits made by third parties should not be used with Allen-Bradley motors.
