描述

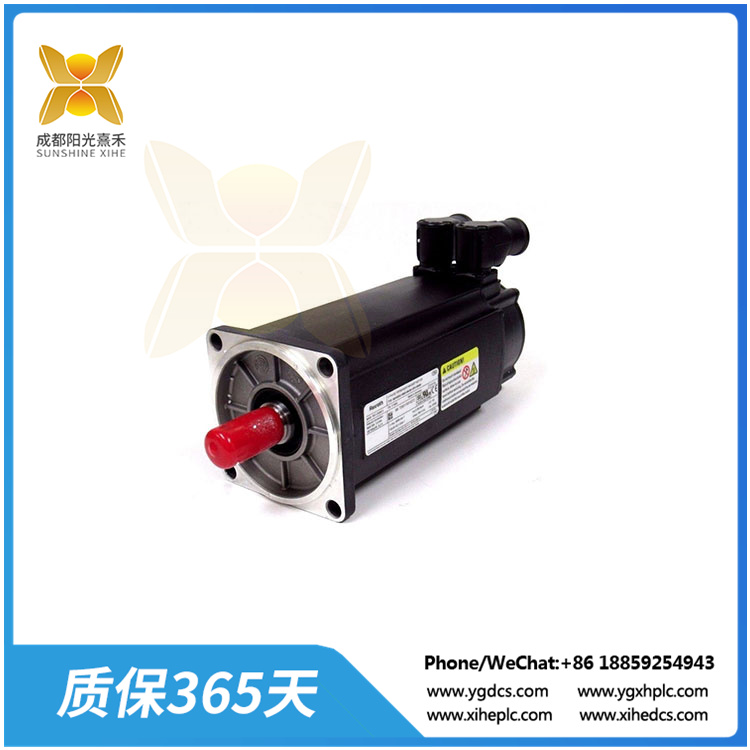

MSK050C-0600-NN-M1-UP1-NSNN 同步伺服電機MSK

IndraDyn S –伺服電機 MSK 滿足所有需求
MSK電機組的顯著特點就是功率范圍較寬，結構大小分級很細。這種同步伺服電機具有較高的扭矩密度，即使*大扭矩達到631 Nm，其結構也比較緊湊。

根據所需的精度，您可以在編碼器系統之間選擇低、中、高的分辨率。您既可以在單圈也可以在多圈結構中選擇使用所有不同編碼器系統。

MSK 電機可以通過眾多的其他選項進行擴裝，并根據所需 的要求進行精確裁減。

借此 MSK 系統也能在迄今伺服電機的傳統應用領域之外提供服務。

結合 IndraDrive 控制單元，能產生表現出色和靈活的可配置驅動系統，為新出現的驅動任務提供全新的解決方案組。多樣化的功能性選項補充了電機系統 MSK 的廣闊功率范圍。

除了不同的編碼器系統，還有眾多其他選項可供選擇，如鍵槽、制動裝置和側隙提高的回轉精度。如果在更高的持續功率下應用，可為軸向和徑向構造配置通風裝置。和 MSK 電機本身一樣，標準風扇電機也是依照防護等級 IP65 設計的，并配備了集成式溫度傳感器。這不僅提高了電機的可靠性。風扇經過認證的（UL 的 “Thermally Protected F”）自身安全性也省去了通過外部電機保護斷路器進行保護。借助于針對尺寸選擇的液體冷卻能滿足您對功率的高要求。

MSK050C-0600-NN-M1-UP1-NSNN 同步伺服電機MSK

IndraDyn S – Servo motor MSK meets all requirements
The remarkable feature of MSK generator is that the power range is wide and the structure size classification is very fine. This synchronous servo motor has a high torque density, even if the maximum torque reaches 631 Nm, its structure is relatively compact.

Depending on the desired accuracy, you can choose between low, medium, and high resolution encoder systems. You can choose to use all the different encoder systems in either single-turn or multi-turn structures.

MSK motors can be expanded with numerous other options and tailored precisely to the required requirements.

The MSK system can also provide services outside the traditional application areas of servo motors to date.

Combined with the IndraDrive control unit, the result is a highly performing and flexible configurable drive system that offers a whole new set of solutions for emerging drive tasks. The wide power range of the motor system MSK is complemented by a variety of functional options.

In addition to different encoder systems, there are numerous other options to choose from, such as keyways, braking devices and side backlash for improved rotation accuracy. For higher continuous power applications, ventilation can be configured for both axial and radial structures. Like the MSK motor itself, the standard fan motor is designed in accordance with the protection class IP65 and is equipped with an integrated temperature sensor. This not only improves the reliability of the motor. The fan’s certified safety (UL’s “Thermally Protected F”) also eliminates the need for protection by an external motor protection circuit breaker. Meet your high power requirements with size-specific liquid cooling.
