描述

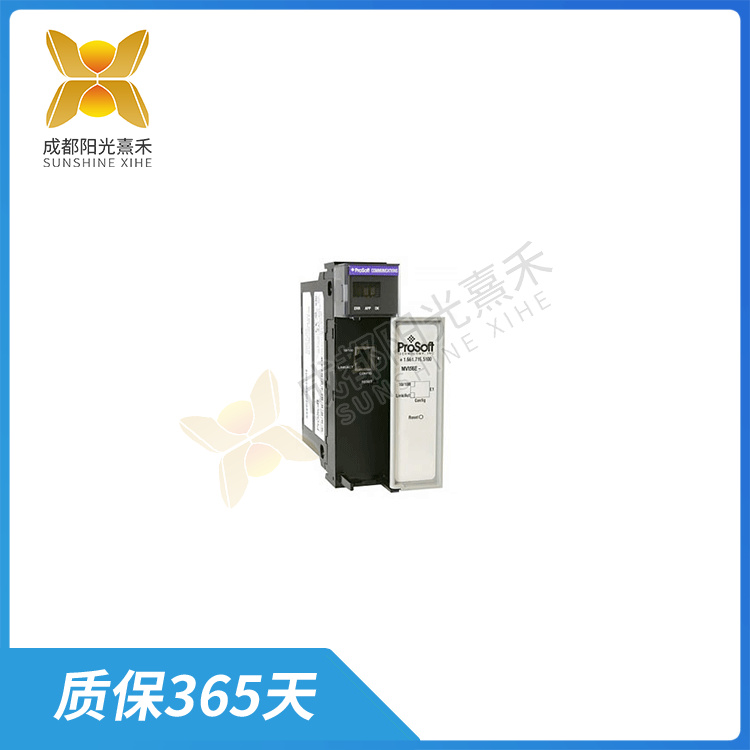

MVI56E-61850S 服務器通信組件

MVI56E-61850S是一款以太網通信模塊，主要用于Rockwell Automation的ControlLogix PACs（可編程自動化控制器）與IEC 61850標準的以太網之間的通信。這使得非智能的變電站設備，如變壓器和開關設備，可以將其數據作為IEC 61850 IED（智能電子設備）提供給SCADA（監控和數據采集）系統。

該模塊具有多種通信功能，包括RS232、RS422、RS485等串口通信方式，以及有線和無線以太網通信。此外，它還支持GPRS、CDMA、GSM等移動網絡標準。這使得MVI56E-61850S能夠適應多種不同的通信環境和需求。

在開發方面，該模塊提供了豐富的組件和控件，構成了強大的HMI（人機界面）開發系統。同時，它還支持面向?qū)ο缶幊谭绞?，?nèi)置間接變量、中間變量、數據庫變量，支持自定義函數和自定義菜單。這使得開發者能夠更加方便、靈活地進行軟件開發。

此外，MVI56E-61850S還具有開放性，其軟件為開放式體系結構，支持DDE、OPC、ODBC/SQL、AcTIveX、DNA等標準。這使得該模塊能夠與其他系統進行無縫集成，提高了系統的互操作性和可擴展性。

在硬件方面，MVI56E-61850S的密度范圍從4點到32點，模塊率為IP20、I類、2/ZONE 2。某些模塊還具有現場側診斷、電子熔斷或單獨隔離的輸入/輸出功能。此外，該模塊使用ControlLogix電源1756機箱直接提供1.2V、3.3V、5V和24V直流電源。

需要注意的是，雖然MVI56E-61850S具有多種功能和優點，但在實際應用中，還需要根據具體的需求和環境進行選擇和配置。同時，也需要參考相應的產品手冊或技術文檔，以確保正確、安全地安裝和使用。

MVI56E-61850S 服務器通信組件

The MVI56E-61850S is an Ethernet communication module for communication between Rockwell Automation’s ControlLogix PACs (Programmable Automation Controller) and IEC 61850 standard Ethernet. This allows non-intelligent substation equipment, such as transformers and switchgear, to feed their data to SCADA (Supervisory Control and Data Acquisition) systems as IEC 61850 IED (Intelligent Electronic Devices).

The module has a variety of communication functions, including RS232, RS422, RS485 and other serial communication modes, as well as wired and wireless Ethernet communication. In addition, it also supports GPRS, CDMA, GSM and other mobile network standards. This enables the MVI56E-61850S to adapt to many different communication environments and needs.

In terms of development, the module provides a wealth of components and controls that constitute a powerful HMI (Human machine interface) development system. At the same time, it also supports object-oriented programming, built-in indirect variables, intermediate variables, database variables, support for custom functions and custom menus. This makes it more convenient and flexible for developers to develop software.

In addition, the MVI56E-61850S also has an open software architecture, supporting DDE, OPC, ODBC/SQL, AcTIveX, DNA and other standards. This enables the module to be seamlessly integrated with other systems, improving the interoperability and scalability of the system.

In terms of hardware, the MVI56E-61850S has a density range from 4 points to 32 points, with module rates of IP20, Class I, 2/ZONE 2. Some modules also have input/output functions for field side diagnostics, electronic fusing, or separate isolation. In addition, the module uses the ControlLogix power Supply 1756 chassis to directly supply 1.2V, 3.3V, 5V, and 24V DC power supplies.

It should be noted that although the MVI56E-61850S has a variety of functions and advantages, in practical applications, it also needs to be selected and configured according to specific needs and environments. At the same time, you also need to refer to the corresponding product manual or technical documentation to ensure correct and safe installation and use.
