描述

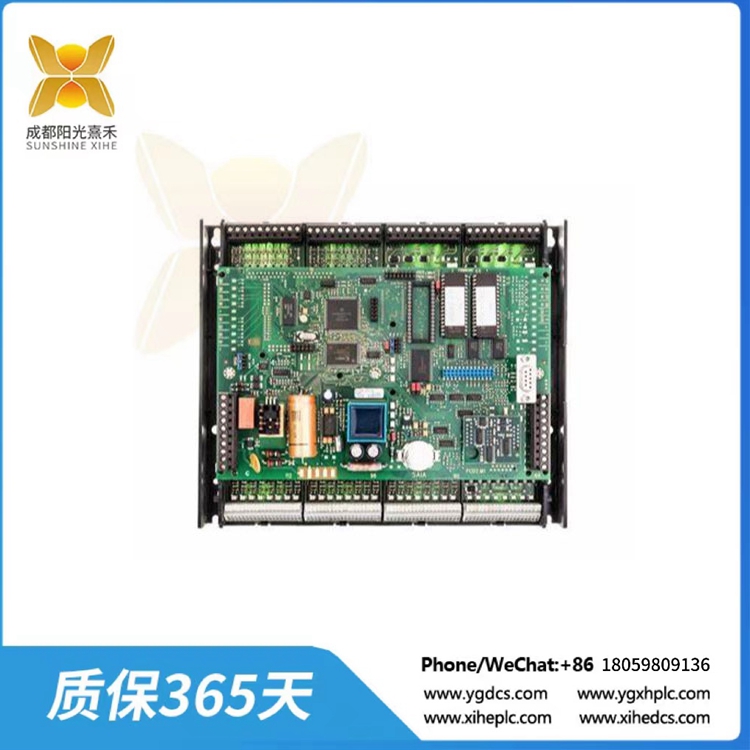

PCD2-M110-CPU 中央處理器

圖形索引從PCD1/PCD2系列的硬件手冊中挑選出一些亮點，并允許您單擊組件/連接器直接跳轉到相應的部分。從目錄跳轉到任何部分的功能仍有待完成。

本手冊涵蓋了PCD1和PCD2組件的技術方面。經常使用的術語如下:
●CPU中央處理器:賽亞PCD?的核心
遠程I/ o:通過Profibus等現場總線連接到CPU的輸入和輸出
本地I/O:通過I/O總線或RIO(即盡可能短的電纜)連接到CPU。
模塊輸入/輸出元件，安裝在外殼內，與PCD1/2系統相匹配
模塊包含cpu、io或io，模塊可以連接到這些模塊上
概述部分的目的是介紹規劃和安裝具有PCD1/2組件的控制系統的要點。它包括以下主題:
●規劃應用程序
●布線
硬件、軟件、配置、維護和故障排除的詳細信息將在單獨的章節中描述。

在規劃PCD1/2應用時應考慮以下幾個方面:
●I/O模塊從+ 5v和V+電源獲取的內部負載電流不得超過cpu指定的最大電源電流
●CPU類型決定最大模塊數量
●I/O總線的總長度受技術因素限制;越短越好在計劃申請時，我們推薦以下程序:
?請根據實際情況選擇io模塊。

PCD2-M110-CPU 中央處理器

The Graphic index picks out some highlights from the hardware manuals of the PCD1/PCD2 series and allows you to click components/connectors to jump directly to the corresponding section. The ability to jump from the table of contents to any section is still to be completed.

This manual covers the technical aspects of PCD1 and PCD2 components. The following terms are commonly used:
●CPU Central processing unit: the core of Saiya PCD?
Remote I/ o: The input and output connected to the CPU via a fieldbus such as Profibus
Local I/O: Connect to the CPU via the I/O bus or RIO(i.e. the shortest possible cable).
The module input/output element, which is mounted in the housing, matches the PCD1/2 system
The module contains the cpu, io, or io, to which the module can be attached
The purpose of the overview section is to introduce the essentials of planning and installing a control system with PCD1/2 components. It covers the following topics:
● Planning applications
● Wiring
Details of hardware, software, configuration, maintenance, and troubleshooting are described in separate sections.

The following aspects should be considered when planning PCD1/2 applications:
The internal load current obtained by the I/O module from the + 5v and V+ power supply shall not exceed the maximum power supply current specified by the cpu
●CPU type determines the maximum number of modules
● The total length of the I/O bus is limited by technical factors; The shorter the better when planning applications, we recommend the following procedures:
? Select the I/O module as required.
