描述

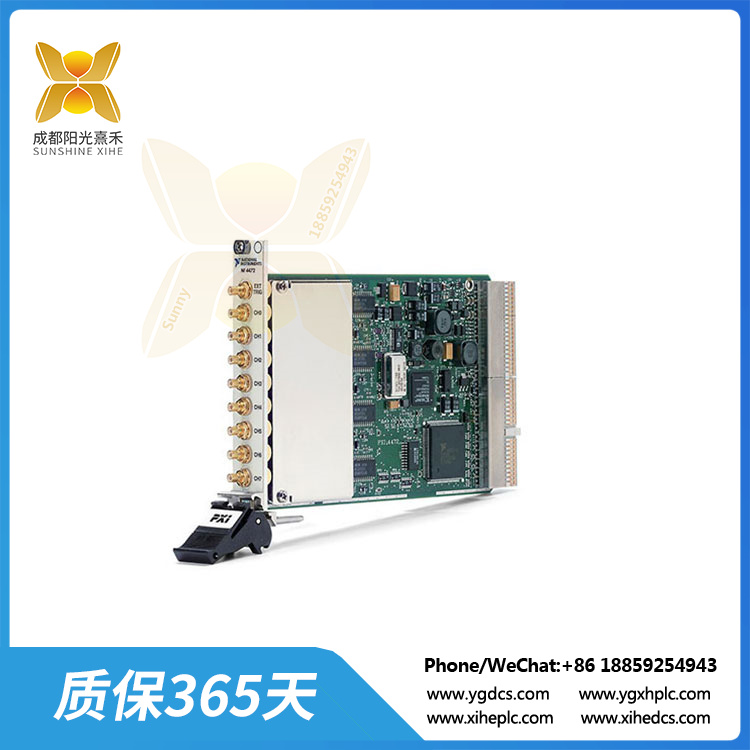

PCI-4472 數據采集卡

PCI-4472是一款數據采集卡，主要用于聲音和振動測試應用。它具有24位的模數轉換器，是當前這類應用中最為精確的產品之一。在帶寬為45千赫茲的范圍內，PCI-4472具有120分貝的動態范圍。該板卡能夠同時采樣8個通道的模擬輸入信號，并具有嵌入式可編程的ICP，用于加速度計及麥克風的信號調理。

此外，PCI-4472還具有IEPE調理功能，可以通過軟件配置±10V的電壓范圍。其最高采樣速率可以達到102.4kS/s，具有8路同步采樣模擬輸入通道。這款數據采集卡在振動和低頻交流測量方面提供了最優化的方案。

請注意，數據采集和處理是一個相對復雜的領域，涉及到硬件、軟件以及信號處理等多個方面。因此，在使用PCI-4472或其他類似的數據采集卡時，建議遵循制造商的安裝和使用指南，以確保正確配置和連接，從而獲得準確和穩定的數據采集結果。同時，根據具體的應用需求，可能還需要進行相關的軟件編程和配置，以實現對采集數據的處理、分析和存儲。

PCI-4472 數據采集卡

The PCI-4472 is a data acquisition card designed primarily for sound and vibration test applications. It has a 24-bit analog-to-digital converter and is one of the most accurate products available for this type of application. With a bandwidth of 45 kilohertz, the PCI-4472 has a dynamic range of 120 decibels. The board is capable of sampling 8 channels of analog input signals simultaneously and has an embedded programmable ICP for signal conditioning of accelerometers and microphones.

In addition, the PCI-4472 has an IEPE conditioning function that allows a voltage range of ±10V to be configured via software. It has a maximum sampling rate of 102.4kS/s and 8 synchronous sampling analog input channels. This data acquisition card provides optimal solutions for vibration and low frequency AC measurements.

Please note that data acquisition and processing is a relatively complex field involving hardware, software, and signal processing. Therefore, when using PCI-4472 or other similar data acquisition cards, it is recommended to follow the manufacturer’s installation and usage guidelines to ensure proper configuration and connectivity for accurate and stable data acquisition results. At the same time, according to the specific application requirements, it may also be necessary to carry out related software programming and configuration to realize the processing, analysis and storage of the collected data.
