描述

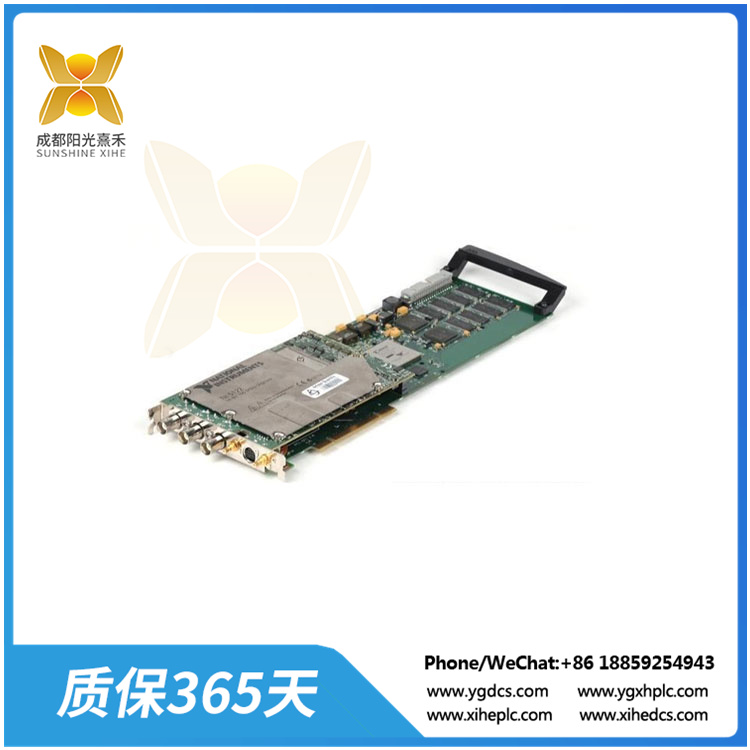

PCI-5122 示波器設備

PCI-5122是National Instruments（簡稱NI）生產的一款示波器設備，屬于靈活的軟件定義儀器，可用于時域和頻域測量，并提供工業標準形式，如PCI和USB。

PCI-5122具有軟件可選的動態范圍，可在板載內存中采集超過100萬個波形，從而使其成為時域和頻屏分析的理想選擇。此外，它擁有50多個內置測量與分析函數，這些函數直接在驅動軟件中編程生成，并在NI LabVIEW和LabWindows/CVI中可進一步擴展到400個。

在功能方面，PCI-5122具有軟件可選的動態范圍，包括50歐姆和1 M歐姆的輸入阻抗選項，以及200 mVpp到20 Vpp的輸入范圍。其14位高分辨率保證了高精度的測量結果。此外，PCI-5122還包括NI頻譜測量工具包（僅32MB和256MB的型號），可額外提供復雜的功率譜、峰值功率和頻率、帶內功率、鄰頻功率、三維光譜圖等分析功能。

另外，PCI-5122可能還有其他版本或變種，例如PCI-5122EX，具有特定的性能參數如100毫秒/秒的采樣率等。因此，在選擇具體型號時，需要根據實際的應用需求進行考慮。

總的來說，PCI-5122是一款功能強大、靈活多樣的示波器設備，適用于各種需要高精度時域和頻域測量的應用場景。

PCI-5122 示波器設備

Pci-5122 is an oscilloscope device from National Instruments (NI), a flexible software-defined instrument that can be used for time – and frequence-domain measurements and is available in industry standard forms such as PCI and USB.

The PCI-5122 has a software-selectable dynamic range to capture more than 1 million waveforms in on-board memory, making it ideal for time – and frequency-screen analysis. In addition, it has more than 50 built-in measurement and analysis functions, which are programmed directly in the driver software and can be further expanded to 400 in NI LabVIEW and LabWindows/CVI.

In terms of functionality, the PCI-5122 has a software-selectable dynamic range, including input impedance options of 50 ohm and 1 M ohm, and an input range of 200 mVpp to 20 Vpp. Its high resolution of 14 bits guarantees high precision measurement results. In addition, the PCI-5122 includes the NI Spectrum Measurement Kit (32MB and 256MB models only), which provides additional complex power spectrum, peak power and frequency, in-band power, adjacence-frequency power, three-dimensional spectrogram analysis, and more.

In addition, there may be other versions or variants of PCI-5122, such as PCI-5122EX, with specific performance parameters such as a sampling rate of 100 ms/SEC. Therefore, when selecting a specific model, it is necessary to consider it according to the actual application requirements.

Overall, the PCI-5122 is a powerful and versatile oscilloscope device for a variety of applications requiring high-precision time and frequency domain measurements.
