描述

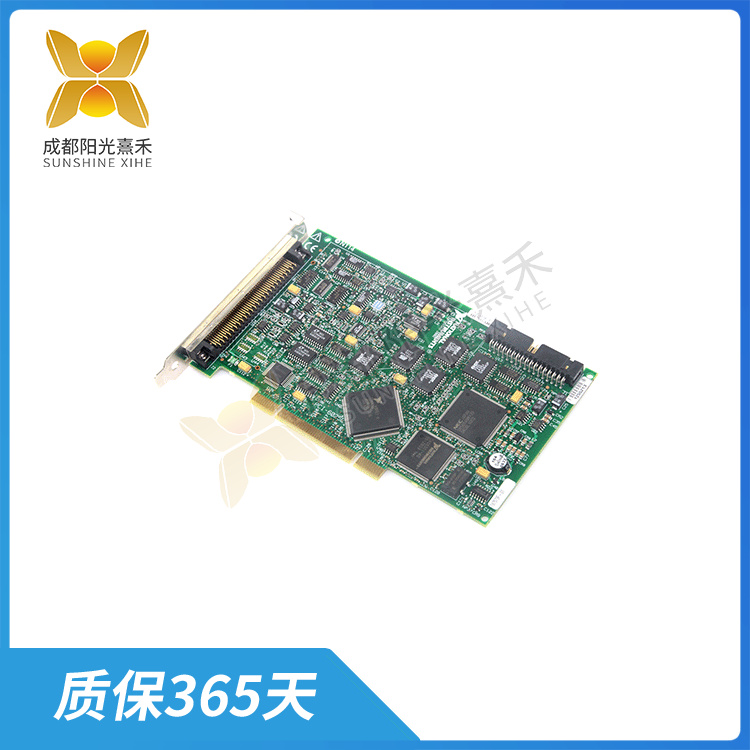

PCI-6025E 多功能數據采集卡

PCI-6025E是一款多功能數據采集卡，它可以直接插在目標機的總線擴展槽內使用。這款數據采集卡具有多個端口，用于接收和發送不同類型的信號，包括起步/換檔控制信號、離合器位移信號、電機轉速控制信號、電機轉向控制信號、剎車信號、油門開度信號等。

其中，起步/換檔控制信號端口的設計特別值得注意。當控制信號為0時，電機響應，使離合器快速分離，這是因為當PCI-6025E上電時，I/O端口都處于高電平狀態（不穩定），如果起步/換檔是高電平動作，系統便會處于不穩定工作狀態。這種設計確保了系統的穩定性和可靠性。

此外，PCI-6025E數據采集卡通常用于需要精確控制和數據采集的應用場景，如汽車自動離合器控制系統等。在這些系統中，PCI-6025E通過接收和處理各種傳感器和執行器的信號，實現對系統的精確控制和監測。

總的來說，PCI-6025E是一款功能強大、性能穩定的數據采集卡，廣泛應用于各種需要數據采集和控制的領域。如需更多關于PCI-6025E的詳細信息，建議查閱相關的技術文檔或聯系制造商的技術支持部門。

PCI-6025E 多功能數據采集卡

PCI-6025E is a multi-function data acquisition card, which can be directly inserted into the bus expansion slot of the target computer. This data acquisition card has multiple ports for receiving and sending different types of signals, including start/shift control signals, clutch displacement signals, motor speed control signals, motor steering control signals, brake signals, throttle opening signals, and more.

Among them, the design of the start/shift control signal port is particularly noteworthy. When the control signal is 0, the motor responds, making the clutch disengage quickly, this is because when the PCI-6025E is powered on, the I/O ports are in a high state (unstable), if the start/shift is a high level action, the system will be in an unstable working state. This design ensures the stability and reliability of the system.

In addition, PCI-6025E data acquisition cards are often used in applications that require precise control and data acquisition, such as automotive automatic clutch control systems. In these systems, PCI-6025E achieves precise control and monitoring of the system by receiving and processing signals from various sensors and actuators.

Overall, the PCI-6025E is a powerful and stable data acquisition card that is widely used in a variety of areas requiring data acquisition and control. For more detailed information about PCI-6025E, it is recommended to consult the relevant technical documentation or contact the manufacturer’s technical support department.
