描述

PCI-6230 可以與其他設備或系統進行無縫連接和數據交換

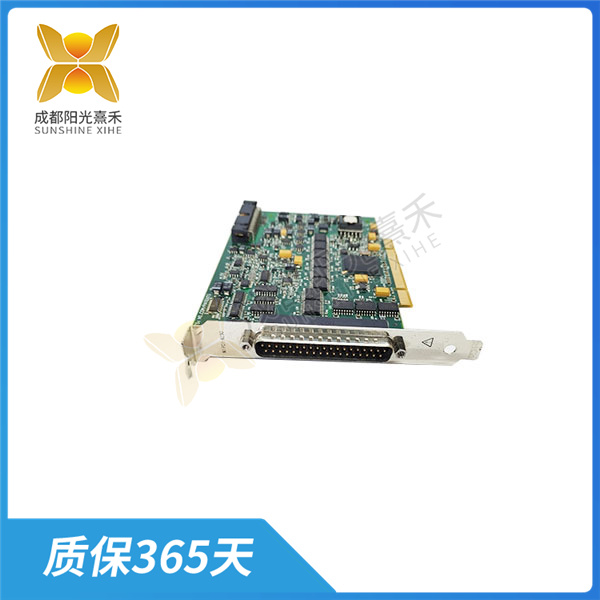

PCI-6230 帶隔離的M系列多功能數據采集（DAQ）板卡具有以下特點：

高精度：該板卡提供高精度的模擬輸入，能夠提供18位模擬輸入精度，相當于5位的直流測量精度。

優化性能：該板卡采用NI-PGIA 2放大器技術，具有優化的高線性和18位快速建立時間的特性，確保了測量的精確度。此外，其可編程低通濾波器能降低高頻率噪聲并減少頻率混疊。

強大的功能：M系列設備的模擬輸出通道具有可編程偏移及電壓參考，使得所有自定義信號都能達到16位最大精度。而且，其數字信號輸出、數字I/O線、計數器等功能使得該設備適用于設備測試和特征記述、要求達到儀器級精確度的感應器和信號測量等應用。

關聯（Correlated）DIO：該板卡具有8條時鐘線，10 MHz的關聯（Correlated）DIO，支持模擬和數字觸發。

強大的軟件支持：該板卡提供NI-DAQmx驅動軟件和NI LabVIEW SignalExpress交互式數據記錄軟件，便于用戶進行數據采集、處理和分析。

隔離性能：該板卡具有1.400 Vrms/1,950 VDC通道至總線間隔離，可承受5s的隔離保護，提供了瞬態安全、去噪、降低接地循環、抑制共模電壓等功能。

兼容性強：該板卡可在各種應用領域中使用，如科學研究、工業自動化、實驗室測試和測量等。PCI-6230還可以與其他設備或系統進行無縫連接和數據交換。

綜上所述，PCI-6230 帶隔離的M系列多功能數據采集（DAQ）板卡具有高精度、優化性能、強大功能、關聯（Correlated）DIO、強大的軟件支持、隔離性能強和兼容性強等特點。在選擇和使用該板卡時，需要考慮信號類型、采樣率和精度、接口類型、控制和同步需求、驅動和軟件支持以及成本和預算等因素。

PCI-6230 可以與其他設備或系統進行無縫連接和數據交換

The PCI-6230 M Series Multi-Function Data Acquisition (DAQ) board with isolation has the following features:

High precision: The board provides high precision analog input, capable of providing 18 bit analog input accuracy, equivalent to 5 bit DC measurement accuracy.

Optimized performance: The board uses NI-PGIA 2 amplifier technology with optimized high linearity and 18-bit fast build up time to ensure measurement accuracy. In addition, its programmable low-pass filter reduces high frequency noise and reduces frequency aliasing.

Powerful features: The analog output channels of the M-Series devices feature programmable offset and voltage reference, enabling all custom signals to achieve maximum 16-bit accuracy. In addition, its digital signal output, digital I/O lines, counters and other functions make the device suitable for equipment testing and characterization, sensors and signal measurement applications requiring instrument level accuracy.

Correlated DIO: The board has 8 clock lines, 10 MHz Correlated DIO, and supports analog and digital triggering.

Powerful software support: The board provides NI-DAQMX driver software and NI LabVIEW SignalExpress interactive data recording software, which is convenient for users to collect, process and analyze data.

Isolation performance: The board has 1.400 Vrms/1,950 VDC channel to bus isolation, can withstand 5s isolation protection, provides transient safety, noise reduction, ground cycle reduction, common mode voltage suppression and other functions.

Strong compatibility: The board can be used in a variety of applications, such as scientific research, industrial automation, laboratory testing and measurement. The PCI-6230 can also seamlessly connect and exchange data with other devices or systems.

In summary, the PCI-6230 M Series Multi-function Data acquisition (DAQ) board with isolation features high precision, optimization performance, powerful features, Correlated DIO, strong software support, strong isolation performance and compatibility. When selecting and using the board, factors such as signal type, sampling rate and accuracy, interface type, control and synchronization requirements, driver and software support, and cost and budget need to be considered.
