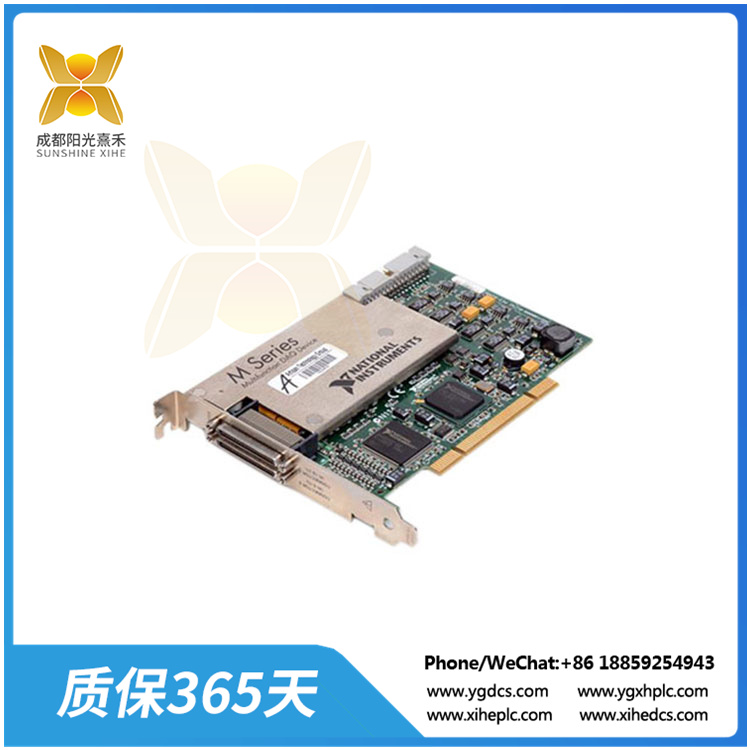

PCI-6259 多功能I/O設備
32路AI（16位，1.25 MS/s），4路AO（2.8 MS/s），48路DIO PCI多功能I/O設備—PCI-6259提供模擬I/O、關聯數字I/O、兩個32位計數器/定時器以及模擬和數字觸發。該設備為從實驗室自動化、研究、設計驗證/測試到制造測試等各種應用提供了低成本的可靠DAQ功能。SCC或SCXI信號調理模塊可用于為設備添加傳感器和高電壓測量功能。隨附的NI-DAQmx驅動程序和配置實用程序簡化了配置和測量。
美國國家儀器公司PCI-6259多功能DAQ
PCI-6259是美國國家儀器公司的多功能數據采集設備。這個設備的零件號是779072-01。PCI-6259是一個16位M系列器件。該設備為測量要求提供了優化的解決方案。PCI-6259設備集成了NI-STC 2系統控制器。該控制器保證了高性能。為了獲得更高的精度，PCI-6259器件中提供了NI-MCal校準技術。
PCI-6259多功能DAQ具有32個單端/16個差分模擬輸入端子。輸入終端是軟件可選的。采樣率取決于選擇的模式(單/多通道)。最大采樣速率分別為1.25 MS/s和1 MS/s。輸入通道工作在+0.1 V到+10V的范圍內。當PCI-6259設備接通電源時，輸入端阻抗>10 GΩ。當設備關閉電源時，它減少到820 Ω。輸入通道具有低噪聲水平。串?dāng)_的電平為- 75db。PCI-6259 I/O器件具有4個16位模擬輸出終端，傳輸數據的速率為2.86 MS/s。輸出端的時序分辨率為50ns。輸出端的超速電流為20ma。當設備上電時，出現1.5 V的故障，持續1.5秒。PCI-6259設備還在輸入和輸出端集成了FIFO緩沖器。該設備有48個數字I/O通道。
PCI-6259包含兩個計數器/定時器。定時器的分辨率為32位，頻率為80mhz。計數器的FIFO緩沖區可以存儲兩個樣本。PCI-6259也有一個頻率發生器和兩個基本時鐘。這些時鐘有固定的頻率:100千赫和10兆赫。頻率發生器的輸出被傳輸?shù)剿蠵FI或RTSI終端。PCI-6259使用NI-DAQmx驅動軟件運行，需要先安裝NI-DAQmx驅動軟件。安裝軟件后，用戶需要安裝對其選擇的應用程序開發環境的支持，該環境可以是LabVIEW、LabWindows/CVI、C/ c++、c#或Visual Basic . net。
PCI-6259 多功能I/O設備
32-way AI (16-bit, 1.25 MS/s), 4-way AO (2.8 MS/s), 48-way DIO PCI Multi-function I/O device – PCI-6259 offers analog I/O, associated digital I/O, two 32-bit counters/timers, and analog and digital triggers. The device provides low-cost, reliable DAQ capabilities for a variety of applications ranging from laboratory automation, research, design validation/testing to manufacturing testing. SCC or SCXI signal conditioning modules can be used to add sensors and high voltage measurement capabilities to the device. The included NI-DAQmx driver and configuration utility simplify configuration and measurement.
National Instruments PCI-6259 Multi-function DAQ
PCI-6259 is a multi-function data acquisition device from National Instruments. The part number of this equipment is 779072-01. The PCI-6259 is a 16-bit M-series device. The equipment provides an optimized solution for measurement requirements. The PCI-6259 device integrates the NI-STC 2 system controller. The controller guarantees high performance. For higher accuracy, NI-MCal calibration technology is available in the PCI-6259 device.
The PCI-6259 multi-function DAQ features 32 single-ended /16 differential analog input terminals. The input terminal is software optional. The sampling rate depends on the mode selected (single/multi-channel). The maximum sampling rates are 1.25 MS/s and 1 MS/s, respectively. The input channel operates in the range of + 0.1V to +10V. When the PCI-6259 device is powered on, the input impedance is greater than 10 GΩ. When the device is powered off, it decreases to 820Ω. Input channels have low noise levels. The level of crosstalk is -75db. The PCI-6259 I/O device has four 16-bit analog output terminals and transmits data at a rate of 2.86 MS/s. The timing resolution of the output is 50ns. The overspeed current at the output is 20ma. When the device is powered on, a 1.5V fault occurs for 1.5 seconds. The PCI-6259 device also incorporates FIFO buffers at both the input and output ends. The device has 48 digital I/O channels.
PCI-6259 contains two counters/timers. The timer has a resolution of 32 bits and a frequency of 80mhz. The FIFO buffer of the counter can store two samples. The PCI-6259 also has a frequency generator and two basic clocks. These clocks have fixed frequencies :100 KHZ and 10 MHZ. The output of the frequency generator is transmitted to all PFI or RTSI terminals. The PCI-6259 runs using the NI-DAQmx driver. You need to install the NI-DAQmx driver. After installing the software, users need to install support for the application development environment of their choice, which can be LabVIEW, LabWindows/CVI, C/ C ++, C #, or Visual Basic.NET.
