描述

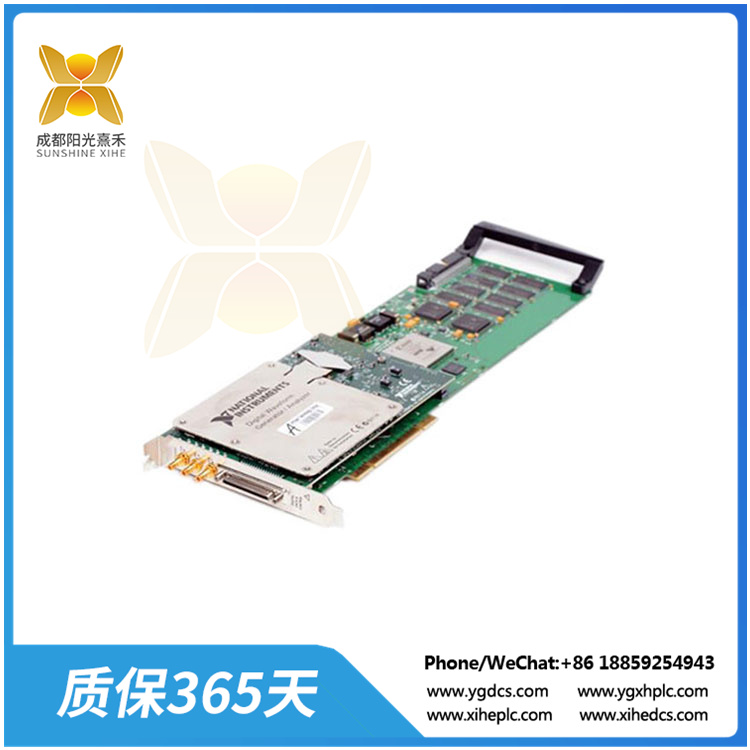

PCI-6541 數字波形發生器/分析儀

PCI-6541 數字波形發生器/分析儀

50 MHz, 32 channel digital waveform device pci-6541 is a digital waveform generator and analyzer for connecting 32 single-ended digital pins. The device is capable of sampling digital waveforms at rates up to 50 MHz, which can be compared with commonly used transistor-transistor logic (TTL) voltage levels. pci?6541 also has advanced synchronization capabilities.

Settings:
8Mb/ channel onboard memory
?50mhz maximum clock rate

Part number :191431A-02, 77888-02

Features:
Maximum clock rate of 50 or 100mhz
32 channels with direction control per channel
NI Synchronization and Memory Core (SMC) Device
1,8 or 64 Mb/ channel onboard memory
pci – 6541
The NI PCI-6541 is a 50 MHz digital waveform generator/analyzer for digital electronic interfaces. The board has 32 channels, each with direction control and deep on-board memory, triggering and mode sorting. With the NI-HSDIO driver, the board can be configured with 5.0, 3.3, 2.5, or 1.8V logic. You can also use the NI PCI-6541 with the NI Digital Waveform Editor, an interactive software tool for creating and editing digital waveforms. With the SMC architecture, you can create mixed-signal test systems with digitizers, arbitrary waveform generators, and other digital waveform generators/analysers, or you can synchronize multiple digital devices to build low-tilt multichannel systems for connecting high-pin number digital ics and electronics.

pci – 6542
The NI PCI-6542 is a 100mhz digital waveform generator/analyzer for connecting digital electronics. The board has 32 channels, each with direction control and deep on-board memory, triggering and mode sorting. With the NI-HSDIO driver, the board can be configured with 5.0, 3.3, 2.5, or 1.8V logic. You can also use the NI PCI-6542 with the NI Digital Waveform Editor, an interactive software tool for creating and editing digital waveforms. With SMC, you can create mixed-signal test systems using digitizers, arbitrary waveform generators, and other digital waveform generators/analysers, or you can synchronize multiple digital devices to build low-tilt multichannel systems for connecting high-pin count digital ics and electronics.
