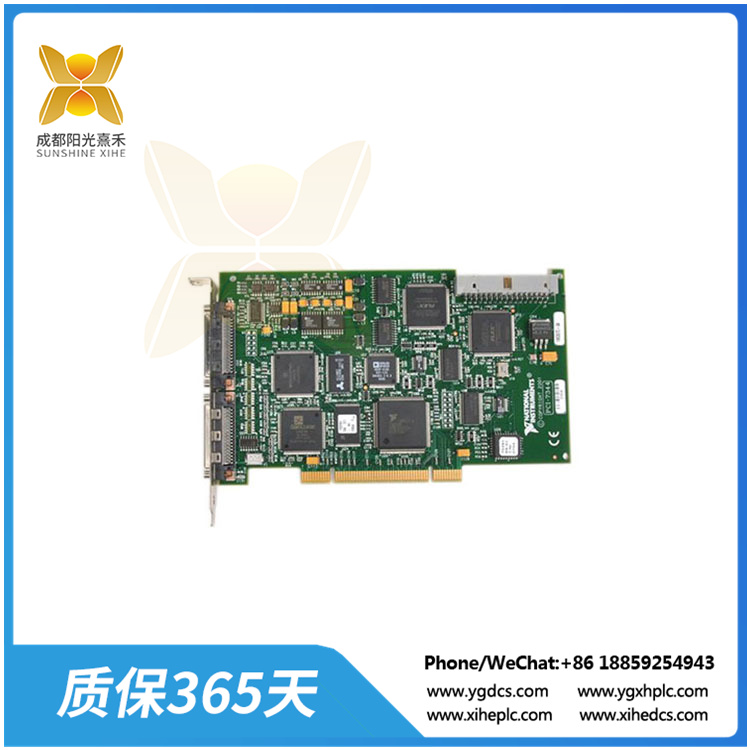

PCI-7344 運動控制器設備
4軸步進/伺服運動控制器設備- PCI – 7344適用于簡單和復雜的運動應用。PCI – 7344包括兩個處理器和一個帶有多軸插值的實時板載系統。PCI – 7344為嵌入式實時運動操作或以主機為中心的編程環境提供混合運動軌跡控制和完全協調的圓形、線性、點對點、齒輪和矢量空間控制。
PCI – 7344還為復雜的運動提供輪廓控制。板載CPU采用嵌入式實時操作系統，實現基于事件的多任務控制。通過這種方法，多個運動控制程序和進程可以在控制器上同步運行，獨立于主機PC，并且沒有外部交互，除非主機程序或用戶被配置為主動啟動交互。
美國國家儀器公司的PCI-7344(部件號:778916-04)具有3D輪廓，3D線性和圓形插值，以及高達62 ms的PID環路更新速率，是一款高質量的運動控制器，用于步進/伺服控制應用。該設備非常適合需要快速、輕松地創建強大應用程序的機器制造商和最終用戶。該裝置具有獨特的結構，DSP和CPU一起工作，為用戶提供優化的閉環控制，運動命令處理和自動化系統控制。NI PCI-7344運動控制板具有集成的系統安全機制。例如，看門狗定時器功能的超時時間為63毫秒，會將單板復位到啟動狀態。
NI PCI-7344具有62.5至500μs/樣本軌跡更新范圍，并提供62.5μs/軸最大更新范圍。該運動控制器使用戶能夠在0至5 V的電壓范圍內獲得4 MHz最大脈沖速率和120 ns最大脈沖寬度的步進輸出。
PCI-7344國家儀器公司提供4個8位數字I/O端口;每個位可以單獨編程。對于運動控制和數字I/O，提供了兩個獨立的68針雌性高密度VHDCI I/O連接器。該運動控制器中包含的運動I/O連接器包含控制多達四軸步進和伺服運動所需的所有必要信號，包括:抑制輸出，斷點輸出，電機命令輸出，反向限制輸入，home限制輸入等。對于NI運動控制器PCI-7344和其他國家儀器設備之間的高速連接，用戶可以利用提供的RTSI連接器。
PCI-7344 運動控制器設備
4-axis stepper/servo motion controller device – PCI?7344 is suitable for both simple and complex motion applications. PCI?7344 includes two processors and a real-time onboard system with multi-axis interpolation. PCI?7344 provides hybrid motion trajectory control and fully coordinated circular, linear, point-to-point, gear, and vector space control for embedded real-time motion operations or host-centric programming environments.
PCI?7344 also provides contour control for complex movements. The on-board CPU uses an embedded real-time operating system to implement event-based multi-task control. With this approach, multiple motion control programs and processes can run synchronously on the controller, independent of the host PC, and without external interaction, unless the host program or user is configured to actively initiate the interaction.
Featured with 3D contouring, 3D linear and circular interpolation, and up to 62 ms PID loop update rate, the National Instruments PCI-7344 (Part number: 778916-04) is a high-quality Motion Controller for stepper/servo control applications. This device is well-suited for machine builders and end users who require the capability of creating powerful applications swiftly and effortlessly. This device has a unique construction in which the DSP and CPU operate together to provide the user with optimized closed-loop controlling, motion command processing, and automated systems controlling. The NI PCI-7344 Motion Control Board comes with integrated system safety mechanisms. For example, the watchdog timer function has 63 ms timeout and resets the board to the startup state.
The NI PCI-7344 has 62.5 to 500 μs/sample trajectory update range and offers 62.5 μs/axis maximum update range. This Motion Controller enables the user to acquire stepper outputs at 4 MHz maximum pulse rate and 120 ns maximum pulse width over a voltage range of 0 to 5 V.
The PCI-7344 National Instruments offers four 8-bit digital I/O ports; each bit can be programmed individually. For motion controlling and digital I/O, two separate 68-pin female high-density VHDCI I/O connectors are provided. The motion I/O connector incorporated in this Motion Controller contains all necessary signals required to control as many as four axes of stepper and servo motion, including: inhibit outputs, breakpoint outputs, motor command outputs, reverse limit inputs, home limit inputs, and more. For high-speed connectivity between the NI Motion Controller PCI-7344 and other National instruments devices, the user can utilize the RTSI connector provided.
