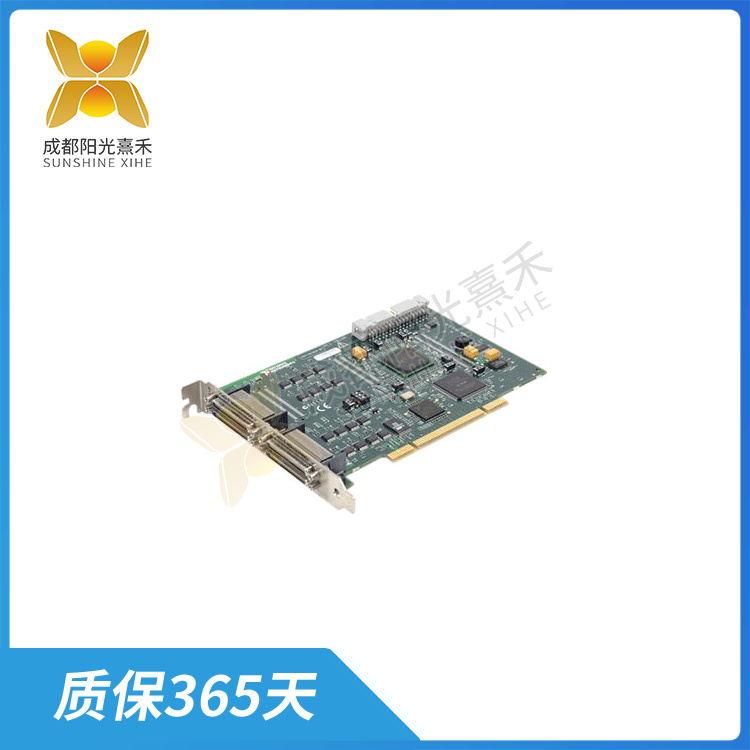

PCI-7811R 高性能數據采集和控制模塊
PCI-7811R是一款由美國國家儀器（National Instruments，簡稱NI）生產的數字RIO（Reconfigurable I/O，可重新配置輸入/輸出）板卡。這款板卡集成了可編程的FPGA（現場可編程門陣列）芯片，使其特別適合進行板載處理和靈活的I/O操作。
PCI-7811R板卡的主要特點包括：
- 可編程FPGA芯片：FPGA芯片包含大量可重復編輯的邏輯塊，用戶可以通過NI LabVIEW圖形化程序框圖和NI LabVIEW FPGA模塊，輕松配置各項功能，以適應不同的應用需求。這種可編程性使得PCI-7811R在處理復雜算法、實現高速數據處理以及進行實時控制等方面具有顯著優勢。
- 高速I/O能力：PCI-7811R提供了豐富的I/O引腳（例如160個I/O引腳），以及高速的時鐘信號（如40MHz的晶體振蕩器），使其能夠?qū)崿F(xiàn)高速的數據傳輸和精確的定時控制。
- 廣泛的應用領域：PCI-7811R適用于多種應用場景，如高速波形生成、傳感器仿真、硬件在環（HIL）測試、誤碼率測試等。此外，利用其精確控制、高速時鐘和大量I/O的特點，PCI-7811R還可以被應用于LED控制等需要頻繁快速點亮多個LED的場合。
- 易于集成和配置：PCI-7811R板卡采用PCI接口，可以直接插入到支持PCI接口的計算機或工控機中。同時，借助NI提供的強大軟件工具，用戶可以輕松地對板卡進行配置和編程，實現與上位機的通信和數據交換。
總的來說，PCI-7811R是一款功能強大、性能卓越的數字RIO板卡，適用于各種需要高速數據處理、精確定時控制和靈活I(lǐng)/O操作的場合。無論是進行科學研究、工程開發還是工業控制，PCI-7811R都能為用戶提供可靠且高效的解決方案。
PCI-7811R 高性能數據采集和控制模塊
The PCI-7811R is a digital RIO (Reconfigurable I/O) board manufactured by National Instruments (NI). The board integrates a programmable FPGA (Field Programmable Gate Array) chip, making it particularly suitable for on-board processing and flexible I/O operations.
The main features of PCI-7811R board include:
Programmable FPGA chip: The FPGA chip contains a large number of repeatable logic blocks, and users can easily configure various functions through NI LabVIEW graphical program block diagram and NI LabVIEW FPGA module to adapt to different application needs. This programmability gives PCI-7811R significant advantages in handling complex algorithms, high-speed data processing, and real-time control.
High-speed I/O capability: The PCI-7811R offers a wealth of I/O pins (such as 160 I/O pins), as well as a high-speed clock signal (such as a 40MHz crystal oscillator), enabling high-speed data transmission and precise timing control.
Wide range of applications: The PCI-7811R is suitable for a variety of application scenarios, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) testing, bit error rate testing, and more. In addition, with its precise control, high-speed clock and large amount of I/O features, the PCI-7811R can also be used in LED control applications where multiple leds need to be lit frequently and quickly.
Easy to integrate and configure: The PCI-7811R board adopts PCI interface and can be directly inserted into a computer or industrial computer that supports PCI interface. At the same time, with the powerful software tools provided by NI, users can easily configure and program the board, and realize the communication and data exchange with the host computer.
Overall, the PCI-7811R is a powerful, high-performance digital RIO board for applications that require high-speed data processing, precise timing control, and flexible I/O operations. Whether conducting scientific research, engineering development or industrial control, the PCI-7811R provides users with reliable and efficient solutions.
