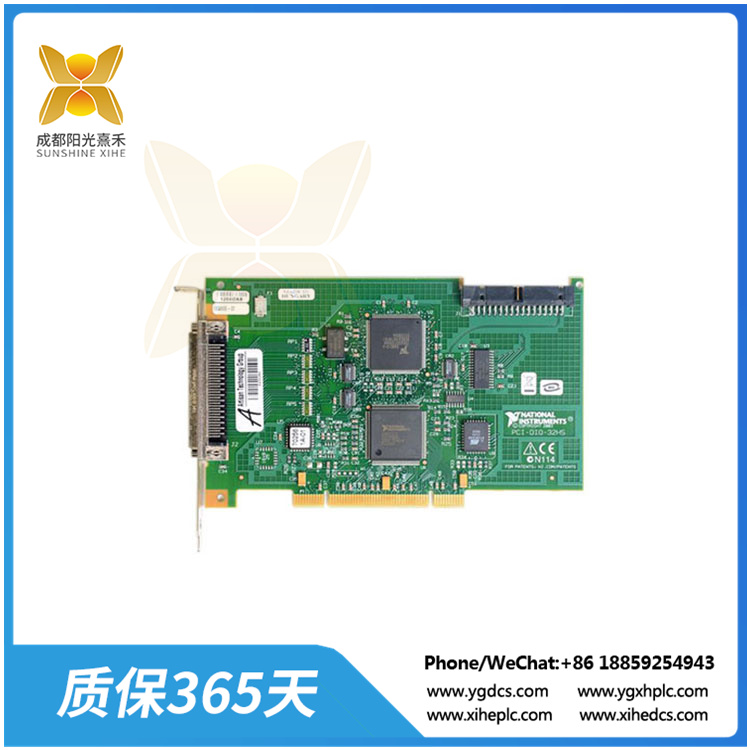

PCI-DIO-32HS 數字I/O設備 DAQ-DIO芯片
PCI- dio – 32hs，也稱為PCI 6533，(部件號:777314-01)是美國國家儀器公司的一款完全無跳線，無開關的數字I/O設備。該模型是專為CompactPCI或PXI底盤和PCI總線。PCI DIO-32HS采用NI專有的MITE PCI接口，提供總線主操作、突發PCI傳輸和高速DMA(直接內存訪問)控制器。
這個數字I/O設備配備了NI DAQ-DIO芯片。美國國家儀器公司的DAQ-DIO芯片配備了握手、模式生成和兩個獨立的數字輸入和數字輸出通道。每個通道提供可選的數據路徑寬度，16和32位計數器，握手控制器與六個定時協議，24毫安輸出，星形/停止觸發檢測，等等。PCI DIO-32HS的模式I/O和握手I/O功能允許用戶輸入或輸出具有時序控制的模式。
該設備提供的32個數字輸入/輸出線分為4個8位端口。對于握手或模式I/O，這些端口可以在兩個8位或兩個16位組或一個32位組的配置中使用。對于模式I/O，通道的最大速率高達2 MHz，電壓水平為5 V TTL/CMOS。PCI DIO-32HS上的數字傳輸由單個68針公SCSI-II電纜連接器管理。此外，該數字I/O設備使用戶能夠獨立選擇數據和控制線的上電狀態。
該設備利用RTSI總線或PXI觸發總線接收和發送觸發和時鐘信號到其他連接的設備。因此，PCI DIO-32HS也可以用于構建具有大量數字輸入和輸出線的同步系統。
PCI DIO-32HS使用NI-DAQ驅動軟件運行，該軟件兼容軟件包/應用程序開發環境(ADEs)，如LabVIEW, LabWindows/CVI, ComponentWorks或VirtualBench。設備的推薦工作溫度范圍為0℃~ 55℃。
PCI-DIO-32HS 數字I/O設備 DAQ-DIO芯片
The PCI-DIO-32HS, also known as the PCI 6533, (Part Number: 777314-01) is a completely jumperless, switchless Digital I/O Device from National Instruments. This model is designed for CompactPCI or PXI chassis and PCI busses. Powered with the NI proprietary MITE PCI interface, the PCI DIO-32HS offers bus-master operation, burst PCI transfers, and high-speed DMA (Direct memory access) controllers.
This Digital I/O Device comes equipped with the NI DAQ-DIO chip. The National Instruments DAQ-DIO chip comes equipped with handshaking, pattern generation, and two separate channels of digital input and digital output. Each channel offers a selectable data path width, 16 and 32-bit counters, a handshaking controller with six timing protocols, 24 mA outputs, star /stop trigger detection, and more. The Pattern I/O and Handshaking I/O functions of the PCI DIO-32HS allow the user to input or output patterns with timing control.
The 32 digital input/output lines offered by this device are divided as four 8-bit ports. For handshaking or pattern I/O, these ports can be used in configurations of two 8-bits or two 16-bit groups or one 32-bit group. The channels have a maximum rate of up to 2 MHz for pattern I/O, and voltage levels of 5 V TTL/CMOS. The digital transmission on PCI DIO-32HS is managed by a single 68-pin male SCSI-II cable connector. Moreover, this Digital I/O Device enables the users to select power-on states for the data and control lines independently.
This device utilizes the RTSI bus or the PXI trigger bus for receiving and sending trigger and clock signals to and from other connected devices. Thus, the PCI DIO-32HS can also be utilized for the construction of synchronized systems with a massive number of digital input and output lines.
The PCI DIO-32HS operates using the NI-DAQ driver software which is compatible software packages/ application development environments (ADEs) like LabVIEW, LabWindows/CVI, ComponentWorks, or VirtualBench. The device has a recommended operating temperature range of 0 to 55° C.
