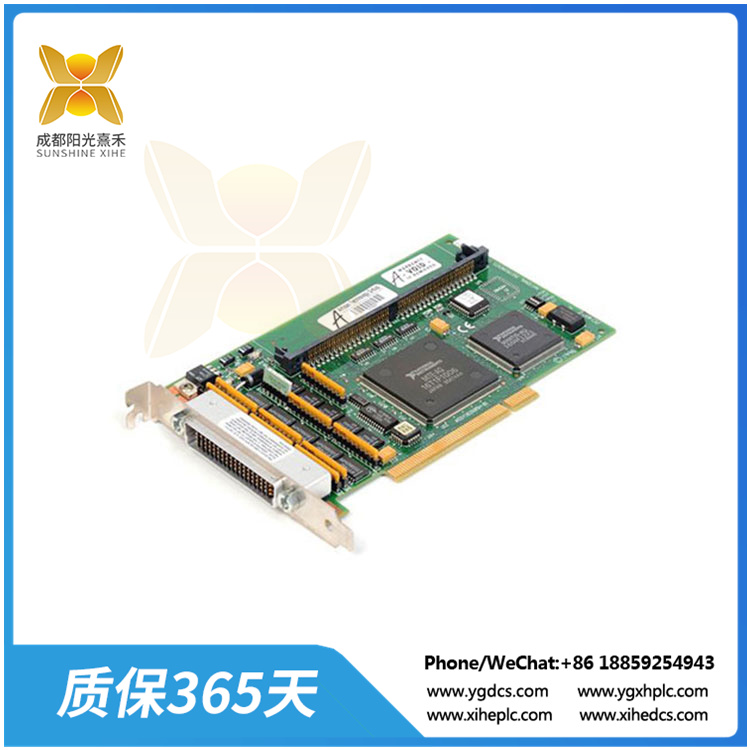

PCI-MXI-2 接口卡
PCI卡電壓:僅5v
部件編號:182685B-01、182685D-01、182685E-01、182685F-01、182685H-01、182685J-01、182685K-01、182685L-01、182687C-01、182687D-01、777185-01
特點:
將PCI總線連接到mxi總線(32位多系統擴展接口總線)
支持D64，塊和同步MXI周期的高性能數據傳輸
直接控制mxi總線中斷電平，實用信號，TTL觸發器和CLK10
符合PCI規范2.0
符合mxi總線規范2.0
支持MXI總線終端
NI PCI-MXI-2是一種半尺寸的pci兼容插件電路板，通過插入其中一個擴展槽將基于pci的計算機直接連接到mxi總線，反之亦然。該接口卡將MITE定制ASIC與VXI、VME、MXI和PCI標準接口集成在一起，實現了高性能的塊傳輸速率。
pci – mx -2被視為vxi總線設備，因為它使用與其他vxi總線設備相同的通信寄存器集。該卡還可以作為mxi總線系統控制器。
NI PCI-MXI-2(部件編號:777185-01,182685K-01)是美國國家儀器公司MXI-2系列的一部分。該電路板可以插入到用戶基于pci的計算機的擴展槽中。PCI-MXI-2將用戶的基于pci的計算機直接連接到mxi總線，反之亦然。由于PCI-MXI-2利用相同的通信寄存器設置到其他基于vxi總線消息的儀器，其他mxi總線儀器將PCI-MXI-2視為vxi總線儀器。該插件電路板支持D64、塊和同步MXI周期，用于高性能信息傳輸，支持MXI總線終端，符合PCI規范2.0和MXI總線規范2.0。該器件具有最小32 kb的可編程內存空間，具有32位的數據路徑。
NI PCI-MXI-2插件電路板具有板載EEPROM，可以保存模型上電時加載的默認寄存器值。EEPROM有兩個部分:工廠配置部分和用戶配置部分。模型的出廠配置部分保存了默認用戶設置的備份，而用戶配置部分可以更改。工廠配置是一個最小配置，它使用戶能夠引導PCI-MXI-2，盡管修改了用戶配置。修改設置時，請勿修改U17交換機3和交換機4的設置。
PCI-MXI-2 接口卡
PCI Card Voltage: 5 V Only
Part Number: 182685B-01, 182685D-01, 182685E-01, 182685F-01, 182685H-01, 182685J-01, 182685K-01, 182685L-01, 182687C-01, 182687D-01, 777185-01
Features:
Interfaces the PCI Bus to the MXIbus (32-bit Multisystem eXtension Interface Bus)
Supports D64, Block, and Synchronous MXI Cycles for High-Performance Data Transfer
Directly Controls MXIbus Interrupt Levels, Utility Signals, TTL Triggers, and CLK10
Conforms to PCI Specification 2.0
Conforms to the MXIbus Specification 2.0
Supports MXI Bus Termination
The NI PCI-MXI-2 is a half-size, PCI-compatible plug-in circuit board that links your PCI-based computer directly to the MXIbus and vice versa by plugging into one of the expansion slots. This interface card achieves high performance block transfer rates by integrating the MITE custom ASIC with standard interfaces for VXI, VME, MXI, and PCI.
The PCI-MXI-2 is viewed as a VXIbus device since it uses the same communication register set as as other VXIbus devices use. This card can also function as the MXIbus System Controller.
The NI PCI-MXI-2 (Part Number: 777185-01,?182685K-01) is part of the MXI-2 Series by National Instruments. This Circuit Board can be inserted into an expansion slot on the user’s PCI-based computer. The PCI-MXI-2 connects the user’s PCI-based computer straight to the MXIbus and the other way around. Since the PCI-MXI-2 utilizes an identical communication register set to other VXIbus message-based instruments, other MXIbus instruments see the PCI-MXI-2 as a VXIbus instrument. This Plug-in Circuit Board supports D64, block, and synchronous MXI cycles for high-performance information transfer, supports MXI bus termination, and conforms to both PCI specification 2.0 and MXIbus specification 2.0. The device has a programmable memory space of 32 kb minimum, with a data path of 32 bits.
The NI PCI-MXI-2 Plug-In Circuit Board has an onboard EEPROM, which saves default register values that load when the model powers on. The EEPROM has two sections: a factory-configuration section and a user-configuration section. The factory-configured part of the model saves a back-up of the default user settings, while the user-configured part can be altered. The factory configuration is a minimal configuration, which enables the user to boot the PCI-MXI-2 despite modifications to the user configuration. When changing settings, do not modify the settings of switches 3 and 4 of U17.
