描述

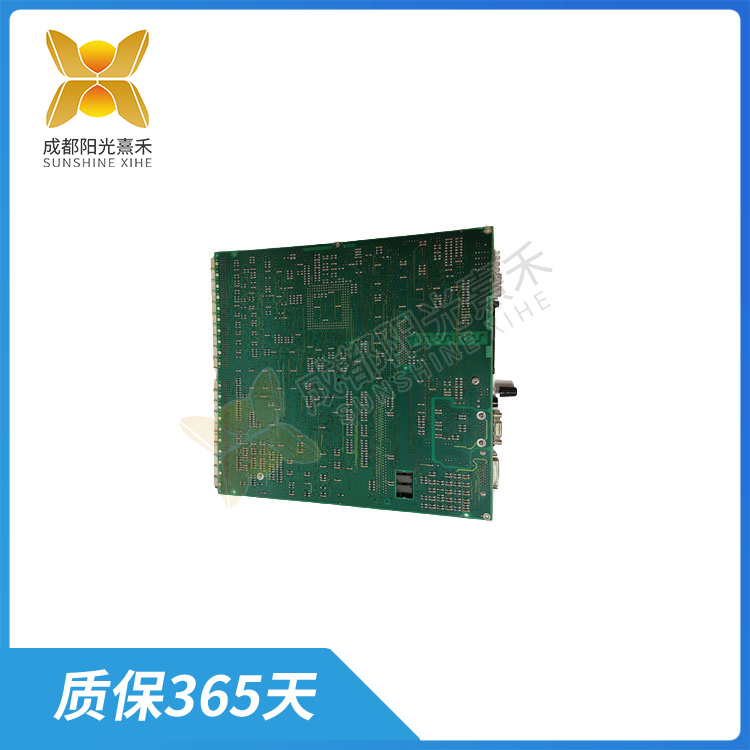

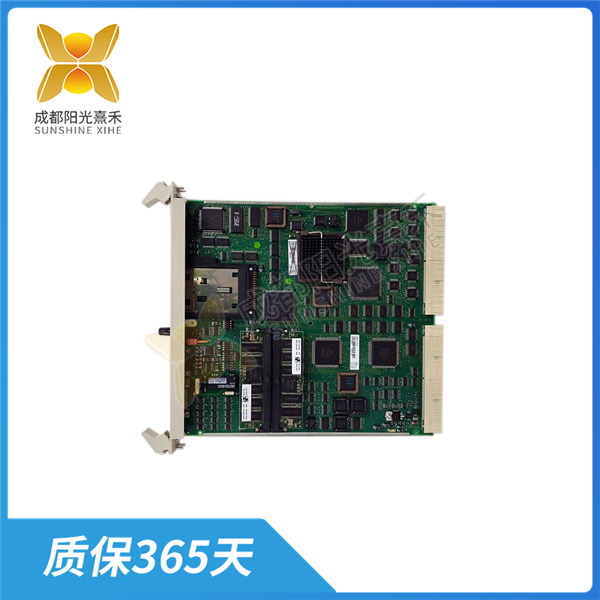

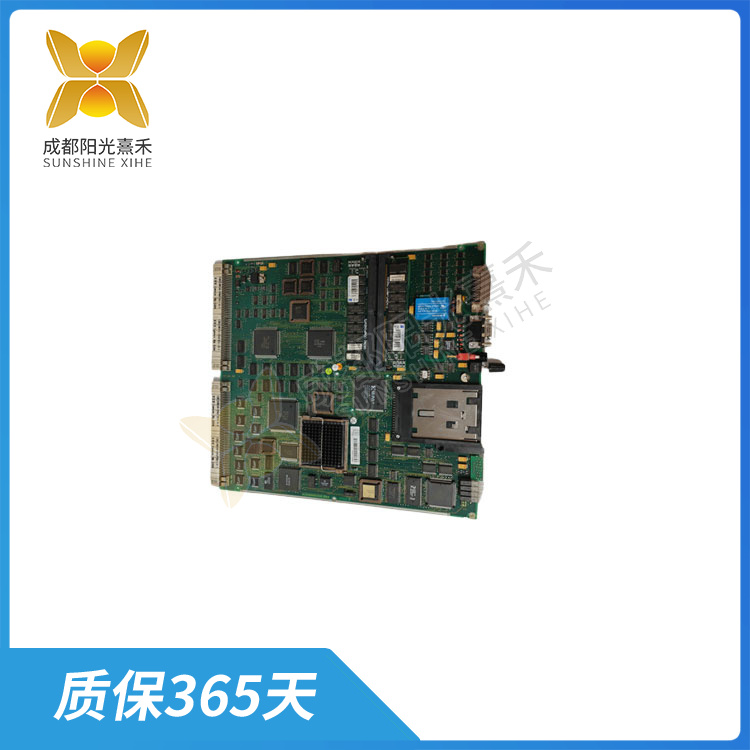

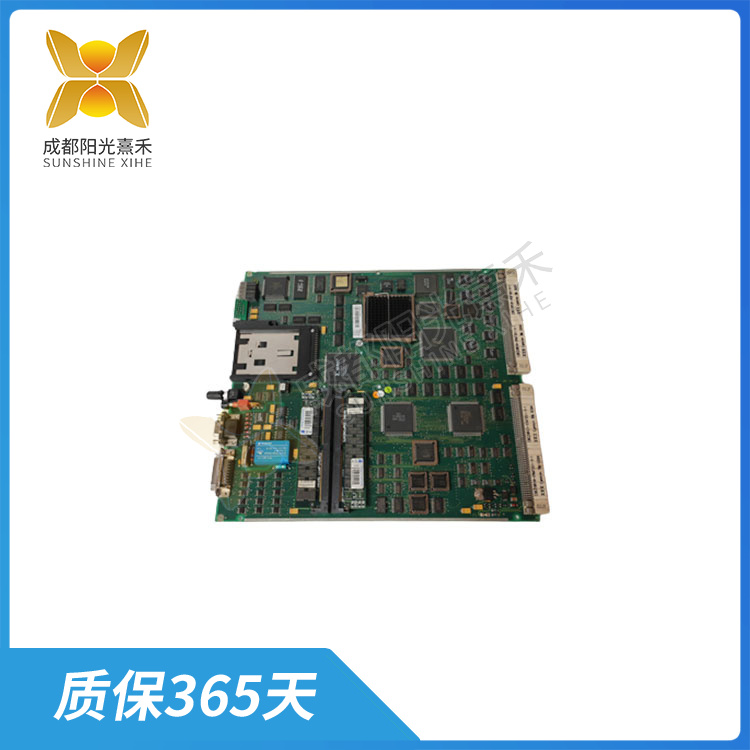

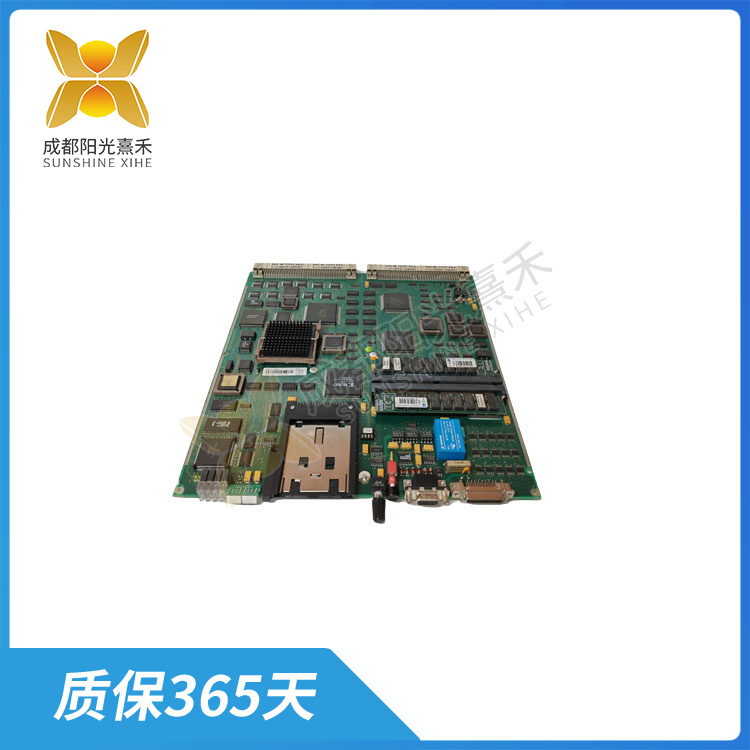

PM511V16 無跳線-這是控制器的處理器模塊

PM511V16（正面為PM511V）無跳線-這是控制器的處理器模塊。從功能角度來看，在線更換單個模塊當然是不可能的。但是，無需關閉電源。第5.5.10.2節“冗余處理器模塊的更換-附錄a中所述的模塊”中對冗余處理器模塊進行了說明。

當冗余處理器模塊出現故障時，系統將失去DUAL狀態并變?yōu)閱蝹€。兩個處理器模塊上的DUAL LED將熄滅。為了恢復冗余，請按照以下方式盡快更換故障單元：

1。不要忘記閱讀第5.5.6節“安全規定”。

2.小心，不要觸摸可能處于完全工作狀態的主模塊。

3.檢查程序卡是否正確就位。系統軟件將從程序卡加載到替換處理器模塊中。

4.拔出故障模塊。牢牢抓住模塊，快速果斷地取出。使用兩個手柄。

5.檢查它的修訂號。更換模塊的修訂號必須相同或更高。Delivery Binder中包含的文檔Release Notes說明了哪些處理器模塊可以在冗余對中工作，哪些不能。例如，您不能混合使用8和16兆字節版本。

6.通過將其啟動模式選擇器置于位置2（STOP）來準備更換模塊。

7.小心插入新模塊，不要碰到后平面觸點。確保模塊在子框的導軌中滑動。

8.快速果斷地推入新模塊。

9.這個新的處理器模塊現在成為備份。數字顯示屏將顯示-3（STOPPED）。

10.將備用模塊的啟動模式選擇器設置到與主模塊相同的位置。

11.按下備份模塊上的ENTER（輸入）按鈕。

12.系統現在將升級為DUAL。幾秒鐘后，兩個處理器模塊上的DUAL LED將點亮，備份模塊的編號顯示將顯示b1。

13.將提取的模塊存儲在導電塑料的外殼中。

PM511V16 無跳線-這是控制器的處理器模塊

PM511V16 (PM511V on front) No jumper – This is the processor module of the controller. From a functional point of view, it is of course impossible to replace individual modules online. However, there is no need to turn off the power. The redundant processor modules are described in section 5.5.10.2, “Replacement of Redundant Processor Modules – Modules described in Appendix a”.

When a redundant processor module is faulty, the system loses the DUAL status and becomes single. The DUAL leds on both processor modules will go off. To restore the redundancy, replace the faulty unit as soon as possible as follows:

1. Don’t forget to read section 5.5.6, “Safety Regulations.”

2. Be careful not to touch the main module that may be in full working condition.

3. Check whether the program card is correctly positioned. The system software will be loaded from the program card into the replacement processor module.

4. Remove the faulty module. Grab the module firmly and remove it quickly and decisively. Use two handles.

5. Check its revision number. The revision number of the replacement module must be the same or higher. The document Release Notes included in the Delivery Binder explains which processor modules work in redundant pairs and which do not. For example, you can’t mix 8 and 16 Megabyte versions.

6. Prepare the replacement module by placing its startup mode selector at position 2 (STOP).

7. Insert the new module carefully, do not touch the rear plane contact. Make sure the module slides in the guide rail of the subframe.

8. Push in new modules quickly and decisively.

9. This new processor module is now a backup. The digital display will display -3 (STOPPED).

10. Set the boot mode selector of the standby module to the same position as that of the primary module.

11. Press the ENTER button on the backup module.

12. The system will now be upgraded to DUAL. After a few seconds, the DUAL LED on both processor modules will light up, and the numbering display of the backup module will show b1.

13. Store the extracted module in a conductive plastic housing.
