描述

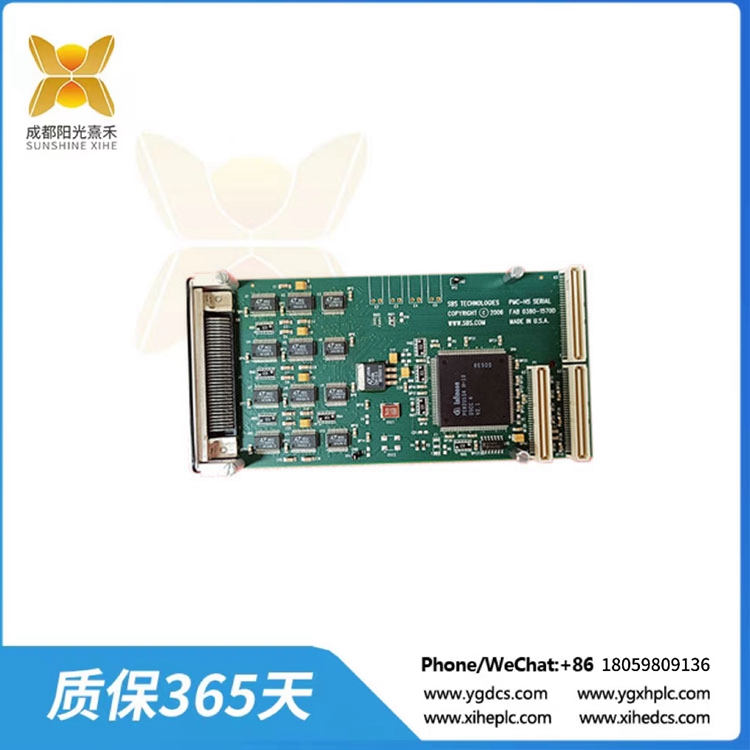

PMC-HS-SERIAL 四通道高速模塊

特點:
四通道高速串行
最大數據速率10mbit /sec(同步)和2mbit /sec(異步)
支持異步、單同步、雙同步、HDLC、SDLC、LAPB、LAPD、ISDN、PPP通信協議
支持RS-232、RS-422、EIA-449、EIA-530或V.35物理接口
PMC- hs – serial是一種單寬PMC，為空間受限的高性能通信應用提供4個高速異步或同步串行通道。使用外部時鐘的同步協議支持的最大數據速率為10mb /s。異步協議支持高達2 Mb/s的波特率，在RS-422接口模式下使用標準14.745 MHz振蕩器，波特率可達921.6 k波特。四個通道中的每一個都是完全可編程的，以支持許多高性能串行通信協議，如同步、單同步、雙同步、HDLC、SDLC、LAPB、LAPD、ISDN和PPP。

PMC-HS串行支持廣泛的物理接口選擇，僅通過軟件進行配置。通道可以單獨選擇RS-232, RS-422, EIA-449, EIA-530或V.35。不需要重新配置硬件。后面板P4連接器和前面板I/O連接器為每個通道提供7對信號。可選的過渡電纜可用于連接68針前面板I/O連接器到四個db25。

14.7456 MHz標準振蕩器提供標準異步波特率。此外，用戶提供的振蕩器位置可用于自定義波特率生成。每個通道都完全支持中斷。中斷源包括發送錯誤、接收錯誤、發送數據包完成和接收數據包完成。

PMC-HS-SERIAL 四通道高速模塊

Features:
Four Channels of High Speed Serial
Maximum Data Rate of 10 Mbit/sec (synchronous) and 2 Mbit/sec (Asynchronous)
Asynchronous, Monosync, Bisync, HDLC, SDLC, LAPB, LAPD, ISDN, and PPP Communication Protocols Supported
RS-232, RS-422, EIA-449, EIA-530, or V.35 Physical Interfaces Supported
PMC-HS-SERIAL is a single-wide PMC that provides 4 high-speed asynchronous or synchronous serial channels for space-constrained, high-performance communications applications. A maximum data rate of 10 Mb/s is supported for synchronous protocols using an external clock. Up to 2 Mb/s is supported for asynchronous protocols, with popular baud rates of up to 921.6 Kbaud available using the standard 14.745 MHz oscillator in RS-422 interface mode. Each of the four channels is fully programmable to support many high-performance serial communications protocols, such as synchronous, monosync, bisync, HDLC, SDLC, LAPB, LAPD, ISDN, and PPP.

The PMC-HS Serial supports a wide selection of physical interfaces, configurable by software alone. Channels can be individually selected as RS-232, RS-422, EIA-449, EIA-530, or V.35. No hardware re-configuration is required. Seven signal pairs for each channel are available at the rear-panel P4 connector and the front panel I/O connector. An optional transition cable is available to interface the 68-pin front panel I/O connector to four DB25s.

A 14.7456 MHz standard oscillator provides standard asynchronous baud rates. In addition, a user-supplied oscillator location is available for custom baud rate generation. Interrupts are fully supported for each channel. Interrupts sources include transmission error, reception error, completions of transmit packets and completions of receive packets.
