描述

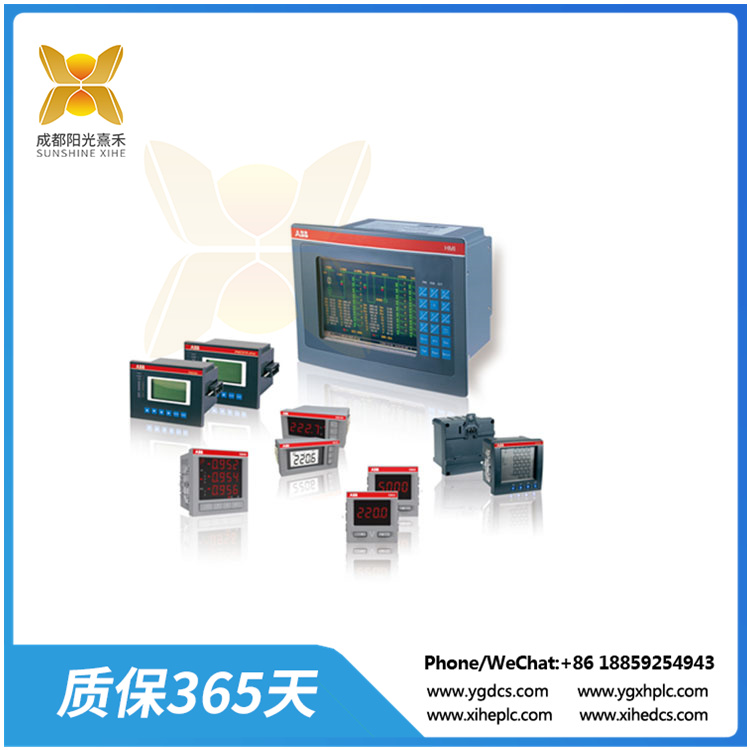

PMC916 智能多用途的電力參數監測與控制裝置

PMC916 (POWER MONITORING & CONTROL UNIT)是一種智能多用途的電力參數監測與控制裝置，在電力系統中有著廣泛的應用。PMC916可以直接用作功率計，具有8個開關信號通道，用于監控開關觸點狀態。PMC916的四個繼電器輸出允許通過相關電源參數如電壓，電流，頻率和功率進行遠程控制和報警控制，PMC916支持面向用戶的開放式通信協議。

PMC916和PMC916- c兩種規格支持兩種通信方式

接口分別為:RS485(PMC916)或CAN(PMC916- c);并分別支持MODBUS-RTU(PMC916)和Hilion B(PMC916- c)兩種通信協議。PMC916可以方便地連接到計算機監控系統的通信中。

PMC916內部結構與信息
PMC916內部有兩個MCU，分別定義為DISPLAY MCU和MASTER MCU。DISPLAY單片機的任務是處理PMC916的鍵盤和顯示。顯示單片機和主控單片機通過內部總線進行信息通信和交換。

PMC916 智能多用途的電力參數監測與控制裝置

The PMC916 (POWER MONITORING & CONTROL UNIT) is an itelligent multipurpose power parameter monitoring and control device which has an extensive range of aplications in power systems. The PMC916, which can be employed directly as a power meter, features eight switch signal channels for the monitoring of the switch contact status. The four relay outputs of the PMC916 allows for remote control, and alarm control by relating power parameters as voltage, current, frequency and power,PMC916 supports user-oriented communication protocol with opening form.

Two specifications(PMC916 and PMC916-C) support two kind of communication

ports respectively: RS485(PMC916) or CAN(PMC916-C); and support two kinds of communication protocols respectively: MODBUS-RTU(PMC916) or Hilion B(PMC916-C). PMC916 can be connected to the communication of computer-based monitoring and control systems conveniently.

PMC916 Internal Structure & Information
PMC916 has two MCU inside, which are defined as DISPLAY MCU’ and”MASTER MCU'”. The task of ‘DISPLAY MCU is to deal with the keyboard and display of PMC916. DISPLAY MCU’ and “MASTER MCU’ communicate and exchange information by inner bus.
