描述

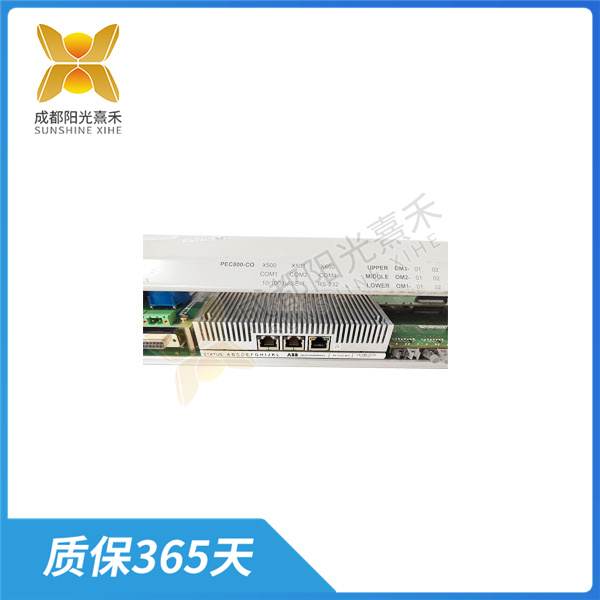

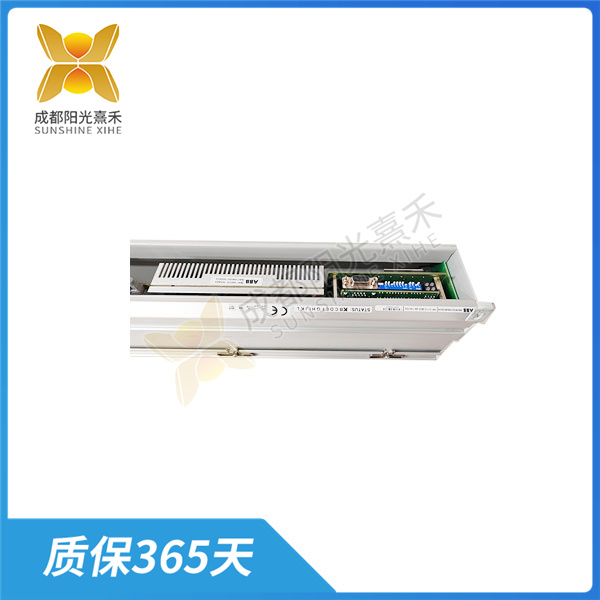

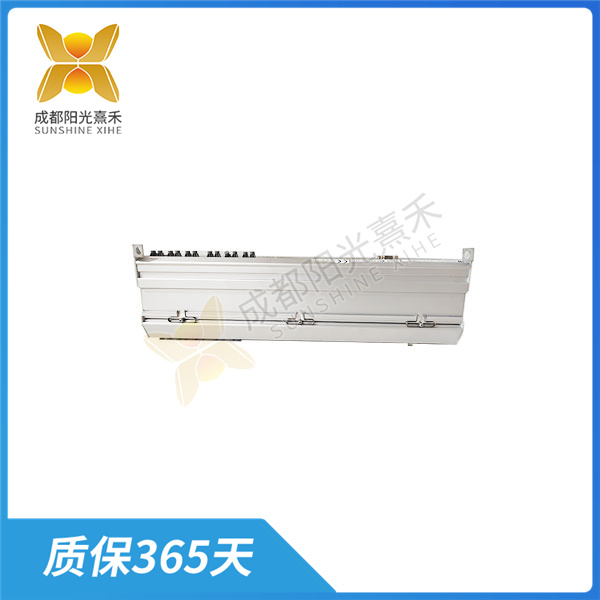

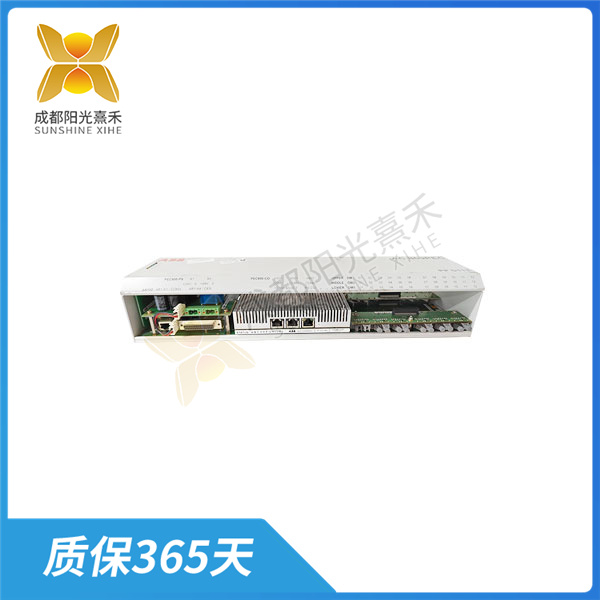

PPD113B03-26-100100?3BHE023584R2625 中央處理器模塊采用標準模塊化結

PPD113B03-26-100100?3BHE023584R2625中央處理器模塊的優點主要包括以下幾點：

高速處理能力：中央處理器模塊采用先進的處理器技術，具有高速的處理能力，能夠快速地處理各種復雜的控制算法和數據處理任務。

多功能性：中央處理器模塊具有多種輸入輸出接口，可以與多種類型的傳感器和執行器進行連接，同時還可以支持多種通信協議，如以太網、CAN總線等，滿足多種應用需求。

高可用性和靈活性：中央處理器模塊通常具有高可用性和靈活性，能夠為CPU四重化結構（QMR-Quadruple Modular Redundant），即系統的中央控制單元共有四個微處理器，每二個微處理器集成在一塊CU模件上，再由兩塊同樣的CU模件構成中央控制單元。解決無故障修復時間限制的難題。其容錯功能使系統中的任何一個部件發生故障，均不影響系統的正常運行。

緊湊型設計：一些中央處理器模塊采用緊湊型設計，如H41q系列是緊湊型系統，它主要由5單元高的19英寸機架構成，中央機架容納了所有部件，包括中央單元、接口、通訊模件、電源和配電系統以及輸入輸出模件，方便安裝和使用。

標準模塊化結構：一些中央處理器模塊采用標準模塊化結構，如H51q系列采用標準模塊化結構，由5單元高的19英寸機架及多16個4單元高的19英寸輸入/輸出子機架組成。中央機架包括中央單元、接口、通訊模件、監視和電源模件，方便用戶根據需要進行功能擴展或升級。

易于編程和配置：中央處理器模塊通常提供友好的用戶界面和多種編程接口，方便用戶進行編程、配置和控制。同時，模塊化的設計也使得系統的可維護性和可升級性得到了提高。

綜上所述，PPD113B03-26-100100?3BHE023584R2625中央處理器模塊的優點主要集中在高速處理能力、多功能性、高可用性和靈活性、緊湊型設計、標準模塊化結構以及易于編程和配置等方面，使得中央處理器模塊在各種控制系統、數據處理系統等領域得到廣泛應用。

PPD113B03-26-100100?3BHE023584R2625 中央處理器模塊采用標準模塊化結

PPD113B03-26-100100 3BHE023584R2625 The advantages of the CPU module mainly include the following points:

High-speed processing capacity: The central processor module adopts advanced processor technology, has high-speed processing capacity, and can quickly process a variety of complex control algorithms and data processing tasks.

Versatility: The CPU module has a variety of input and output interfaces, which CAN be connected with various types of sensors and actuators, and can also support a variety of communication protocols, such as Ethernet, CAN bus, etc., to meet a variety of application needs.

High availability and flexibility: CPU modules are usually highly available and flexible, and can be used to quadruple the CPU Quadruple Modular Redundant (QMR-Quadruple modular redundant), that is, the central control unit of the system has four microprocessors, each of which is integrated on a CU module. The central control unit is composed of two identical CU modules. Solve the problem of time limits for trouble-free repair. Its fault tolerance function makes any part of the system fail without affecting the normal operation of the system.

Compact design: Some CPU modules adopt compact design, such as the H41q series is a compact system, which is mainly composed of 5 unit high 19 inch rack, the central rack accommodates all components, including the central unit, interface, communication module, power and distribution system and input and output module, easy installation and use.

Standard modular architecture: Some CPU modules use standard modular architecture, such as the H51q series uses standard modular architecture, consisting of a 5-unit high 19-inch rack and an additional 16 4-unit high 19-inch input/output sub-racks. The central rack includes a central unit, interfaces, communication modules, monitoring modules, and power modules, enabling users to expand or upgrade functions as needed.

Easy to program and configure: CPU modules typically provide a user-friendly interface and a variety of programming interfaces for easy programming, configuration, and control. At the same time, the modular design also improves the maintainability and upgradability of the system.

In summary, the advantages of PPD113B03-26-100100 3BHE023584R2625 CPU module mainly focus on high-speed processing power, versatility, high availability and flexibility, compact design, standard modular structure, and easy programming and configuration. The central processor module is widely used in various control systems, data processing systems and other fields.
