描述

PQMII-T20 信號調理電路將傳感器輸出的模擬信號轉換為適合ADC輸入的信號

PPD113-PPD103B101 控制系統中使用的組件主要包括以下幾種：

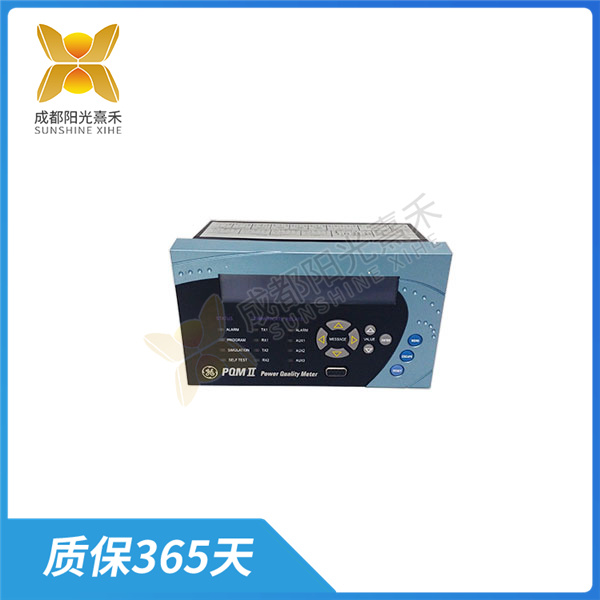

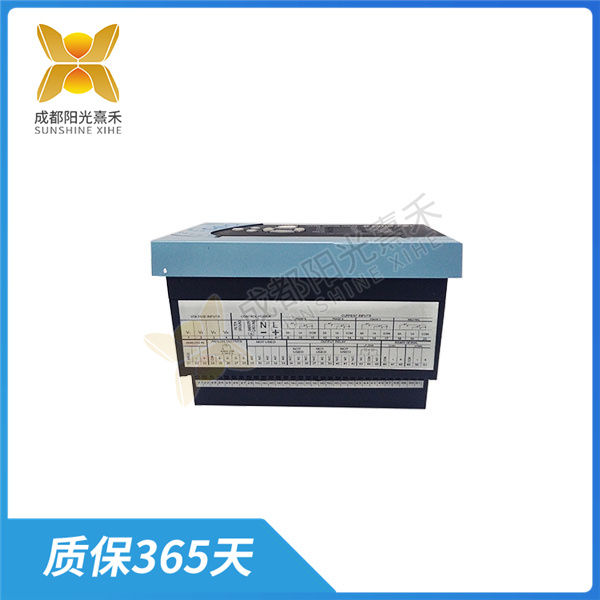

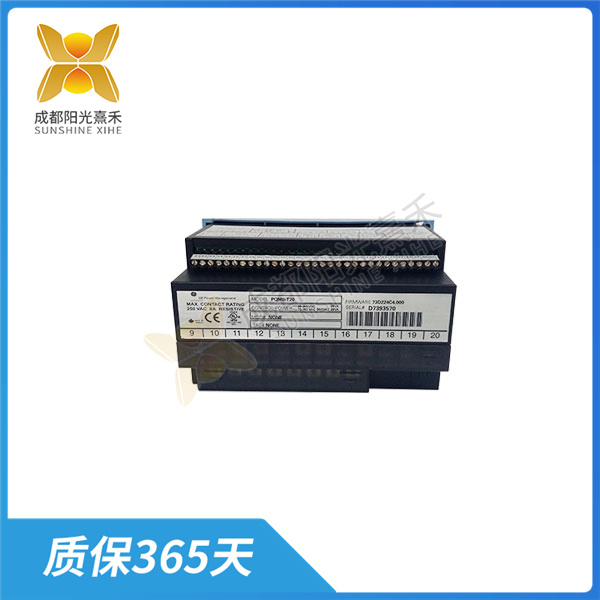

電能質量計是一種用于監測和評估電能質量的設備。PQMII-T20能夠測量和顯示關于電壓、電流、頻率、功率、功率因數等電能質量參數的信息，從而幫助用戶了解和分析電能的質量問題。

電能質量計通常包括電壓傳感器、電流傳感器、信號調理電路、模數轉換器（ADC）、微處理器和顯示單元等部分。其工作原理是：通過電壓和電流傳感器分別檢測出電壓和電流信號，信號調理電路將傳感器輸出的模擬信號轉換為適合ADC輸入的信號，ADC將模擬信號轉換為數字信號，微處理器對數字信號進行處理，計算出各種電能質量參數，并將結果顯示在顯示單元上。

電能質量計的應用范圍很廣，PQMII-T20 可以用于監測各種不同場所的電能質量，如家庭、辦公室、工廠、數據中心等。通過使用電能質量計，用戶可以了解電能的質量狀況，及時發現和解決電能質量問題，保障用電設備的正常運行和延長使用壽命。同時，電能質量計還可以為電力公司和用戶提供數據支持和分析，幫助他們更好地管理和優化電力系統的運行。

PQMII-T20 信號調理電路將傳感器輸出的模擬信號轉換為適合ADC輸入的信號

A power quality meter is a device used to monitor and evaluate power quality. The PQMI-T20 measures and displays information about power quality parameters such as voltage, current, frequency, power, and power factor to help users understand and analyze power quality issues.

The power quality meter usually includes a voltage sensor, a current sensor, a signal conditioning circuit, an analog-to-digital converter (ADC), a microprocessor and a display unit. The working principle is: the voltage and current signals are detected by the voltage and current sensors respectively, the signal conditioning circuit converts the analog signal output by the sensor into the signal suitable for the ADC input, the ADC converts the analog signal into the digital signal, the microprocessor processes the digital signal, calculates various power quality parameters, and displays the results on the display unit.

With a wide range of applications, the PQMI-T20 can be used to monitor power quality in a variety of different locations, such as homes, offices, factories, data centers, etc. Through the use of power quality meter, users can understand the quality of power, find and solve power quality problems in time, ensure the normal operation of electrical equipment and extend the service life. At the same time, power quality meters can also provide data support and analysis for power companies and customers to help them better manage and optimize the operation of the power system.
