描述

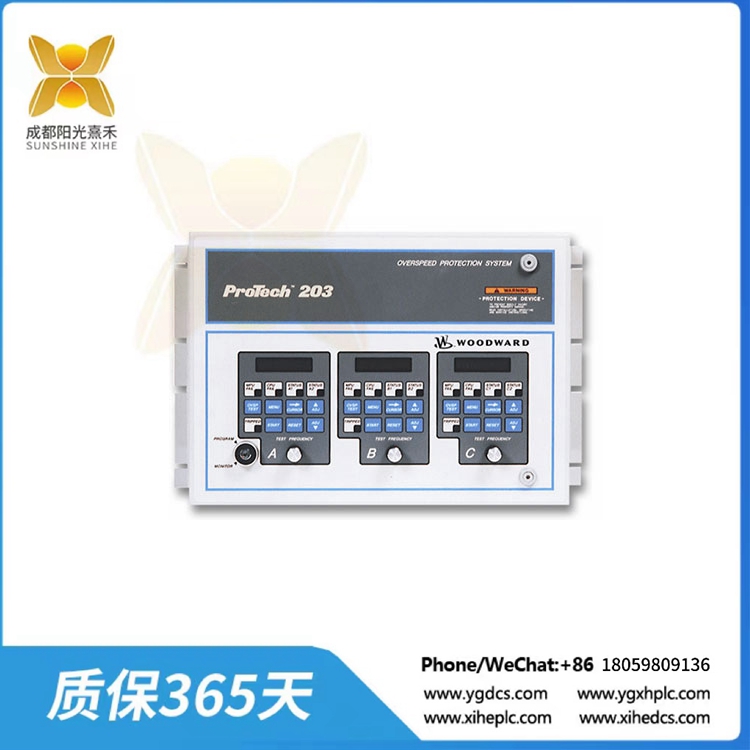

PROTECH-203 超速保護器

應用
ProTech 203 超速保護器通過監控三個獨立的轉速傳感器來防止蒸汽輪機、燃汽輪機或 原 動 機 超 速 。 此 超 速 保 護 器 取 代 了 機 械 式 的 超 速 保 護 裝 置 ， 特 別 是 在 高 速（>10000rpm）的應用中機械式的超速保護裝置變的不再可靠的條件下。

優點
易于校準測試，精度和重復性高是此超速保護器的顯著特點。ProTech 203 不需要像機械式超速保護裝置那樣，對于超速停機速度值要給予足夠的余量。ProTech 203 采用的是數字式速度感應技術，通過面板操作即可簡單的設定停機速度限值。為了確保功能的正常和保持良好的精度，三個單元中的任意一個單元都可在輪機運轉時通過頻率發生器進行測試。鑰匙開關的設置確保了未經授權人員的編程和測試的權限。

三個數字單元感應和顯示速度的精度為 0.1%，機械式超速保護裝置的精度遠遠達不到此種水平。

ProTech 采用的是三選二停機方式，確保了不會因三個單元中的一個發生瞬時故障造成誤停機。每個單元與其他兩個單元除繼電器的連接外，是完全隔離的。

為了進一步的防止誤停機發生，每個速度感應單元所使用的電源也是獨立的。

ProTech 不涉及到由于輪機旋轉造成的機械磨損、磁化溫度和運轉溫度等因素的影響。因?yàn)椴簧婕暗綑C(jī)械旋轉部分的磨損等問題，ProTech 可以長時間的保持停機速度設定值不變。

當 發 生 超 速 停 機 時 ProTech 可 記 錄 顯 示 輪 機 所 達 到 的 峰 值 轉 速 。

PROTECH-203 超速保護器

Apply
The ProTech 203 overspeed protector protects steam turbines, gas turbines or engines from overspeed by monitoring three independent speed sensors. The overspeed protector replaces the mechanical overspeed protector, especially in high speed (>10000rpm) applications where the mechanical overspeed protector is no longer reliable.

advantage
Easy calibration testing, high accuracy and repeatability are notable features of this overspeed protector. ProTech 203 does not need to give sufficient allowance for overspeed stop speed values as mechanical overspeed protection devices do. The ProTech 203 uses digital speed sensing technology to easily set shutdown speed limits through panel operation. In order to ensure normal function and maintain good accuracy, any of the three units can be tested by a frequency generator while the turbine is in operation. The setting of the key switch ensures the permission of unauthorized persons to program and test.

The accuracy of the three digital units sensing and displaying speed is 0.1%, and the accuracy of the mechanical overspeed protection device is far from this level.

ProTech adopts a two-out-of-three shutdown mode to ensure that there will be no accidental shutdown caused by an instantaneous failure of one of the three units. Each unit is completely isolated from the other two units except for the connection of the relay.

In order to further prevent the occurrence of false shutdown, the power supply used by each speed sensing unit is also independent.

ProTech does not involve the influence of factors such as mechanical wear, magnetization temperature and operating temperature caused by turbine rotation. Because it does not involve the wear and tear of the mechanical rotation part, ProTech can keep the stop speed set value unchanged for a long time.

When an overspeed stop occurs, ProTech can record the peak speed reached by the display wheel.
