描述

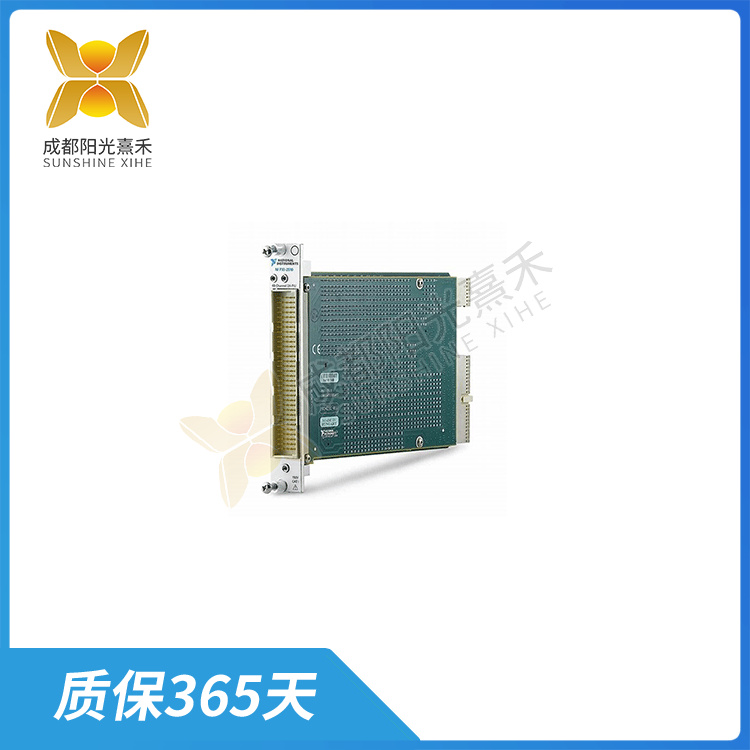

PXI-2510? ?PXI信號插入開關模塊

PXI-2510是一款PXI信號插入開關模塊，專為硬件在環（HIL）應用和電子可靠性測試而設計。該模塊具有68通道和2A的FIU（故障插入單元）開關，每個模塊都有一組饋通通道，可以打開或短路到一個或多個故障總線。

PXI-2510的主要特點是其架構能夠模擬開路或中斷連接，以及引腳間短路、電池電壓短路和每個通道接地短路等故障情況。這使得它在測試電子系統的可靠性和完整性方面非常有用。此外，當與LabVIEW Real-Time模塊結合使用時，PXI-2510是驗證控制系統完整性的理想選擇，包括發動機控制單元（ECU）和全權限數字發動機控制（FADEC）。

對于使用者來說，PXI-2510的易用性和靈活性也是其一大優勢。通過簡單的配置和編程，用戶就可以模擬各種故障情況，從而全面測試電子系統的性能。同時，其高度集成化的設計也使得它能夠在各種測試環境中輕松部署和使用。

請注意，雖然PXI-2510具有強大的功能和廣泛的應用范圍，但在使用時仍需要遵循相關的操作規范和安全準則。特別是在進行復雜或高風險的測試時，應確保操作人員具備足夠的專業知識和經驗，以防止可能的設備損壞或人員傷害。

總的來說，PXI-2510是一款功能強大、性能穩定的PXI信號插入開關模塊，適用于各種硬件在環和電子可靠性測試應用。

PXI-2510? ?PXI信號插入開關模塊

The PXI-2510 is a PXI signal insertion switch module designed for hardline-in-the-loop (HIL) applications and electronic reliability testing. The module has 68 channels and 2A FIU (Fault Insert Unit) switches, and each module has a set of feed through channels that can be opened or short-circuited to one or more fault buses.

The main feature of the PXI-2510 is its architecture’s ability to simulate open or broken connections, as well as fault scenarios such as pin-to-pin short circuits, battery voltage short circuits, and ground short circuits in each channel. This makes it very useful in testing the reliability and integrity of electronic systems. In addition, when combined with the LabVIEW Real-Time module, the PXI-2510 is ideal for verifying the integrity of control systems, including the Engine Control Unit (ECU) and Full Authority Digital Engine Control (FADEC).

For users, the ease of use and flexibility of the PXI-2510 is also a big advantage. With simple configuration and programming, users can simulate various failure scenarios to fully test the performance of electronic systems. At the same time, its highly integrated design makes it easy to deploy and use in a variety of test environments.

Please note that although the PXI-2510 has powerful features and a wide range of applications, it is still necessary to follow the relevant operating specifications and safety guidelines when using. Especially when conducting complex or high-risk tests, ensure that the operator has sufficient expertise and experience to prevent possible equipment damage or personal injury.

Overall, the PXI-2510 is a powerful and stable PXI signal insertion switch module for a variety of hardware-in-the-loop and electronic reliability testing applications.
