描述

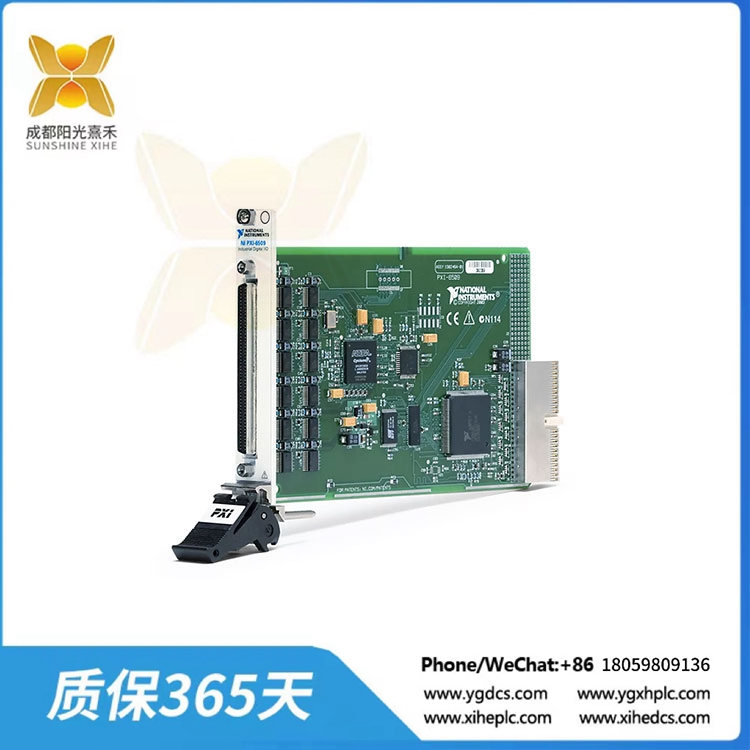

PXI-6509 96 通道、24 mA、PXI 數字 I/O 模塊

美國國家儀器公司的PXI-6509(部件號:778858-01)數字I/O模塊具有96條數字I/O線，單端信令，0 V至5 V輸出電壓范圍，數字輸入電壓范圍為-0.5 V至5.5 V，以及5 V數字I/O邏輯電平。96條DIO線中的每一條都可以用作靜態數字輸入(DI)或數字輸出(DO)線。PXI-6509的一些數字輸出應用包括:驅動外部模型和傳輸TTL信號。NI PXI-6509的幾個數字輸入應用是感應外部模型和接收TTL信號。

PXI-6509數字I/O模塊配備了看門狗定時器，數字濾波，變化檢測和各種其他功能。可以實現數字濾波以消除輸入信息中的錯誤。如果將此特性與變更檢測一起使用，那么數字濾波可以額外減少需要評估和處理的修改量。數字濾波是允許的，無論用戶的應用程序需要多少輸入行。當利用變更檢測特性時，這些線路的計時間隔范圍從400 ns到200 ms，重要的是要認識到大量的變更檢測可能會降低系統的性能水平。因此，可以利用數字濾波來降低輸入線的噪聲。NI設備配備一個100針母0.050系列SCSI I/O連接器。

PXI 6509使用NI-DAQmx驅動軟件運行，該驅動軟件與LabVIEW, LabWindows/CVI或Measurement Studio等軟件包兼容。設備硬件采用MAX配置。

NI PXI-6509數字I/O模塊只能通過屏蔽電纜和附件進行操作。這些包括SCB-100連接器塊，CB-50連接器塊和CB-50LP連接器塊。這些電纜和附件保證PXI-6509符合PXI-6509用戶手冊中規定的EMC標準。該器件在+3.3 VDC時的典型功耗值為375 mA，在+5 VDC時的典型功耗值為250 mA。如果需要，可以安裝一個磁盤驅動器電源連接，以便在+ 5v端子上增強電源。

NI設備重6.1盎司，尺寸為6.3 x 3.9英寸。在物理維度上。推薦使用溫度范圍為0℃~ 55℃，存儲溫度范圍為-20℃~ 70℃。PXI-6509的其他規格信息可以在“手冊和pdf”選項卡下的用戶手冊和數據表中找到。

PXI-6509 96 通道、24 mA、PXI 數字 I/O 模塊

The PXI-6509 (Part Number: 778858-01) Digital I/O Module by National Instruments has 96 digital I/O lines, single-ended signaling, 0 V to 5 V output voltage range, a digital input voltage range of -0.5 V to 5.5 V, and 5 V digital I/O logic levels. Each of the 96 DIO lines can be utilized as a static digital input (DI) or digital output (DO) line. A few of the digital output applications for the PXI-6509 include: driving external models and transporting TTL signals. Several of the digital input applications for the NI PXI-6509 are sensing external models and receiving TTL signals.

The PXI-6509 Digital I/O Module comes equipped with a watchdog timer, digital filtering, change detection, and various other features. Digital filtering can be implemented to eradicate errors on input information. If this feature is used with change detection, then digital filtering can additionally decrease the amount of modifications to assess and process. Digital filtering is permitted on however many input lines are required for the user’s application. The timing interval range for these lines is from 400 ns to 200 ms. when utilizing the change detection feature, it is important to recognize that a high number of change detections can decrease the system’s performance levels. Therefore, digital filtering can be utilized to reduce the noisy input lines. The NI device is equipped with a 100-pin female 0.050 series SCSI I/O connector.

The PXI 6509 is run using the NI-DAQmx driver software which is compatible with software packages like LabVIEW, LabWindows/CVI, or Measurement Studio. The device hardware is configured using MAX.

The NI PXI-6509 Digital I/O Module can only be operated with shielded cables and accessories. These include an SCB-100 connector block, CB-50 connector block, and CB-50LP connector block. These cables and accessories guarantee the PXI-6509 will comply with the EMC standards specified in the PXI-6509 user manual. The device has a power consumption value of 375 mA typical at +3.3 VDC, and 250 mA typical at +5 VDC. A disk drive power connection can be installed in order to boost the power supply on the +5 V terminal if desired.

The NI device weighs 6.1 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of –20 °C to 70 °C. Additional specification information for the PXI-6509 can be found in the user manuals and datasheets under “Manuals & PDFs” tab.
