描述

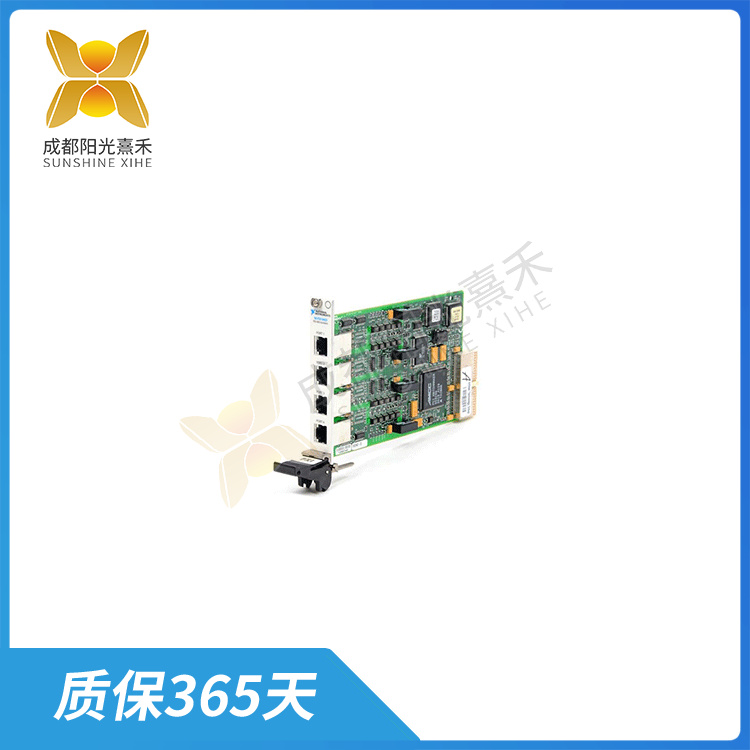

PXI-8423 大功率輸出模塊

PXI-8423是National Instruments（簡稱NI）公司推出的一款高性能PXIe-8401 CompactDAQ模塊的升級版本，專為數據采集任務而設計。它具有以下關鍵特性：

1. 多功能輸入與輸出通道：PXI-8423配備了8個模擬輸入通道，可測量電壓范圍為±10V，采樣速率為100kHz。同時，它還提供了2個模擬輸出通道，能夠輸出電壓范圍為±10V的信號，更新速率同樣為100kHz。這些通道為用戶提供了豐富的數據采集和輸出能力。
2. 高分辨率：PXI-8423的分辨率高達16位，這意味著它能夠捕捉并記錄細微的信號變化，從而確保數據的準確性和可靠性。
3. 可編程觸發與同步采集：該設備支持可編程觸發功能，可以根據用戶的設置自動啟動數據采集。此外，它還支持同步采集，可以確保多個通道之間的數據采集是同步進行的，這對于需要同時采集多個信號的應用場景非常有用。
4. 內置功能豐富：PXI-8423內置了振蕩器和計數器，為用戶提供了更多的功能選項。此外，它還配備了多達64個數字I/O引腳以及32條可配置為數字輸入或輸出的線路，進一步擴展了其應用范圍。
5. 廣泛應用場景：由于其強大的功能和靈活的配置選項，PXI-8423適用于多種應用場景。在生產線監控和過程控制等工業自動化應用中，它可以實時采集數據并進行反饋控制。在醫療設備領域，如用于生命體征監測（心電圖、血壓等）的數據采集和分析，PXI-8423同樣能夠發揮出色的性能。

總的來說，PXI-8423是一款功能強大、性能穩定的數據采集設備，能夠滿足各種復雜的數據采集需求。無論是工程師、科研人員還是技術人員，都可以通過PXI-8423實現高效、準確的數據采集和分析。

PXI-8423 大功率輸出模塊

The PXI-8423 is an upgraded version of the high-performance PXIe-8401 CompactDAQ module from National Instruments (NI), designed for data acquisition tasks. It has the following key features:

Multifunctional input and output channels: The PXI-8423 is equipped with eight analog input channels, measuring voltage ranges of ±10V and sampling rate of 100kHz. At the same time, it also provides two analog output channels that can output signals in the voltage range of ±10V, and the update rate is also 100kHz. These channels provide users with rich data acquisition and output capabilities.

High resolution: The PXI-8423 has a resolution of up to 16 bits, which means it is able to capture and record subtle signal changes, thus ensuring data accuracy and reliability.

Programmable trigger and synchronous acquisition: The device supports programmable trigger function, which can automatically start data acquisition according to the user’s Settings. In addition, it also supports synchronous acquisition, which can ensure that the data acquisition between multiple channels is synchronized, which is very useful for application scenarios that need to collect multiple signals at the same time.

Rich built-in features: The PXI-8423 has a built-in oscillator and counter, providing users with more functional options. In addition, it is equipped with up to 64 digital I/O pins and 32 lines that can be configured as digital inputs or outputs, further extending its range of applications.

Wide range of application scenarios: Due to its powerful features and flexible configuration options, the PXI-8423 is suitable for a variety of application scenarios. In industrial automation applications such as production line monitoring and process control, it can collect data in real time and perform feedback control. In the field of medical devices, such as data acquisition and analysis for vital signs monitoring (ECG, blood pressure, etc.), the PXI-8423 can also play an excellent performance.

Overall, the PXI-8423 is a powerful and stable data acquisition device that can meet a variety of complex data acquisition needs. Whether engineers, researchers or technicians, the PXI-8423 enables efficient and accurate data acquisition and analysis.
