描述

PXIE-4082 6.5位，1.8 MS/s最大采樣率，數字萬用表

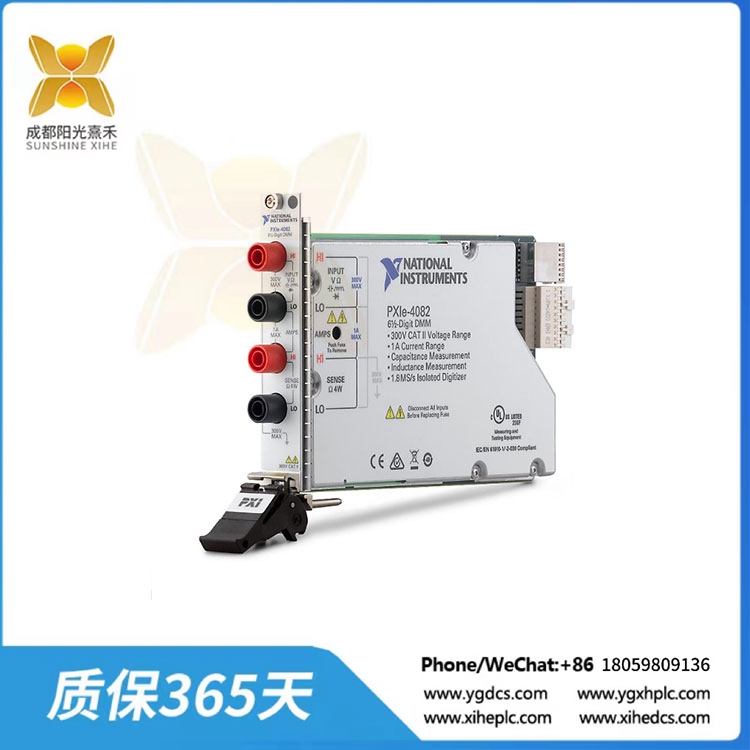

美國國家儀器公司PXIe-4082 PXI數字萬用表

美國國家儀器公司PXIe-4082(部件號:783131-01)是一個6?位，±300 V，板載1.8 MS/s隔離數字萬用表。該萬用表具有高分辨率DMM和數字化儀的典型測量功能。作為DMM, NI PXIe – 4082提供快速，精確的AC/DC電壓，AC/DC電流，2線或4線電阻，頻率/周期測量和二極管測試。在高壓、隔離數字化模式下，PXIe – 4082可以以1.8 MS/s的采樣率獲取波形。該設備的頻率范圍為15赫茲至500千赫。

NI PXIe – 4082具有10至23位通用分辨率，電壓測量高達300 VDC (300 Vrms)，電流測量高達1 a，電阻測量高達100 MΩ，以及基本電容和電感測量功能。它的功耗為+ 12v負載，最大0.55 a， +3.3 V負載，最大0.55 a。

對于隔離式數字化儀，美國國家儀器公司PXIe – 4082 PXI數字萬用表的電壓范圍為±100 mV至±300 V(直流或交流耦合)，電流范圍為±20 mA至±1 A，采樣率范圍為10 S/ S至1.8 MS/ S。該設備的前面板有4個覆蓋的香蕉插頭連接器。

NI PXIe-4082 PXI數字萬用表推薦的工作溫度范圍為0℃~ 55℃，存儲環境溫度范圍為-40℃~ 71℃，工作環境相對濕度范圍為10% ~ 90%(不凝結)，環境溫度25℃時最大工作海拔2000m。NI設備重12盎司，尺寸為8.5 x 0.8 x 5.1英寸。在物理維度上。它的工作和非工作隨機振動分別為0.3克和2.4克，頻率范圍為5赫茲到500赫茲。

PXIe-4082的推薦預熱時間為60分鐘，達到額定精度，應在2年內至少進行一次外部校準。支持NI-DMM 15.2及以上版本的驅動軟件，兼容LabVIEW、LabWindows/CVI、Measurement Studio等軟件包或ade。

PXIE-4082 6.5位，1.8 MS/s最大采樣率，數字萬用表

National Instruments PXIe-4082 PXI Digital Multimeter

The National Instruments PXIe-4082 (Part Number: 783131-01) is a 6?-Digit, ±300 V, Onboard 1.8 MS/s Isolated Digital Multimeter. This Multimeter provides the typical measurement capabilities found in a high-resolution DMM and a digitizer. As a DMM, the NI PXIe?4082 delivers speedy, precise AC/DC voltage, AC/DC current, 2? or 4?wire resistance, and frequency/period measurements, and diode tests. In the high-voltage, isolated digitizer mode, the PXIe?4082 can acquire waveforms at sample rates of 1.8 MS/s maximum. The device has a frequency range of 15 Hz to 500 kHz.

The NI PXIe?4082 features a 10 to 23-bit versatile resolution, voltage measurements up to 300 VDC (300 Vrms), current measurements up to 1 A, resistance measurements up to 100 MΩ, and basic capacitance and inductance measurement capabilities. It has a power consumption of +12 V load at 0.55 A maximum, and +3.3 V load at 0.55 A max.

For the isolated digitizer, the voltage of the National Instruments PXIe?4082 PXI Digital Multimeter ranges from ±100 mV to ±300 V (DC or AC coupled), the current ranges from ±20 mA to ±1 A, and the sample rate range is 10 S/s to 1.8 MS/s. The front panel of the device has 4 shrouded banana plug connectors.

The NI PXIe-4082 PXI Digital Multimeter has a recommended operating temperature range of 0 0C to 55 0 C, a storage ambient temperature range of -40 °C to 71 °C, a relative humidity range of 10% to 90% (noncondensing) in an operating environment, and a maximum altitude is 2,000 m (800mbar) at 25 °C ambient temperature. The NI device weighs 12 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 Hz to 500 Hz.

The PXIe-4082 has a recommended warm-up time of 60 minutes to rated accuracy, and should be calibrated externally at least once In 2 years. It is run using the NI-DMM 15.2 or later driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.
