描述

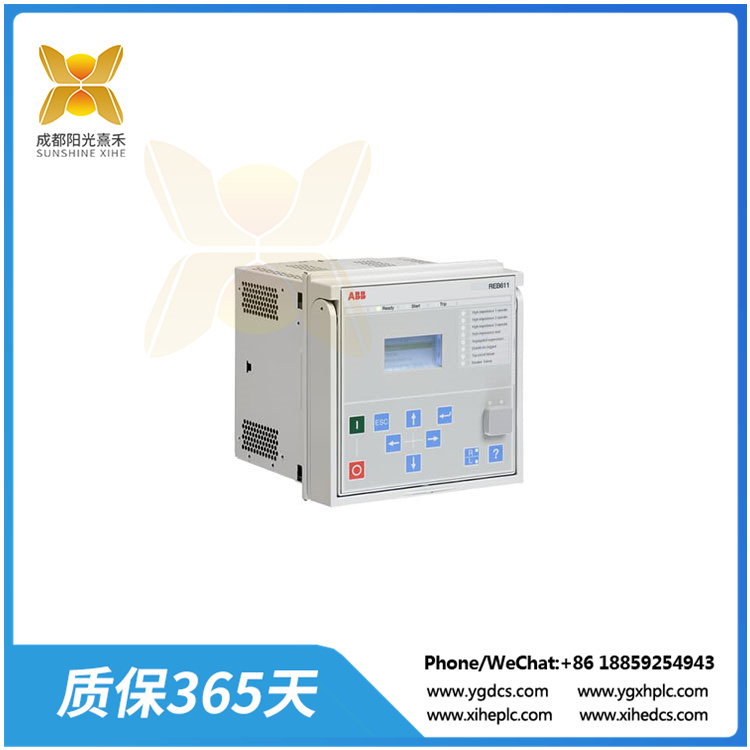

REB611 專用母線保護繼電器

REB611是一款專用母線保護繼電器，設計用于單母線的分相短路保護、控制和監控。
REB611 用于公用變電站和工業電力系統內基于高阻抗的應用。此外，該保護繼電器還可用于限制性接地故障和剩余接地故障應用，以保護發電機、電動機、變壓器和電抗器。REB611 提供一種標準配置。

REB611 是ABB Relion ?產品系列的成員，也是其611 保護和控制繼電器系列的一部分。

范圍
母線槽和理想的多用途后備保護繼電器

產品優點
母線保護應用的預配置功能
繼電器在交付時已預先配置并經過工廠測試，以縮短工程和調試時間
使用可選的第二以太網總線基于 HSR/PRP 的自愈通信
緊湊的設計使其適合新安裝和改造安裝
抽出式插件設計，方便快速安裝和測試

產品特點
母線和理想的多用途后備保護
功能強大且用戶友好的基于網絡瀏覽器的人機界面 (HMI)，包括具有視覺選擇的輸入/輸出 (I/O) 矩陣
特定于應用的標準配置可縮短繼電器設置和調試時間
支持 IEC 61850 第 1 版和第 2 版，包括二進制 GOOSE 消息傳遞
適用于公用事業分配和工業應用的預配置解決方案

REB611 專用母線保護繼電器

REB611 is a dedicated busbar protection relay designed for phase split short-circuit protection, control and monitoring of single busbars.
REB611 is used for high-impedance based applications in utility substations and industrial power systems. In addition, the protective relay can be used in restricted ground fault and residual ground fault applications to protect generators, motors, transformers and reactors. The REB611 is available in a standard configuration.

REB611 is a member of ABB’s Relion ? product family and part of its 611 family of protection and control relays.

Radius
Busway and ideal multi-purpose backup protective relay

Product advantage
Pre-configured functions for busbar protection applications
Relays are pre-configured and factory tested at delivery to reduce engineering and commissioning time
HSR/PRP based self-healing communication using an optional second Ethernet bus
The compact design makes it suitable for new and retrofit installations
Draw-out plug-in design for quick installation and testing

Product characteristics
Bus bar and ideal multi-purpose backup protection
Powerful and user-friendly Web browser-based human machine interface (HMI), including input/output (I/O) matrices with visual selection
Application-specific standard configurations reduce relay setup and commissioning time
Support for IEC 61850 editions 1 and 2, including binary GOOSE messaging
Pre-configured solutions for utility distribution and industrial applications
