描述

REF541 饋線終端

REF 541 饋線終端專為中壓網絡中的保護、控制、測量和監控而設計自 2022 年起不再活躍的產品

REF 541 饋線終端可與不同類型的開關設備配合使用，包括單母線、雙母線和雙工系統。

保護功能還支持不同類型的網絡，例如隔離中性網絡、諧振接地網絡和部分接地網絡。應用領域還涵蓋中型三相異步電機以及用于無功補償?shù)牟⒙?lián)電容器組的保護和控制。除了保護、測量、控制、狀態監測和一般功能外，REF 541 饋線終端還提供大量 PLC 功能，可將變電站自動化所需的多種自動化和順序邏輯功能集成到一個系統中單元。

數據通信屬性包括以下通信標準：SPA 總線、LON 總線、IEC 60870-5-103、通過 SPA-ZC 400 的 IEC 61850、通過 SPA-ZC 302 的 Profibus DPV1、DNP 3.0 以及與更高級別設備的 Modbus 通信。此外，LON 通信與 PLC 功能一起最大限度地減少了饋線終端之間的硬接線需求。

范圍
饋線保護繼電器

產品優點
適用于多種不同類型電力網絡的保護功能
可編程邏輯功能 (PLC)
廣泛支持不同的通信協議
光通信實現快速無干擾通信

產品特點
通過傳統測量變壓器或電流傳感器和分壓器測量電壓和電流
各類網絡短路故障定位儀
通過 SPA-ZC 400 適配器支持 IEC 61850 協議
15 個二進制輸入和 12 個輸出繼電器

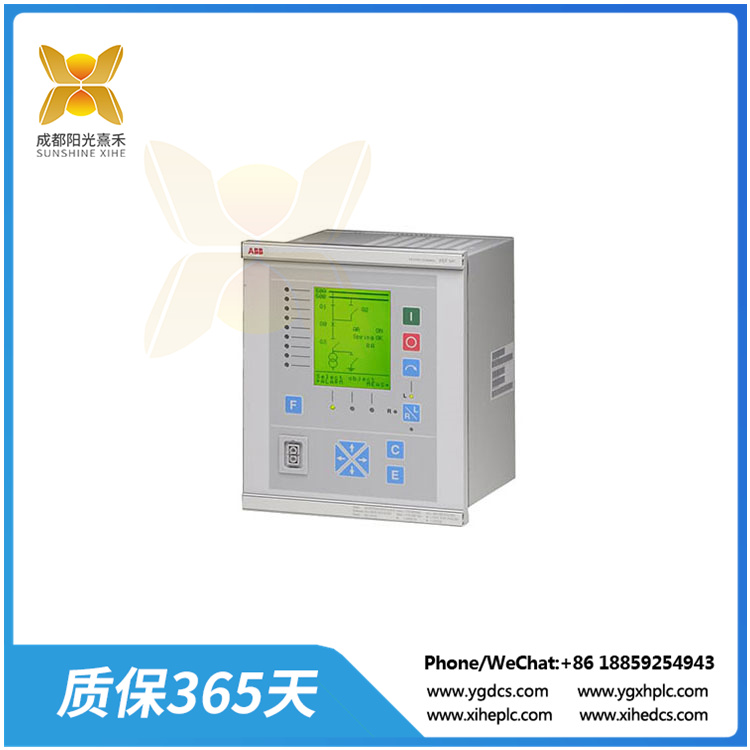

REF541 饋線終端

The REF 541 feeder terminal is designed for protection, control, measurement and monitoring in medium voltage networks Products that are no longer active since 2022

The REF 541 feeder terminal can be used with different types of switchgear, including single bus, double bus and duplex systems.

The protection function also supports different types of networks, such as isolated neutral networks, resonant grounded networks, and partially grounded networks. Applications also cover protection and control of medium-sized three-phase asynchronous motors and shunt capacitor banks for reactive power compensation. In addition to protection, measurement, control, condition monitoring and general functions, the REF 541 feeder terminal offers a large number of PLC functions to integrate multiple automation and sequential logic functions required for substation automation into a single system unit.

Data communication attributes include the following communication standards: SPA bus, LON bus, IEC 60870-5-103, IEC 61850 via SPA-ZC 400, Profibus DPV1 via SPA-ZC 302, DNP 3.0 and Modbus communication with higher level devices. In addition, LON communication, together with PLC functionality, minimizes the need for hard wiring between feeder terminals.

Radius
Feeder protection relay

Product advantage
Protection functions for many different types of power networks
Programmable Logic Function (PLC)
Wide support for different communication protocols
Optical communication enables fast, interference-free communication

Product characteristics
Voltage and current are measured by conventional measuring transformers or current sensors and dividers
All kinds of network short-circuit fault locator
Support for IEC 61850 protocol via SPA-ZC 400 adapter
15 binary input and 12 output relays
