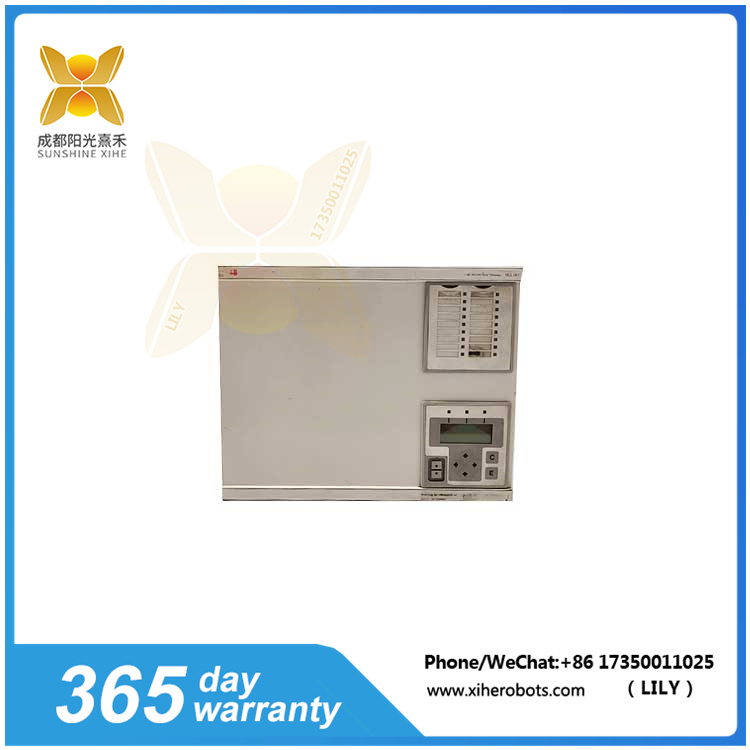

  • 型號：REL561 1MRK002496-AC
  • 類型：線路差動保護終端
  • 制造商：ABB
分類：

描述

產品細節說明：REL561 1MRK002496-AC ABB 線路差動保護終端

  1. 線路差分功能：
    • 相位分離電流差分：能夠測量并評估電流的幅值和相位角，實現精確的電流差分保護。
    • CT飽和檢測器：通過內置的檢測器提高系統的穩定性，防止電流互感器（CT）飽和導致的誤動或拒動。
    • 傳輸延遲補償：能夠連續補償傳輸過程中的延遲，確保兩端數據同步。
    • 數字通信通道內的傳輸跳閘充電電流補償：確保在通信過程中跳閘信號的準確傳輸和執行。
  2. 線路距離功能：
    • 在數字測量元件內同時測量不同的相間阻抗和相地阻抗，為快速可靠的故障檢測提供數據支持。
    • 三區保護：能夠根據不同故障類型和每個距離區域進行單獨測量，確保保護的全面性和準確性。
  3. 附加保護功能：
    • 包括相位過流、剩余電流和電壓功能保護。
    • 斷路器故障保護、熔斷器故障和電流互感器電路監控。
    • 二進制信號的快速跨區通信，支持單極或多極跳閘。
  4. 控制功能：
    • 指令控制：支持自動重合閘和同步檢查，包括相位和通電檢查。
    • 電流差動保護：通過比較進入和離開受保護架空線路或電纜的電流，實現真正的電流差動保護。

REL561 1MRK002496-AC

產品詳情參數 ：REL561 1MRK002496-AC ABB 線路差動保護終端

  • 輸入電壓：100-240V交流，頻率50/60Hz
  • 工作溫度：-20°C至+60°C
  • 使用環境：常溫常壓
  • 結構形式：模塊式
  • 安裝方式：現場安裝
  • LD指令處理器：硬PLC

REL561 1MRK002496-AC ABB? 應用領域：

REL561 1MRK002496-AC是一款功能全面、性能穩定的線路差動保護終端，適用于電力系統中線路的保護和控制

Product details: REL561 1MRK002496-AC ABB line differential protection terminal
Line differential function:
Phase separation current differential: It can measure and evaluate the amplitude and phase angle of the current, achieving accurate current differential protection.
CT saturation detector: By using a built-in detector, the stability of the system is improved to prevent misoperation or refusal of operation caused by current transformer (CT) saturation.
Transmission delay compensation: It can continuously compensate for the delay during the transmission process, ensuring data synchronization at both ends.
Compensation for transmission tripping and charging current in digital communication channels: ensuring accurate transmission and execution of tripping signals during communication.
Line distance function:
Simultaneously measuring different phase to phase and phase to ground impedances within digital measuring components provides data support for fast and reliable fault detection.
Three zone protection: capable of conducting separate measurements based on different types of faults and each distance zone, ensuring the comprehensiveness and accuracy of protection.
Additional protection function:
Including phase overcurrent, residual current, and voltage function protection.
Circuit breaker fault protection, fuse fault, and current transformer circuit monitoring.
Fast cross regional communication of binary signals, supporting single pole or multi pole tripping.
Control function:
Command control: supports automatic reclosing and synchronization checks, including phase and power on checks.
Current differential protection: Real current differential protection is achieved by comparing the current entering and leaving the protected overhead line or cable.
Product details and parameters: REL561 1MRK002496-AC ABB line differential protection terminal
Input voltage: 100-240V AC, frequency 50/60Hz
Working temperature: -20 ° C to+60 ° C
Usage environment: normal temperature and pressure
Structural form: modular
Installation method: on-site installation
LD instruction processor: hard PLC

REL561 1MRK002496-AC ABB application areas:

REL561 1MRK002496-AC is a comprehensive and stable differential protection terminal for power lines, suitable for protection and control in power systems
