REV615 電容器組保護測控裝置

REV615 電容器組保護測控裝置

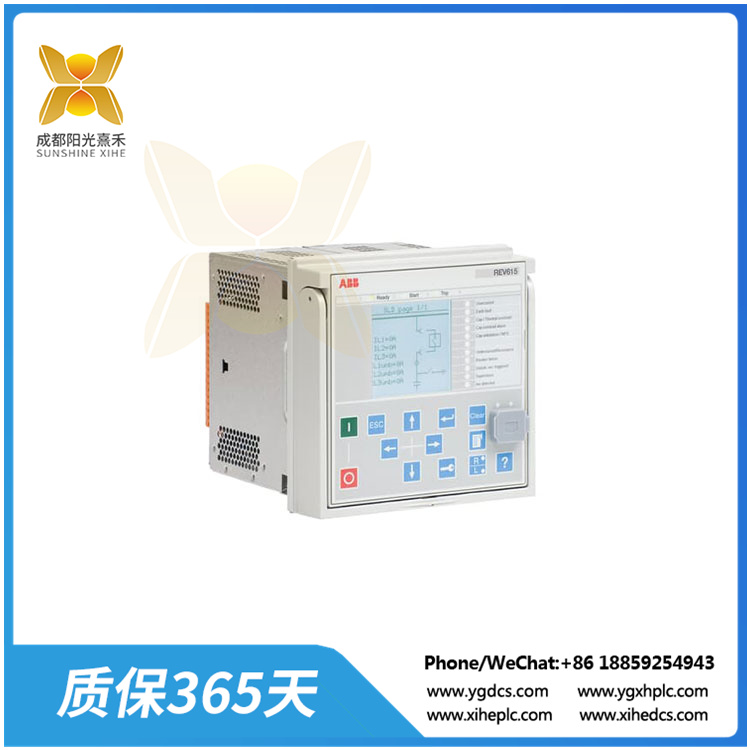

REV615 電容器組保護和控制裝置的設計方向是作為 H 橋、雙 Y 型和單 Y 型電容器組和饋線電纜的主保護。另外，REV615 可以用來保護諧波濾波電路，沒有顯著諧波分量是比第 11 次高。REV615 有兩種標準配置可供選擇，其中一種已經被預配置為H橋連接電容器組，保護三相不平衡，另一種被預配置為雙Y型連接電容器組，保護單相電流不平衡。

分類： ,

描述

REV615 電容器組保護測控裝置

為電容器組提供結構緊湊且多功能的解決方案

REV615 電容器組保護和控制裝置，在公用事業和工業配電系統中用于保護、控制、測量和監視無功補償電容器組。

REV615 電容器組保護和控制裝置的設計方向是作為 H 橋、雙 Y 型和單 Y 型電容器組和饋線電纜的主保護。另外，REV615 可以用來保護諧波濾波電路，沒有顯著諧波分量是比第 11 次高。REV615 有兩種標準配置可供選擇，其中一種已經被預配置為H橋連接電容器組，保護三相不平衡，另一種被預配置為雙Y型連接電容器組，保護單相電流不平衡。

REV615 電容器組保護和控制裝置完全支持 IEC 61850 通信標準和變電站自動化設備互操作性，其中 IEC 61850 通信標準包含 IEC 61850-9-2 LE 和第 2 版，在擴展互操作性方面提供了實質性好處。該裝置還支持并行冗余協議（PRP）、高可用性無縫冗余協議（HSR）、DNP3、IEC 60870-5-103 和 Modbus??規約。通過使用 SPA-ZC 302 規約適配器，裝置支持 Profibus DPV1 協議。

REV615 是 ABB 的 Relion??產品家族中 615 繼電保護測控裝置產品系列的成員。

主要優勢

  • 適用于 H 橋接，雙Y連接和單Y連接的電容器組和具有諧波濾波回路的饋線
  • 提供全面的保護和控制功能
  • 具有預配置好的的標準配置，亦可通過功能配置快速簡便地滿足不同的應用需求
  • 快速安裝和測試的可插拔式設計
  • 帶可編輯單線圖的大液晶顯示，可通過本地或基于 Web 瀏覽器的易于使用的 HMI 來訪問
  • 周到的產品全生命周期服務

主要特性

  • 電容器過負荷保護、不平衡保護、無方向過流保護、方向接地保護、電壓和頻率保護以及測量功能
  • 電容器組電流不平衡保護和基于電流的電容器組開關諧振保護
  • 可選的弧光保護和高速出口
  • 支持IEC61850第一版和第二版，包括冗余 HSR 和 RPR，GOOSE 和 IEC61850-9-2 LE
  • 支持 IEEE 1588 v2 高精密時間協議
  • 支持 Modbus、DNP3，IEC 60870-5-103 通信協議

REV615 電容器組保護測控裝置

A compact and versatile solution for capacitor banks

REV615 Capacitor Bank protection and control devices are used to protect, control, measure and monitor reactive power compensation capacitor banks in utility and industrial distribution systems.

The REV615 capacitor bank protection and control device is designed as the main protection for H-bridge, double Y and single Y capacitor banks and feeder cables. In addition, REV615 can be used to protect harmonic filtering circuits where no significant harmonic component is higher than the 11th. The REV615 is available in two standard configurations, one of which has been pre-configured as a H-bridge-connected capacitor bank to protect against three-phase unbalance, and the other as a double-Y-connected capacitor bank to protect against single-phase current unbalance.

REV615 capacitor bank protection and control devices fully support the IEC 61850 communication standard, which contains IEC 61850-9-2 LE and Edition 2, and substation automation equipment interoperability, providing substantial benefits in terms of extended interoperability. The device also supports Parallel Redundancy Protocol (PRP), High Availability Seamless Redundancy Protocol (HSR), DNP3, IEC 60870-5-103, and Modbus? protocols. By using the SPA-ZC 302 protocol adapter, the device supports the Profibus DPV1 protocol.

REV615 is a member of ABB’s 615 relay protection measurement and control device family in the Relion? product family.

Major advantage
Suitable for H bridge, double Y connection and single Y connection capacitor banks and feeders with harmonic filtering loops
Provides comprehensive protection and control functions
With pre-configured standard configurations, you can also quickly and easily meet different application requirements through functional configuration
Pluggable design for quick installation and testing
Large LCD display with editable single line charts, accessible locally or via an easy-to-use HMI based Web browser
Thoughtful product life cycle service

Main characteristics
Capacitor overload protection, unbalance protection, directional overcurrent protection, directional grounding protection, voltage and frequency protection and measurement functions
Capacitor bank current unbalance protection and capacitor bank switching resonance protection based on current
Optional arc protection and high speed exit
IEC61850 1st and 2nd editions are supported, including redundant HSR and RPR, GOOSE and IEC61850-9-2 LE
Support IEEE 1588 v2 high precision time protocol
Supports Modbus, DNP3, and IEC 60870-5-103 communication protocols
