描述

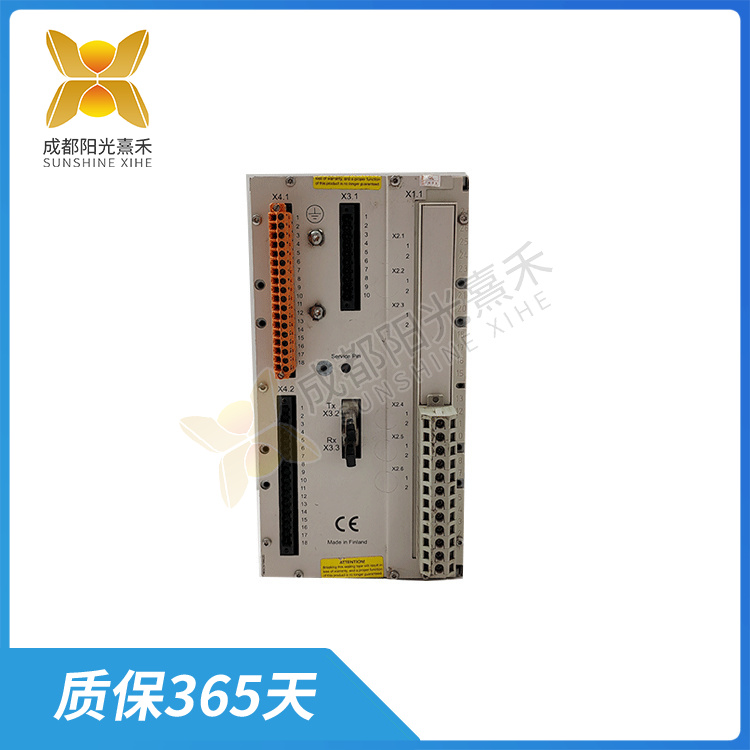

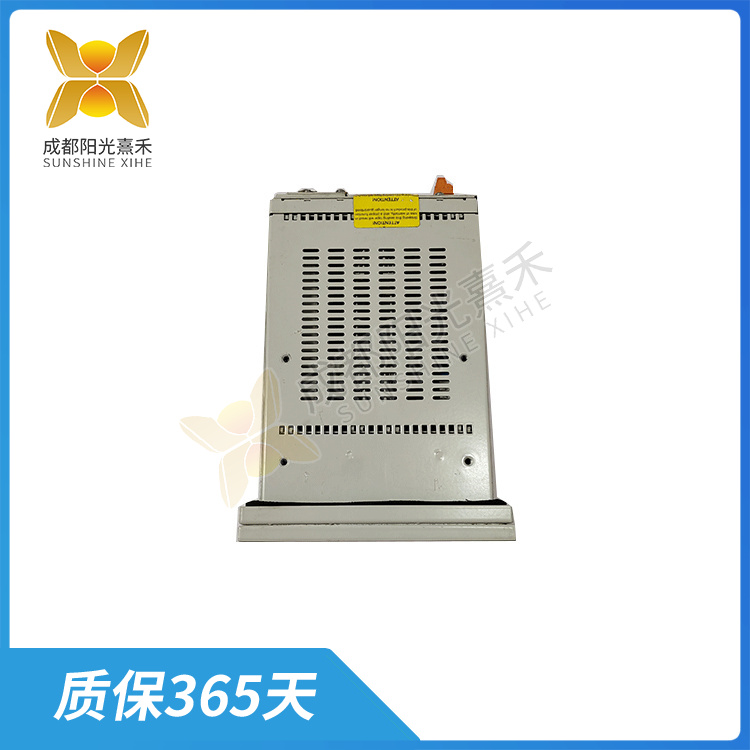

REX521BBHGLB01C 電動機保護繼電器

ABB的REX521系列中的REX521BBHGLB01C是一款高性能、高可靠性的饋線和電動機保護繼電器。這款產品集合了保護、測量、錄波、監視和控制功能，適用于中性點不接地系統、中性點直接接地系統、小電阻接地系統和諧振接地系統中的中壓饋線及大中型三相交流電動機的保護。

具體來說，REX521BBHGLB01C的保護功能包括相間過流、接地、過電壓、低電壓、電機各種保護及頻率保護元件等。此外，它還具有電流、電壓、頻率、有功和無功功率、功率因數、電能等測量功能，以及斷路器觸頭電器磨損監測、跳閘回路監視等功能。

REX521BBHGLB01C內部集成了一個故障錄波模塊，有五個模擬量輸入通道和多達十六個開關量通道，以COMTRADE格式完整記錄故障狀態。同時，它還具有自診斷功能，可以確定繼電器的完好狀況，如果繼電器不能正常工作，它可以在繼電器無法正常工作之前發出告警信號，同時閉鎖所有保護功能和輸出接點。

這款保護繼電器具有兩個獨立的通訊端口，RS485接口可以支持MODBUS RTU/ASCII、DNP 3.0及SPA協議，通訊波特率最大可至19.2Kpbs。光纖口支持IEC60870-5-103、MODBUS RTU/ASCII、DNP3.0、LON及SPA協議。這些端口可以方便用戶簡易快速地接入各類廠家的后臺系統。

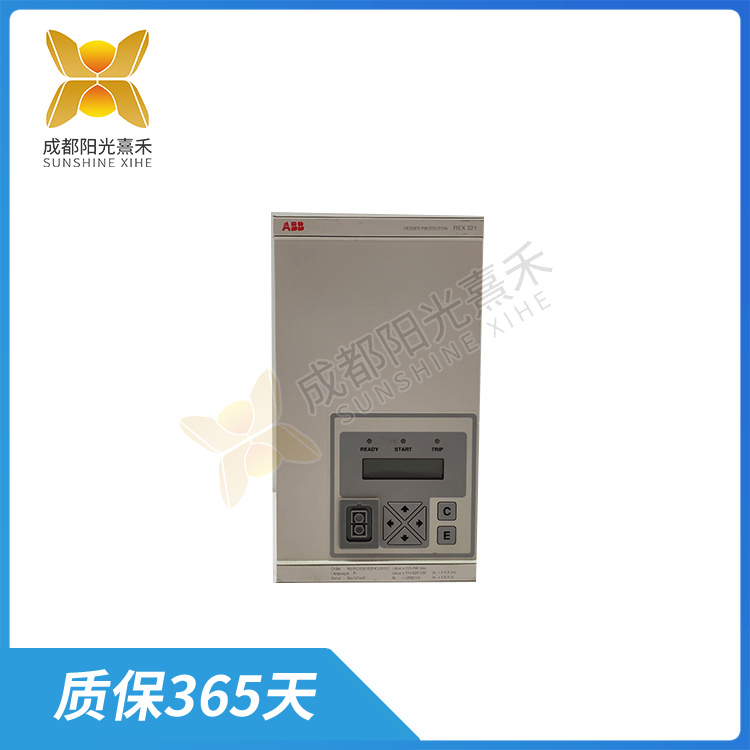

REX521BBHGLB01C的人機界面包括4*8字符液晶顯示及方向?qū)Ш芥I盤，三個LED狀態指示和8個自由定義的指示燈。此外，這款保護繼電器還專門為中國市場推出了具有全中文操作界面的配置方案，可分別適用于饋線和電動機保護的需要。

REX521BBHGLB01C 電動機保護繼電器

The REX521BBHGLB01C in ABB’s REX521 family is a high-performance, highly reliable feeder and motor protection relay. This product combines protection, measurement, wave recording, monitoring and control functions for neutral ungrounded systems, neutral direct grounding systems, small resistance grounding systems and resonant grounding systems of medium voltage feeders and large and medium-sized three-phase AC motor protection.

Specifically, the protection functions of REX521BBHGLB01C include phase-to-phase overcurrent, grounding, overvoltage, low voltage, various motor protection and frequency protection elements. In addition, it also has current, voltage, frequency, active and reactive power, power factor, electrical energy and other measurement functions, as well as circuit breaker contact electrical wear monitoring, tripping circuit monitoring and other functions.

The REX521BBHGLB01C integrates a fault recording module with five analog input channels and up to sixteen switching channels to record the fault status completely in COMTRADE format. At the same time, it also has a self-diagnostic function, can determine the good condition of the relay, if the relay does not work properly, it can send an alarm signal before the relay does not work properly, while locking all protection functions and output contacts.

This protective relay has two independent communication ports, RS485 interface can support MODBUS RTU/ASCII, DNP 3.0 and SPA protocols, communication baud rate up to 19.2Kpbs. The fiber port supports IEC60870-5-103, MODBUS RTU/ASCII, DNP3.0, LON, and SPA protocols. These ports can facilitate users to access the background system of various manufacturers easily and quickly.

The human-machine interface of the REX521BBHGLB01C includes a 4*8 character LCD display and directional navigation keyboard, three LED status indicators and eight freely defined indicators. In addition, this protective relay has been specially introduced for the Chinese market with a fully Chinese operating interface configuration scheme, which can be adapted to the needs of feeder and motor protection respectively.
